Our range of ThunderStorm - Subwoofers delivers adequate and precise control over the bass frequencies in your room, without any low-port noise distortion since all subwoofers have a passive radiator. All subwoofers feature the powerful accurate and low distortion sound. Your system will sound as a whole, not just a sum of parts.

Every ThunderStorm subwoofer has detailed controls like switchable satellite filters (full range and 80Hz), phase switch controls (0°, 180°). and variable subwoofer filter frequencies (60....140Hz) to let you tailor and adjust your ThunderStorm to your specific room.

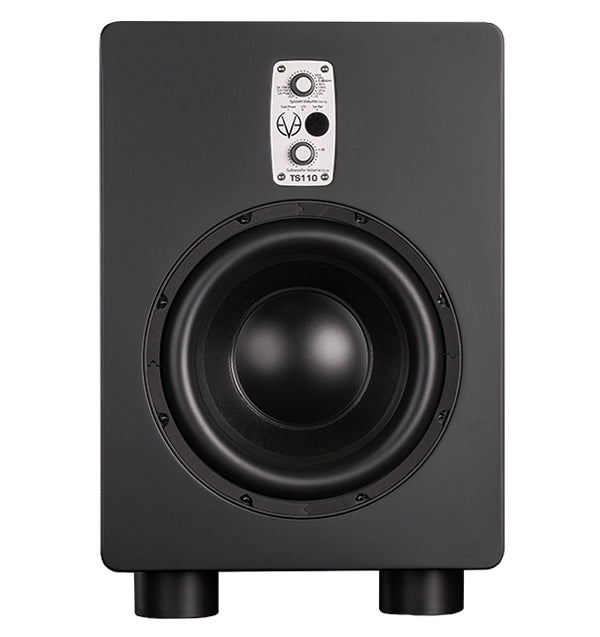

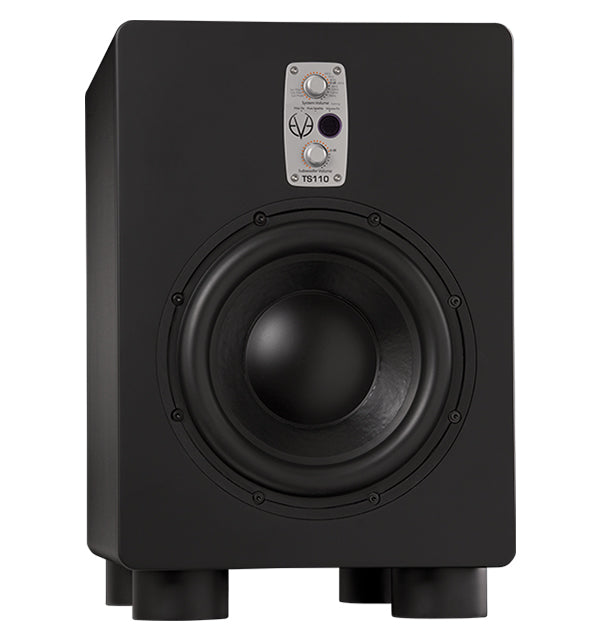

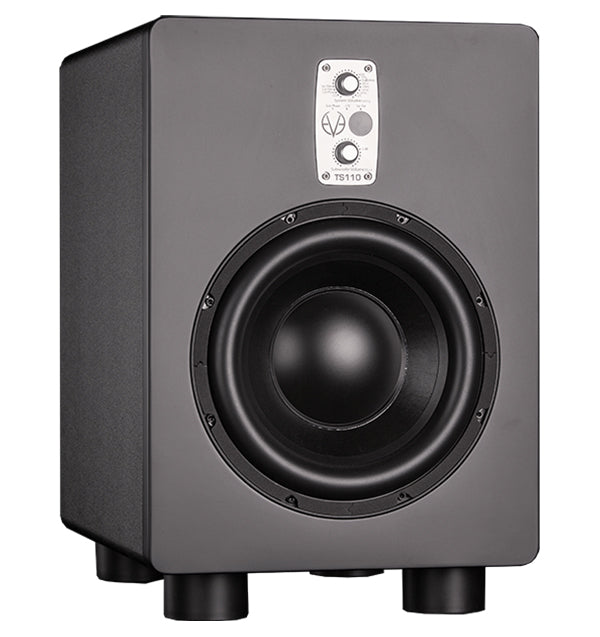

The TS110 model features a very efficient 400W PWM amplifier that drives a proprietary 10" woofer. This guarantees a frequency response of down to 28Hz, up to 300Hz, for a maximum output power of 108 dB (SPL @ 1m) with plenty of power for most needs.

All in all, the ThunderStorm subwoofers will make any system sound better and more complete.

As with every other EVE Audio subwoofer, you get balanced XLR In- and Outputs (Stereo In and Out, LFE In, LFE/Sub Out) for greater convenience.

One thing worthy of mentioning is that the DSP section, which uses a high resolution BurrBrown converter, only affects the bass driver operation. The signal path to the satellite speakers is kept purely analog, with no A/D/A conversions whatsoever. That's why the "Pure Satellite" function, when activated, completely bypasses the subwoofer and DSP filter section, and will only allow you to adjust your satellite's volume.

The included remote control will let you adjust not only the subwoofer's volume but also the complete stereo system's volume while sitting comfortably in your sweet spot.

A small but professional studio based in the heart of Taipei, Taiwan.

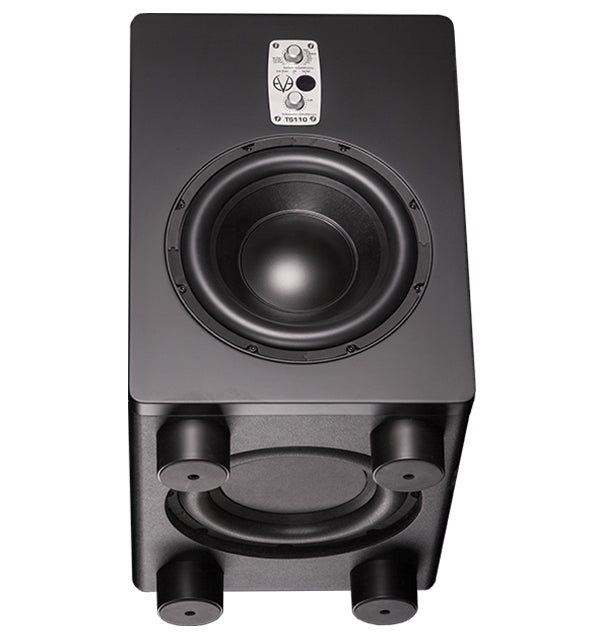

The passive radiator

The particularity of our extremely powerful and accurate subwoofer resides in the passive radiator used that replaces the common bass reflex tube. With this design all audible noise due to air turbulences disappear completely.

Unwanted disturbing pipe resonances (at lambda/2 and multiples) are eliminated, which are unavoidable when applying the principle of a two-sided pipe opening (bass reflex port). The suspension of the passive radiator has a restoring force underneath its tuning frequency and reduces inaudible excursions in the subsonic range. This in turn results in reduced intermodulation distortion in the working range.

The passive radiator allows a particularly low tuning or lower cut-off frequency in a very compact cabinet.

The Air Motion Transformer

Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.

Technical Specs

All facts and figures in detail

Dimensions

330x485x430

Width x Hight x Depth in mm

Frequency range

28 - 300 Hz

-3 dB at 1 m distance

Sound pressure level

108 dB

Max. SPL per pair

Output power

400 W

Output power per speaker

Woofer size

10"

Diameter

Passive radiator

10"

Diameter

General

Woofer: 10"

Output power woofer: 400 W

Protection limiter: Yes

Weight: 19,6 kg (43.2 lb)

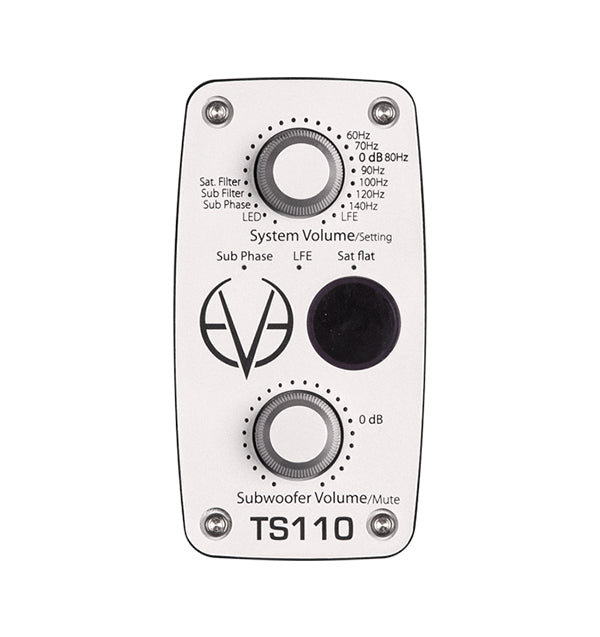

Settings

System volume: - ∞ to + 6 dB

Subwoofer volume: - ∞ to + 6 dB

Adjustable LED brightness: Yes

Level-lock dip switch: Yes

Filter-lock dip switch: Yes

Input level dip switch: +8 dBu / +22 dBu

Phase inversion: 0° / 180°

Switchable Satellite filter: flat / 80 Hz

Variable Subwoofer filter: 60 to 140 Hz + LFE

Remote control: Included

Connectors (10k impedance)

RCA in

XLR in left

XLR in right

XLR in LFE

XLR out satellite left

XLR in out satellite right

XLR out LFE

Power consumption

Standby: < 1 W

Maximum: 410 VA

Free-field frequency response (1/6 oct.)

LFE (red) + different filter settings down to 60Hz
