For large recording and mastering studios, film and television post-production facilities, cinema applications and in-wall installations, nothing beats our main monitors SC3010 and SC3012.

The SC3010 systems feature a very powerful amplifier array, with one amplifier per driver. All drivers, and especially our proprietary AMT RS6 tweeter, are developed to deliver high sound pressure levels, extremely low distortion and an optimized directivity. Together with the ultra-stiff plywood front plate and a special inner construction to lower resonances, they offer a smooth directivity, highly defined mids, pristine high frequencies and a powerful and tight low end.

The SC3010 systems are also built with in-wall installations in mind. In this case, simply adjust the filter controls to "inwall". A set of high-density foam is provided to close the backfiring bass ports.

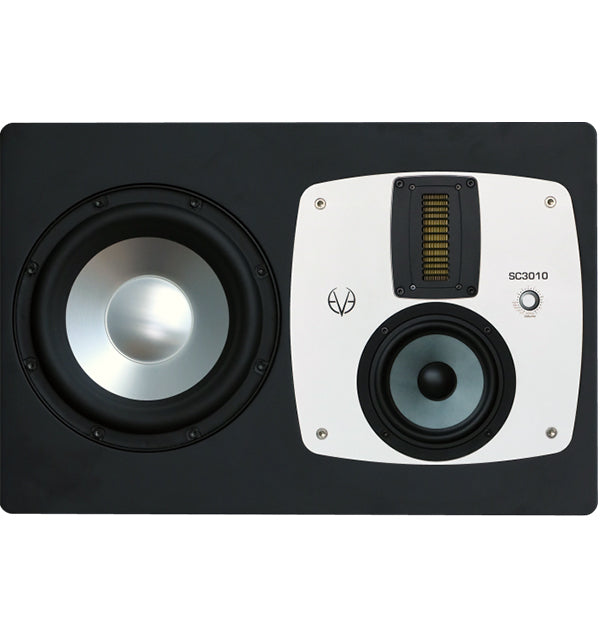

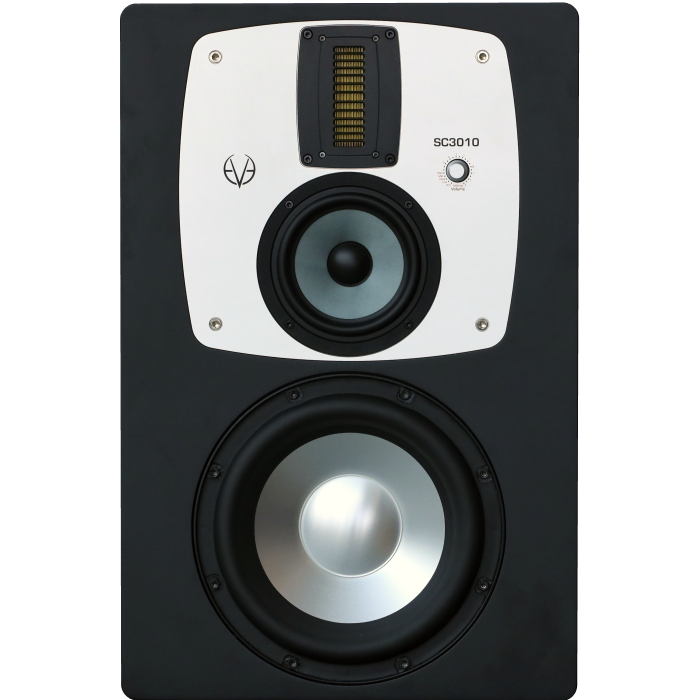

The silver module housing the midrange driver and our AMT RS6 tweeter can be rotated by 90 degrees allowing you to set up the speakers either horizontally or vertically.

The SC3010 is the smallest of the biggest in our range of main monitors and able to reproduce the entire audible frequency range with an ultra-low level of distortion.

One 10" double coated low resonance metal diaphragm bass woofer, with a long excursion, provides for an extraordinarily clean low frequency reproduction down to 30 Hz (-3 dB) and easily reproduces all audio content, even at higher than usual SPL's.

The SC3010 also features our newly developed 5" midrange unit. Its glass fibre layered Rohacel™ sandwich diaphragm delivers a clear and detailed midrange frequency reproduction. Both the 10" SilverCone woofer and 5" SilverCone midrange are equipped with our very low distortion copper cap magnet system.

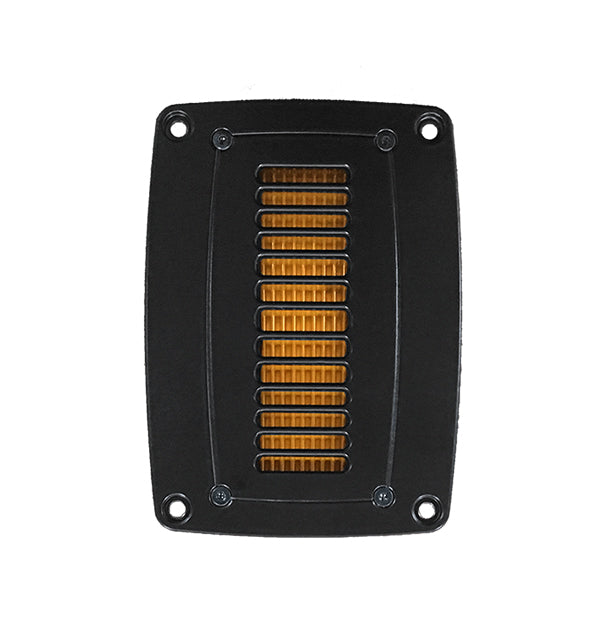

Exclusive to SC3010 – and its larger sibling SC3012 – is our large Air Motion Transformer AMT RS6. This AMT is 2.5 times bigger than the RS1, RS2 and RS3 Air Motion Transformer units, and it is a crucial part of the system as it helps to couple the middle and high frequencies with great precision. Our team was able to engineer the RS6 to set its crossover frequency at 1800 Hz, a very important frequency for human hearing and subsequently, music production.

The W&W studio feature a custom wrapped pair of SC3010 and a TS110 fitting them in the spectacular all-white room.

Judge your mixes more precisely

Each driver is provided with its own separate PWM amplifier that is able to deliver a short-term output power of 250 W per tweeter and midrange channel and 800 W for the low-end driver. With a maximum output level of 114 dB (SPL @ 1 m), you will definitely be able to judge your mixes precisely, whatever their final intended output level is.

The SC3010 is a three-way system that combines powerful bass reproduction with a very transparent and present mid-range and crystal clear high frequency reproduction. Make no mistakes: whether you're producing your new hip-hop hit or mastering the contemporary works, the SC3010's will be there for you and they will tell it like it is. Bad mixes no longer have a place to hide.

As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.



The Air Motion Transformer

Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.

Technical Specs

All facts and figures in detail

Dimensions

380x580x440

Width x Hight x Depth in mm

Frequency range

29 Hz - 21 kHz

-3 dB at 1 m distance

Sound pressure level

126 dB

Max. SPL per pair

Output power

1300 W

Output power per speaker

Woofer size

10"

Diameter

Cross-over frequency

240 & 1800 Hz

Cross-over between drivers

General

Tweeter: AMT RS6

Output power tweeter: 250 W

Mid-driver: 5"

Output power mid-driver: 250 W

Woofer: 10"

Output power woofer: 800 W

Protection limiter: Yes

Weight: 37 kg (81.6 lb)

Settings

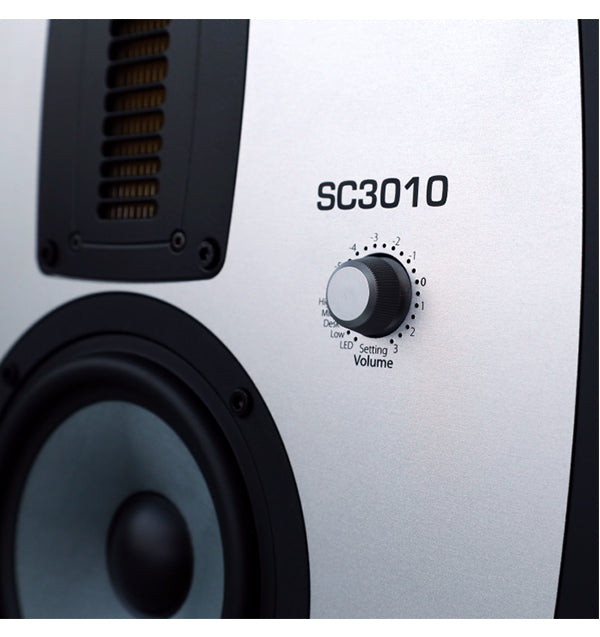

Volume: - ∞ to + 6 dB

High-shelf filter (-5 dB to +3 dB): > 3 kHz

Mid EQ (-3 dB to +3 dB): 1 kHz

Desk filter cut (-5 dB to 0 dB): 160 Hz

Desk filter boost (0 dB to +3 dB): 80 Hz

Low-shelf filter (-5 dB to +3 dB): < 300 Hz

Adjustable LED brightness: Yes

Level-lock dip switch: Yes

Filter-lock dip switch: Yes

Input level dip switch: +7 dBu / +22 dBu

Connectors (10k impedance)

RCA in

XLR in

Power consumption

Standby : < 1 W

Maximum:1000 VA

Free-field frequency response (1/6 oct.)

Top = Vertical configuration / Bottom = Horizontal configuration / Red = 0° / Green = 30° horizontal off-axis

Distortion

Orange = 2nd / Green = 3rd vs frequency response (red)

Polar Pattern (1m)

Top = Vertical configuration / Bottom = Horizontal configuration / Red = 200Hz / Green = 1kHz / Blue = 5kHz
