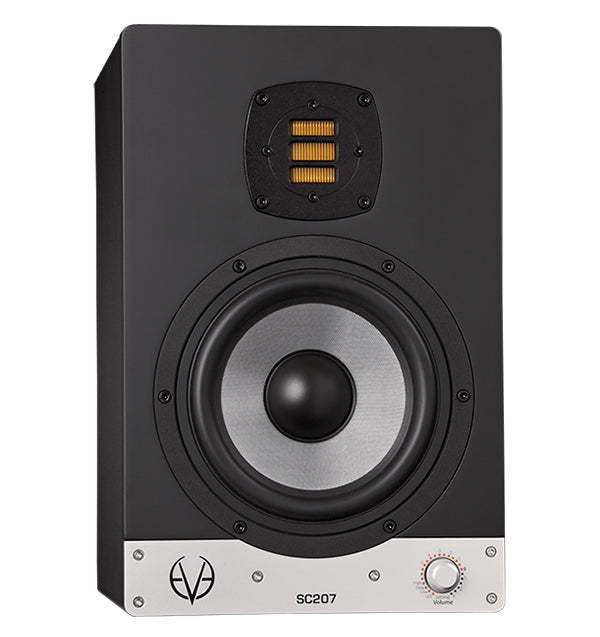

The SC207 is our mid-range two-way monitor speaker and its size and form factor make them appropriate for a lot of different rooms.

The nearfield monitor has great power efficiency that will let you clearly examine what's happening in your music. The modest and elegant size of the SC207, along with its quality precision, will make it great in your setup without overwhelming your working area.

With the SC207, you will get an extended bass frequency response (down to 44 Hz), courtesy of our 6.5" SilverCone honeycomb structured woofer and driven by a sophisticated low distortion copper cap magnet system with our 1.5" voice coil. The result is a very tight and dynamic bass, along with the usual greater linear excursion.

A PWM amplifier, with protection-limiting and capable of delivering a short-term output power of 100W, guarantees that the SC207 will never run out of juice. And with a maximum output level of 106 dB (SPL @ 1m), you can be sure that there is plenty of power to make critical and precise judgements over your mixes.

The SC207 is also the first EVE model monitor that uses our proprietary AMT (Air Motion Transformer) RS2. That means it can deliver a higher output level that is due to a bigger magnet system inside.

As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

The New Edge Studio in the heart of Bollywood in Mumbai features a 7.1.4 Dolby Atmos setup equipped with EVE monitors.

DSP and SMART-knob

All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud.

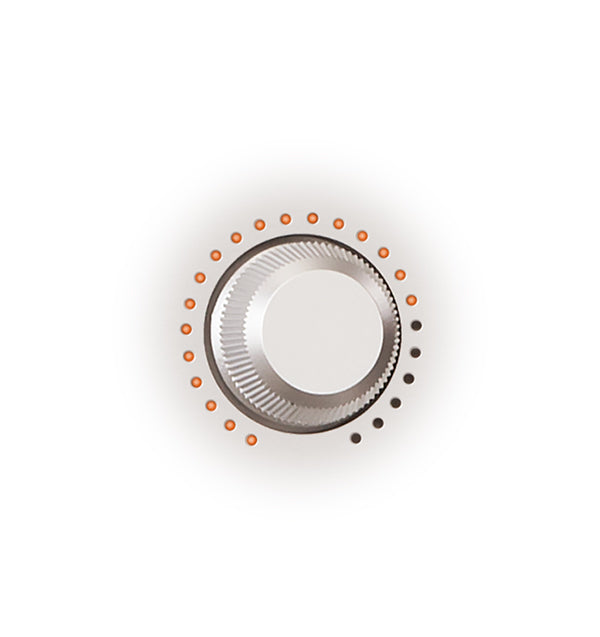

Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the leveling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications.

High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.

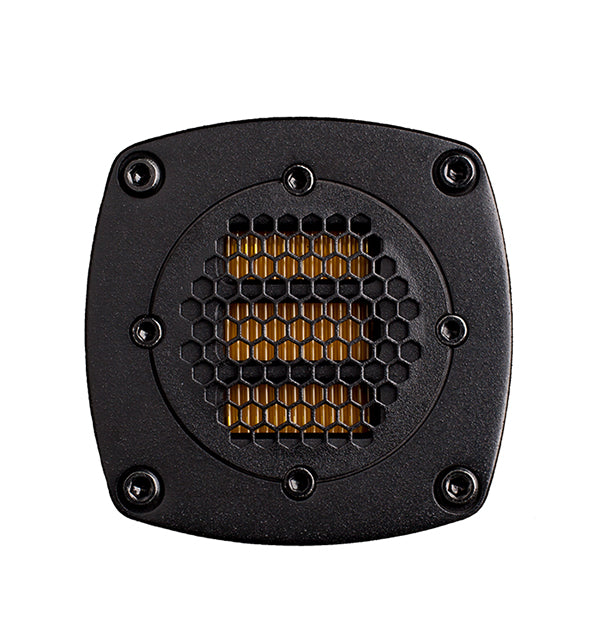

The Air Motion Transformer

Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.

Technical Specs

All facts and figures in detail

Dimensions

215x330x280

Width x Hight x Depth in mm

Frequency range

44 Hz - 21 kHz

-3 dB at 1 m distance

Sound pressure level

116 dB

Max. SPL per pair

Output power

150 W

Output power per speaker

Woofer size

6,5"

Diameter

Cross-over frequency

2800 Hz

Cross-over between drivers

General

Tweeter: AMT RS2

Output power tweeter: 50 W

Woofer: 6,5"

Output power woofer: 100 W

Protection limiter: Yes

Weight: 8 kg (17.6 lb)

Settings

Volume: - ∞ to + 6 dB

High-shelf filter (-5 dB to +3 dB): > 3 kHz

Desk filter cut (-5 dB to 0 dB): 160 Hz

Desk filter boost (0 dB to +3 dB): 80 Hz

Low-shelf filter (-5 dB to +3 dB): < 300 Hz

Adjustable LED brightness: Yes

Level-lock dip switch: Yes

Filter-lock dip switch: Yes

Connectors (10k impedance)

RCA in

XLR in

Power consumption

Standby: < 1 W

Maximum: 120 VA

Free-field frequency response (1/6 oct.)

Red = 0° / Green = 30° horizontal off-axis

Distortion

Orange = 2nd / Green = 3rd vs frequency response (red)

Polar Pattern (1m)

Red = 200Hz / Green = 1kHz / Blue = 5kHz
