The SC204 are the smallest speakers in our studio monitors line. If you are working at home, or in a music or post-production studio, it serves as a second pair of ears.

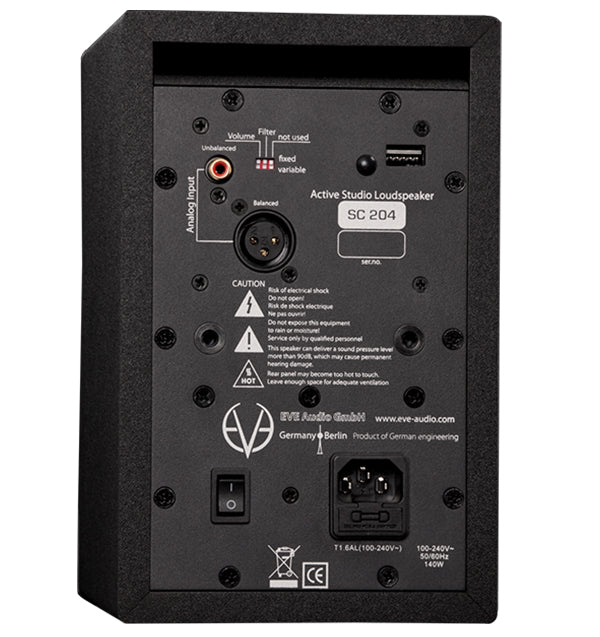

This nearfield monitor also have the convenience of threaded screw inserts on the bottom and the back. That way, you can mount your SC204 on a regular microphone or speaker stand, or use the back plate for different wall mounting options.

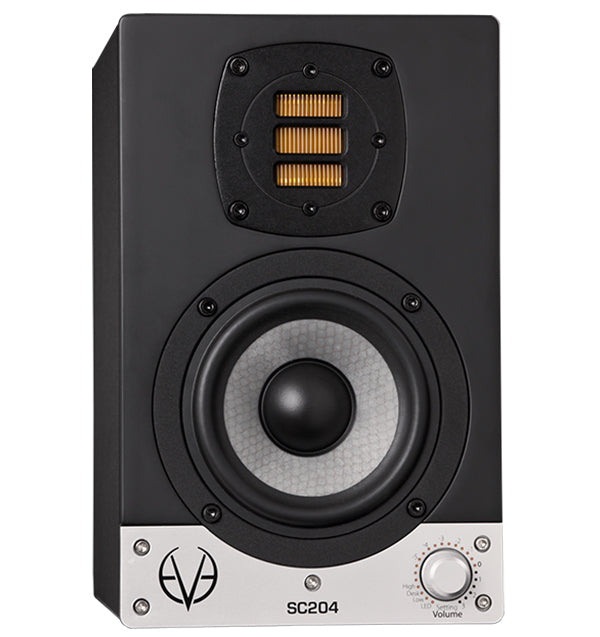

The SC204 uses a 4" SilverCone woofer with honeycomb structured diaphragm, driven by a sophisticated low distortion copper cap magnet system with a 1" voice coil responsible for creating a greater linear excursion. This produces a bigger dynamic than one would assume in a monitor of such small proportions. As a result, in addition to the unsurpassed audio transparency of our proprietary AMT tweeter and PWM amplifier combination, this SC204 will surprise you with a very powerful, tight and precise low end.

Adrian Tucker is an entrepreneur known for his work as a producer, mastering engineer, educator and his Dolby Atmos sound system.

The Air Motion Transformer

Our AMT tweeter is our own proprietary technology that follows the rule of no off-the-shelf components in order to achieve superior results. The preciseness and detail of the high frequency range of EVE monitors, coupled with the general tightness of the bass and mid-range, make the SC204 a superb speaker that is easily used on the road (due to its reduced size) or as a second pair of speakers for your main setup.

The Air Motion Transformer

Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.

Technical Specs

All facts and figures in detail

Dimensions

145x230x195

Width x Hight x Depth in mm

Frequency range

64 Hz - 21 kHz

-3 dB at 1 m distance

Sound pressure level

106 dB

Max. SPL per pair

Output power

100 W

Output power per speaker

Woofer size

4"

Diameter

Cross-over frequency

3000 Hz

Cross-over between drivers

General

Tweeter: AMT RS1

Output power tweeter: 50 W

Woofer: 4"

Output power woofer: 50 W

Protection limiter: Yes

Weight: 3,8 kg (8.4 lb)

Settings

Volume: - ∞ to + 6 dB

High-shelf filter (-5 dB to +3 dB): > 3 kHz

Desk filter cut (-5 dB to 0 dB): 160 Hz

Desk filter boost (0 dB to +3 dB): 80 Hz

Low-shelf filter (-5 dB to +3 dB): < 300 Hz

Adjustable LED brightness: Yes

Level-lock dip switch: Yes

Filter-lock dip switch: Yes

Connectors (10k impedance)

RCA in

XLR in

Power consumption

Standby: < 1 W

Maximum: 70 VA

Free-field frequency response (1/6 oct.)

Red = 0° / Green = 30° horizontal off-axis

Distortion

Orange = 2nd / Green = 3rd vs frequency response (red)

Polar Pattern (1m)

Red = 200Hz / Green = 1kHz / Blue = 5kHz
