Tannoy

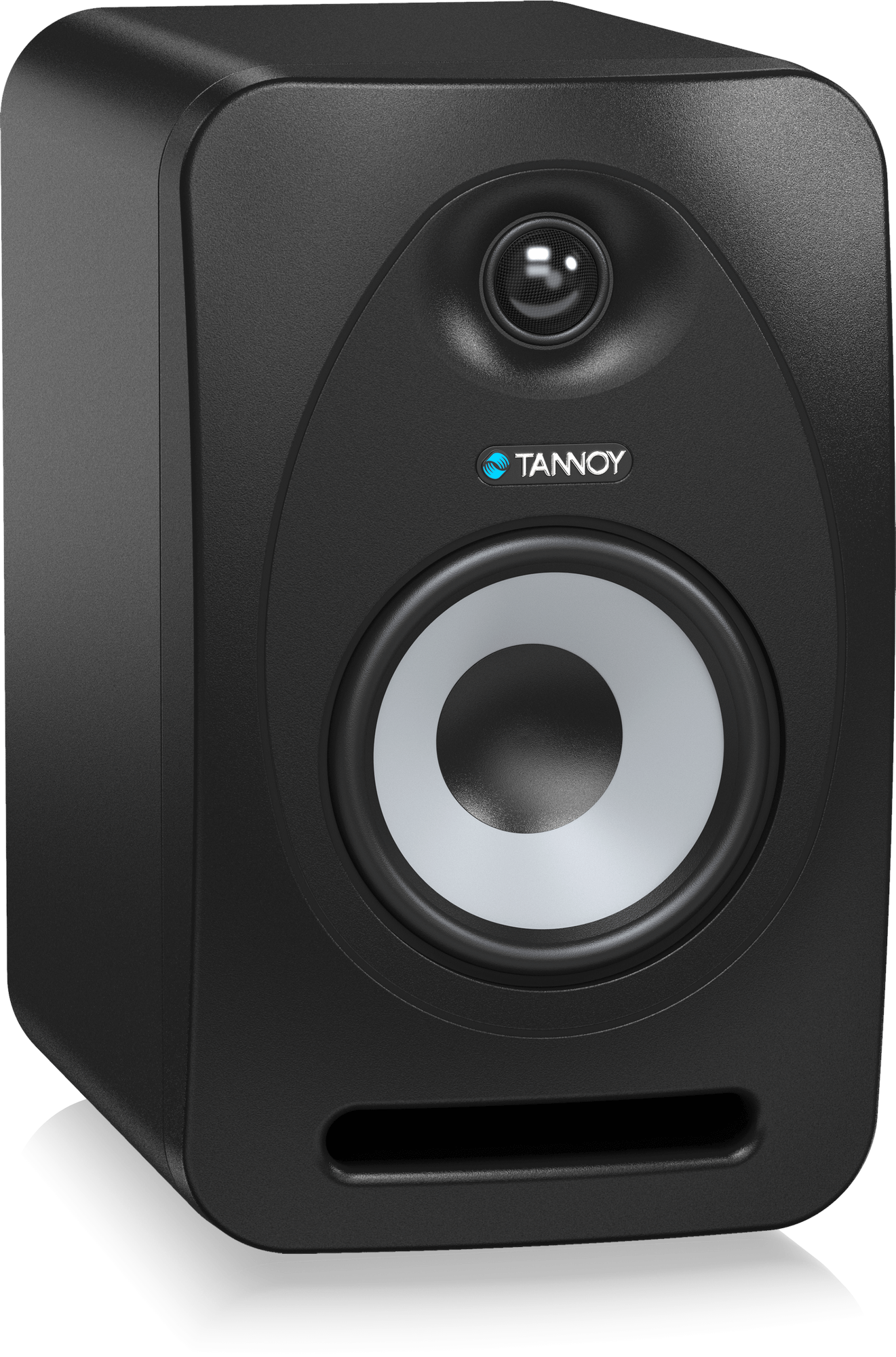

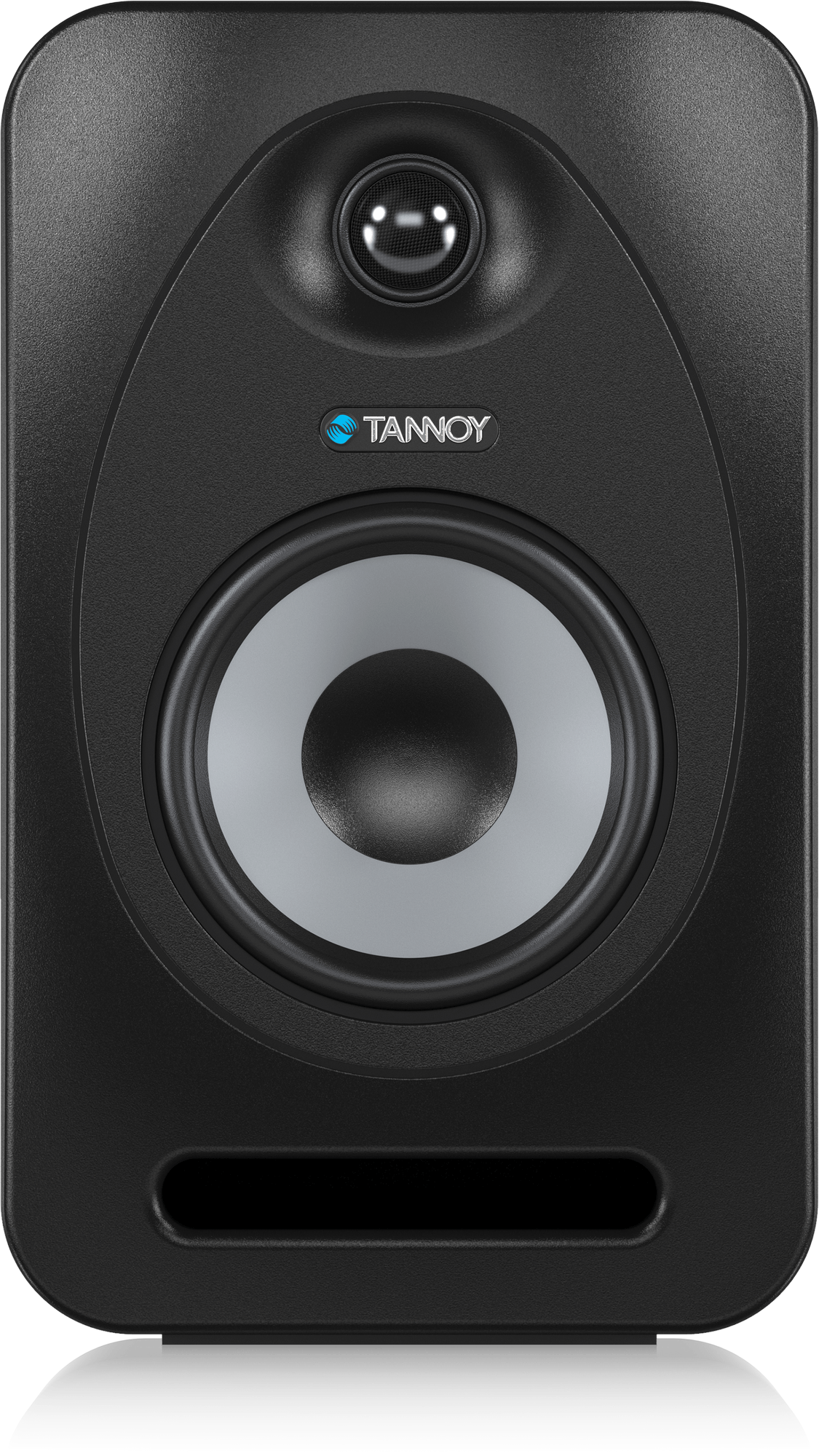

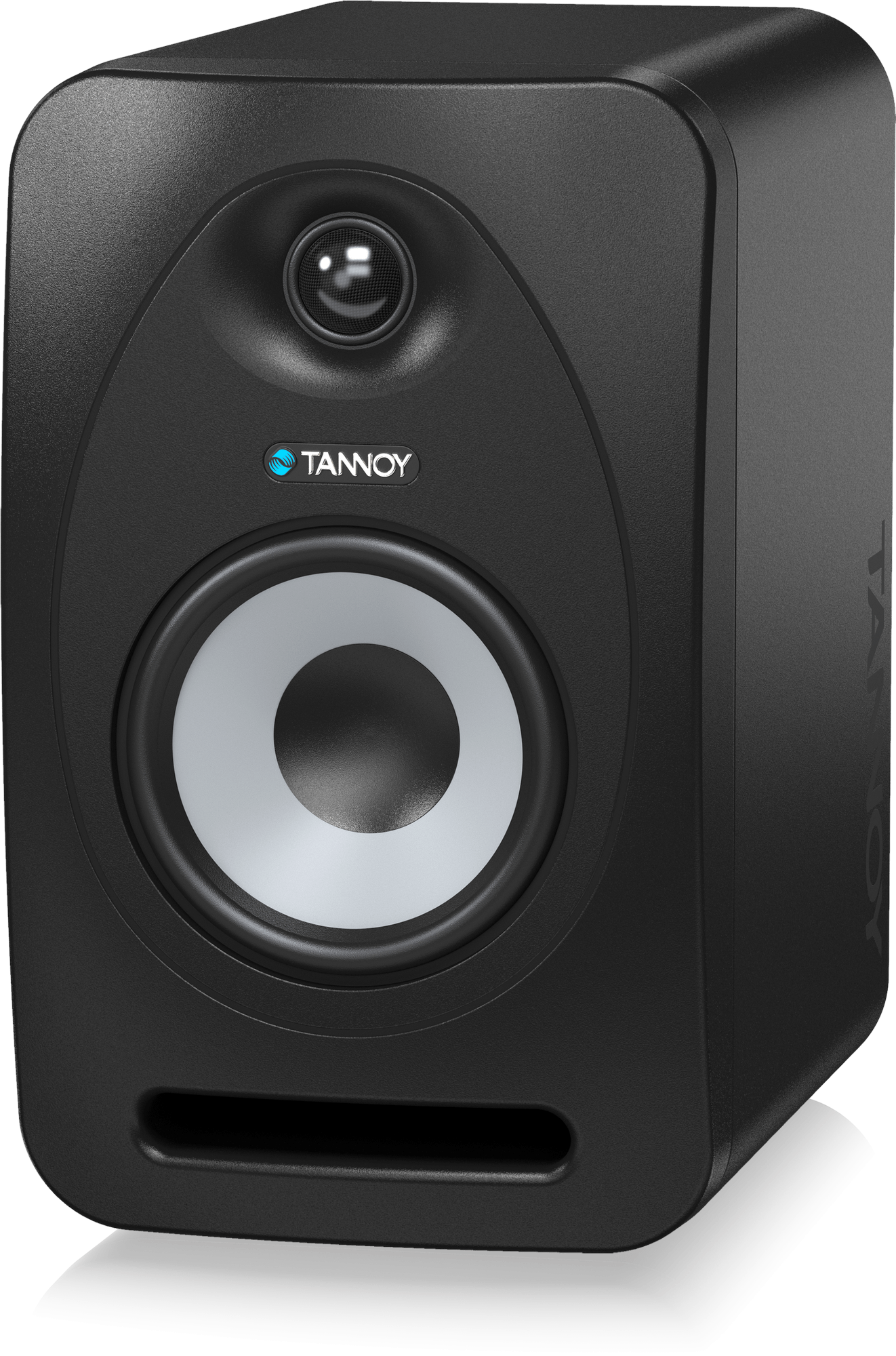

Tannoy Reveal 402 4-inch Powered Studio Monitor - Pair

Tannoy Reveal 402 4-inch Powered Studio Monitor - Pair

Regular price Rs. 32,648.00
Regular price Rs. 37,648.00 Sale price Rs. 32,648.00
Sale Sold out
Tax included.

REVEAL 402

70W 4\ Bi-Amplified Ultra-compact Studio Reference Monitor with Tuned Front-Firing Bass Port"
Product Features
  • Reference monitor ideal for desktop recording or secondary monitoring in personal studios

  • 70 Watt custom bi-amped design delivers impressive sound from an ultra-compact enclosure

  • 4" custom high-efficiency low frequency driver for extended bass response

  • ¾" soft-dome 'Poke-Resistant' tweeter for detailed high frequency reproduction

  • Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance

  • Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix

  • Rubberized foam base provides acoustic isolation

  • Adjustable equalization to match your listening environment

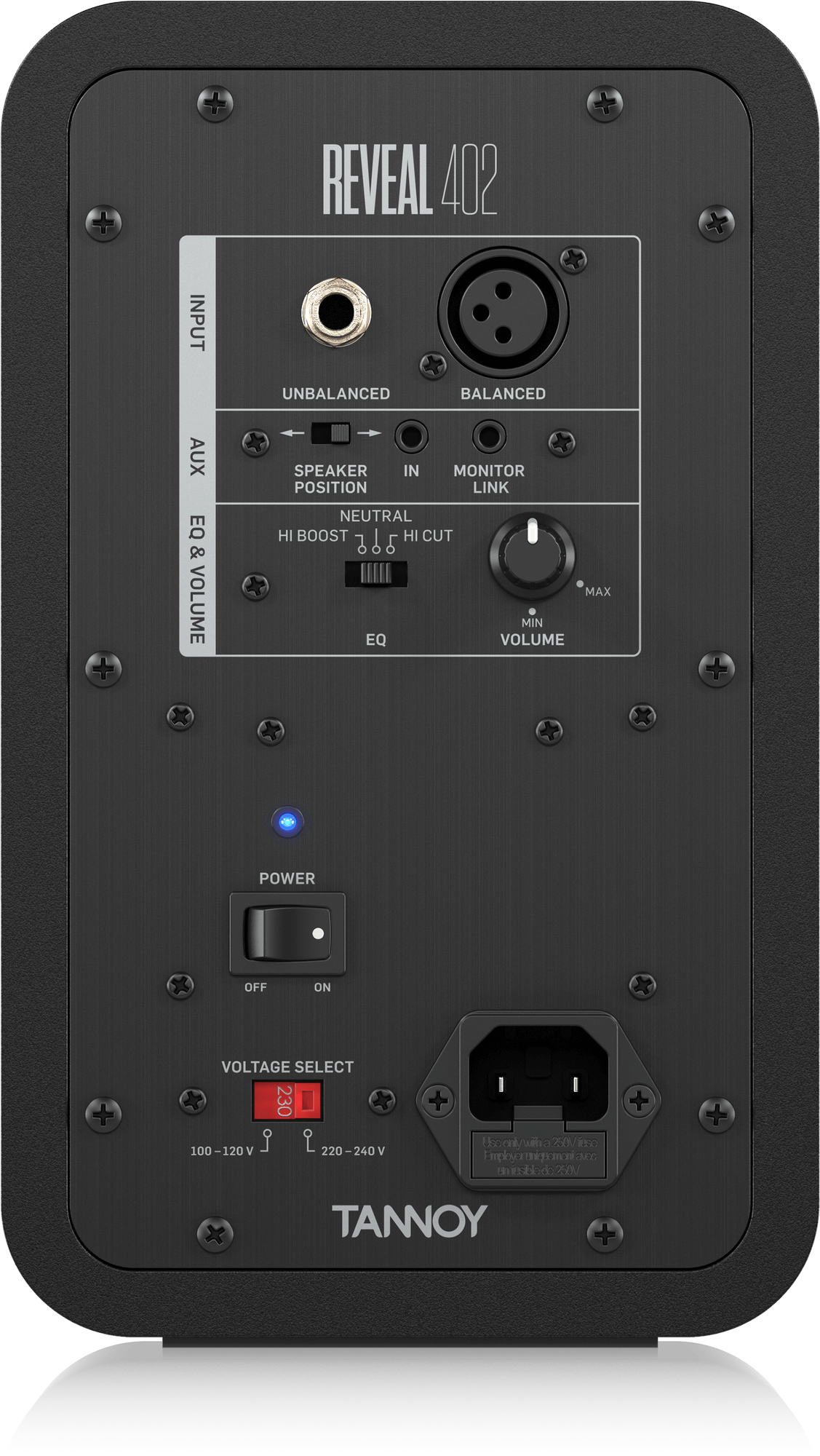

  • Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility

  • 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)

  • Tannoy - 90 years of British audio innovation

  • Designed and engineered in the U.K.

REVEAL 402
REVEAL 402

Custom tweaked by TANNOY’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of REVEAL 402 have absolutely impeccable timing.

This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.

If you’re anything like us, you’re not only working on mixes but also listening to your favorite music! REVEAL 402 gives you the ultimate pathway for both.

With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces


Specification
General
Frequency Response

56 Hz -48 kHz

Max SPL

101 dB

Membrane Sizes
HF

¾" Soft Dome (19 mm)

LF/Mid Range

4” (100 mm)

Bi-amp Output Power, RMS
Power Output

50 Watts

LF/Mid Range

25 Watts

HF

25 Watts

THD

< 0.9 %

Input Types and Impedances
Balanced

XLR, 20 kOhm

Unbalanced

¼" Jack, 10 kOhm

AUX Link

Mini Jack, 10 kOhm

AUX Link Output

Mini Jack

EQ Options
HF EQ Settings

-1.5 dB HF Cut / Neutral / +1.5 dB HF Boost

Crossover Frequency

2.8 kHz

Low Frequency Alignment

Optimized Front Port

Cabinet Dimensions
HxWxD, inches

9.5 x 5.8 x 8.4

HxWxD, mm

240 x 147 x 212


View full details
