• The number of kits has been increased from 50 to 99 (Version 2)

  Forty-nine exciting new kits have been added to the OCTAPAD for even more creative possibilities. Use the OCTAPAD as a compact drum set, play dynamic orchestral percussion, or explore traditional world percussion and melodic instruments from India, the Middle East, Africa, China, and Latin America. * You can back up your own original OCTAPAD SPD-30 kit data and import it into Version 2.

• Controllable Phrase Loop function with 50 preset phrases (Version 2)

  The onboard Phrase Loop function lets you instantly create layered loops and phrases. You can record and store 50 phrases internally, with each containing up to three layers. You can also save your phrase data on your USB Memory. With Version 2, you can control the start of Phrase Loop using pad velocity, buttons presses, and/or a footswitch (optional). Additionally, you can toggle freely between solo play (Kit mode) and phrase play (Phrase Loop mode). Nineteen new phrases have been added to the onboard library, which adds exciting performance and recording possibilities.

• Useful Kit Chains for live performance (Version 2)

  There are eight banks of Kit Chains onboard conveniently organized into musical style and instrument categories. Select from Drum Kits, Percussion, Orchestra Perc, Club Sounds, Melodic Perc, Melodic Synth, Sound Effects, and Expanded Kits. Use the Chains as is, or easily edit them to best suit your live-performance needs.

• Output Gain Function (Version 2)

  A new Output Gain function has been added to increase the overall output of the OCTAPAD SPD-30. It provides a +6 dB boost when a stronger signal is needed.

• Sound Edit

  Unlike the original Octapad PAD-8, which was strictly a MIDI controller, the Octapad SPD-30 is a controller that’s packed with its own internal bank of sounds. You can customize the sounds with the onboard controls for tuning, muffling, attack, pitch sweep, and more. It’s like having a truckload of customizable drum and percussion instruments in one portable package.

• Multi-Effects

  Based on Roland’s world-leading effects technology, the SPD-30’s multi-effects engine will take your performances to another level. There are 30 types of internal multi-effects onboard, plus EQ, limiter, and seven Ambience types.

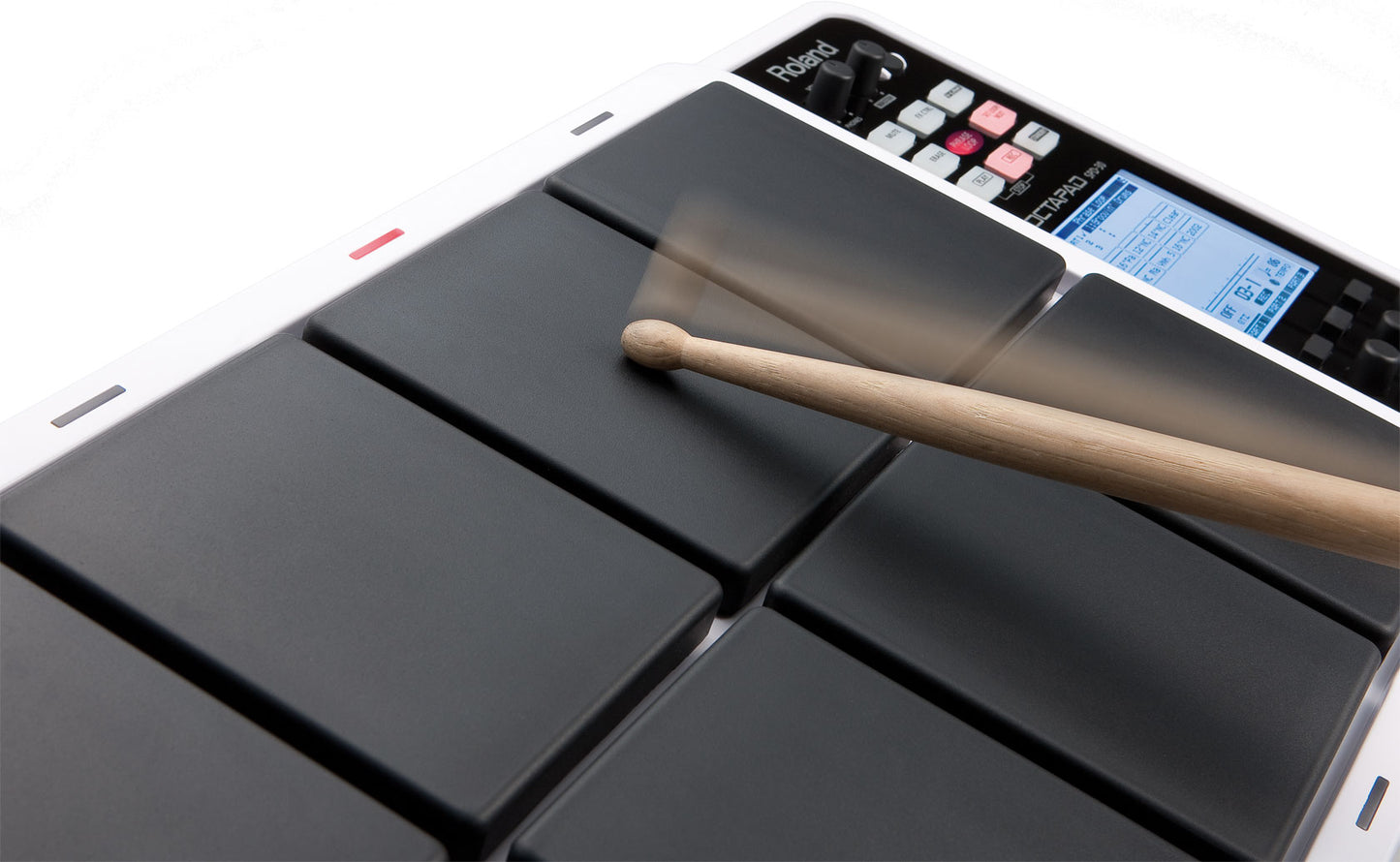

• Advanced Triggering Technology

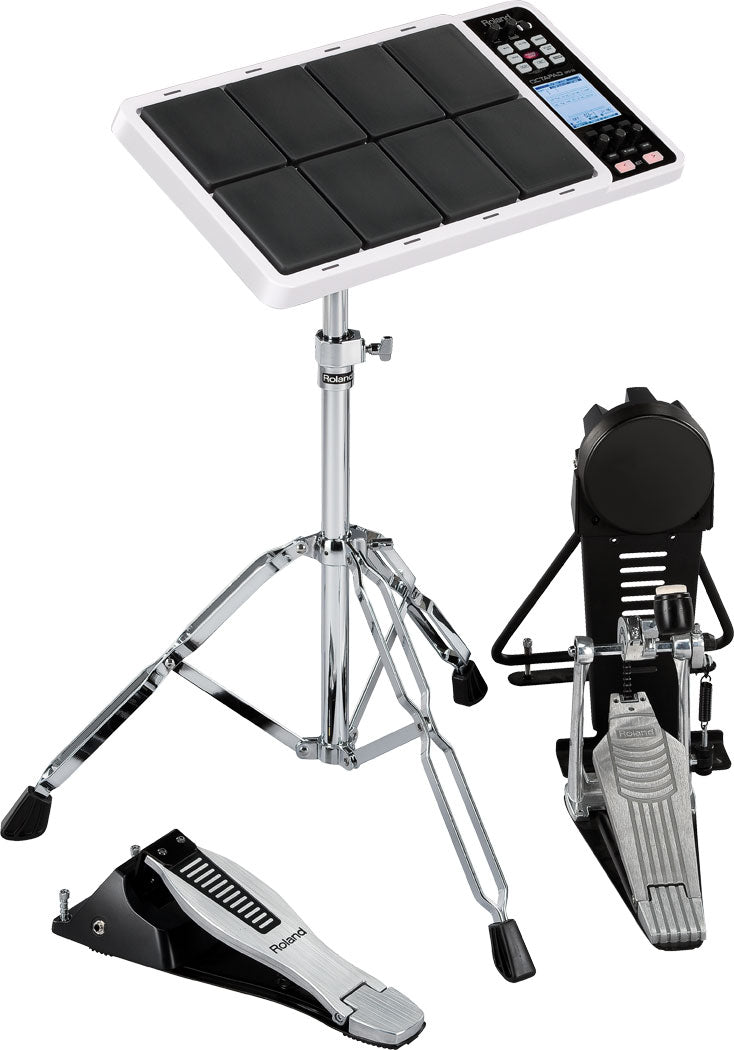

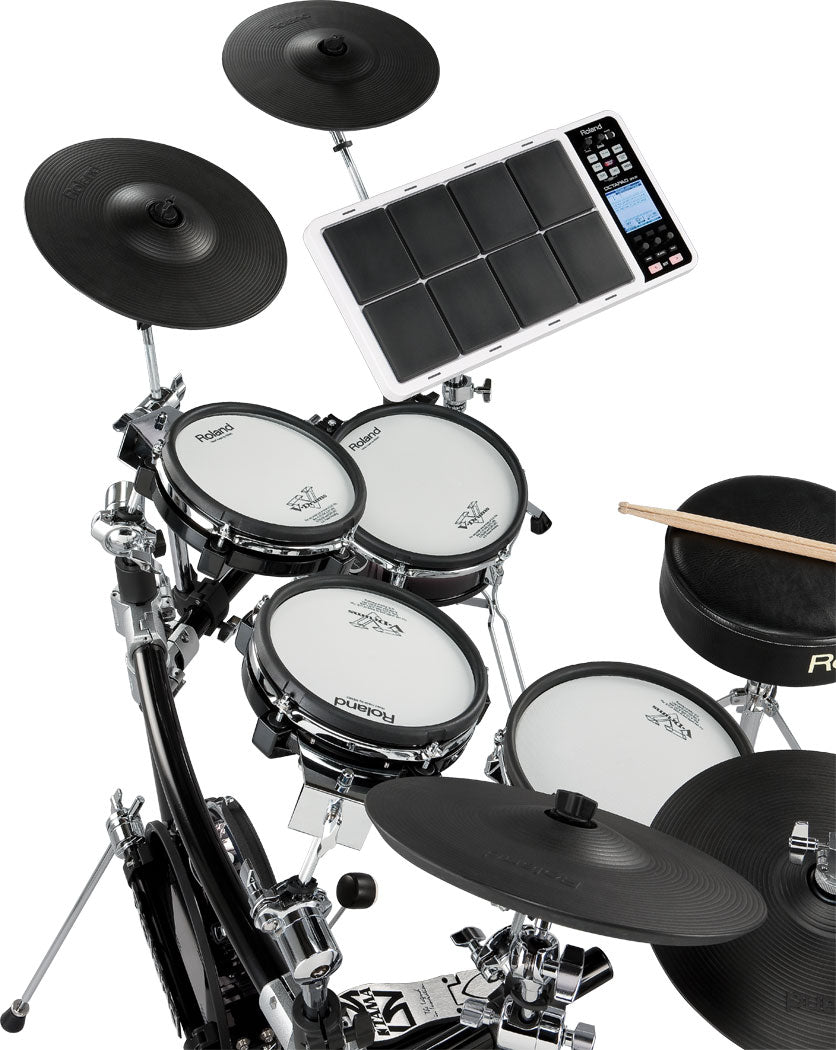

  The SPD-30 benefits from Roland’s most advanced V-Drum triggering technology. Each pad is a separate, isolated unit, providing the ultimate in sensitivity with complete crosstalk rejection. In addition, you can connect four dual-trigger inputs plus a hi-hat controller (compatible with Roland FD-8, VH-11) to create a mini drum set with external pads (Roland KD / PD / PDX / CY series), as well as to accept triggers from acoustic drums through Roland’s RT series.

Specification

Pads

Built-in Pads: 8
* Four external trigger inputs are provided, allowing you to connect Pads.

Instruments

670

Kits

50

Kit Chain

8 chains (20 steps per chain)

Instrument Parameters

Tuning
Muffling
Soft Attack
Tone Color
Pitch Sweep
Volume
Pan
Reverse

Effect Types

Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)

Phrase Loop

Phrases: 50
Parts: 3
Tempo: 40 to 260
Resolution: 480 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: approx. 10,000 Notes

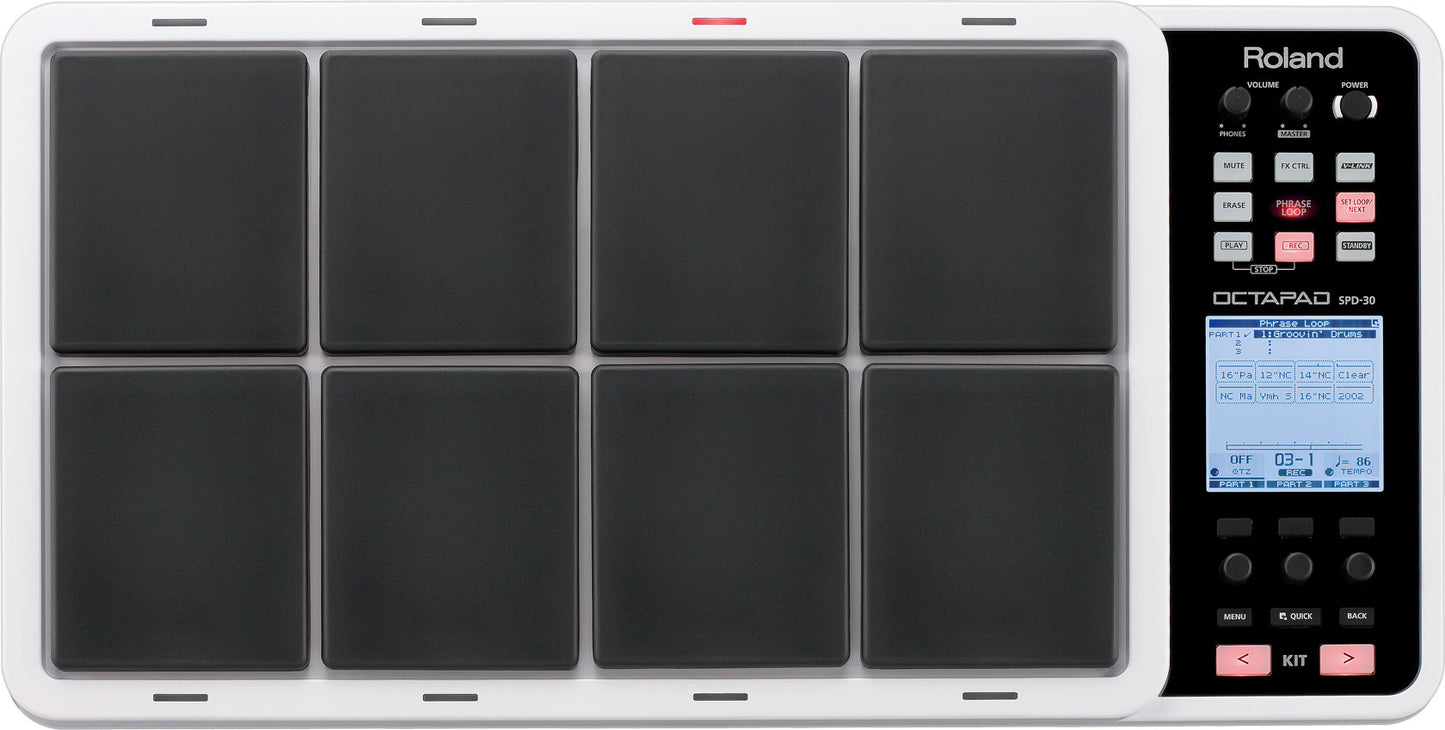

Display

160 x 160 dots Graphic Type LCD (Backlit LCD)
Pad Status Illumination x 8 (LED)

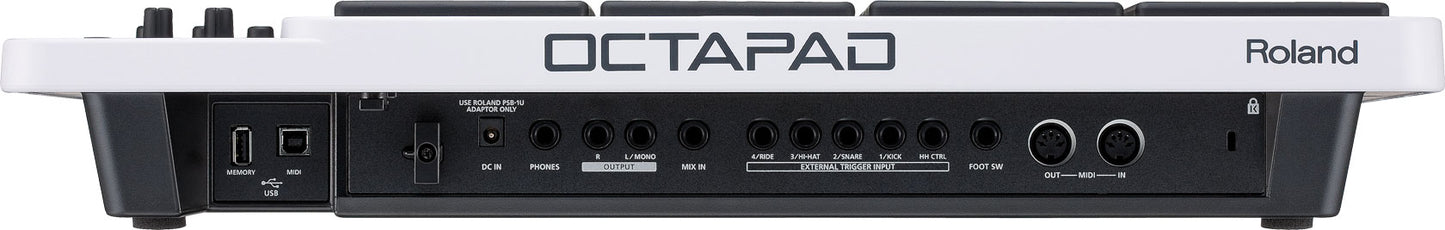

Connectors

PHONES Jack (Stereo 1/4 inch phone type)
OUTPUT Jacks (L (MONO), R) (1/4 inch phone type)
MIX IN Jack (Stereo 1/4 inch phone type)
EXTERNAL TRIGGER INPUT Jacks x 4
HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type)
MIDI Connectors (IN, OUT)
USB MEMORY Connector (for USB Memory)
USB MIDI Connector (for USB MIDI)

Output Impedance

1.0 k ohms

Power Supply

AC Adaptor (DC 9 V)

Current Draw

600 mA

Accessories

Owner's Manual
AC Adaptor (PSB-1U)
Screws (M5 x 12 mm) x 4

Options

Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Kick Triggers (KD series)
Hi-Hats (VH-11)
Hi-Hat Control Pedal (FD series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Foot Switch (FS-5U, FS-6)
Personal Drum Monitor: PM-10, PM-30
V-Drums Accessory Package: DAP-3
V-Drums Mat: TDM-10
USB memory
* Use USB memory sold by Roland. We cannot guarantee operation if other
products are used.

SIZE AND WEIGHT

Width

541 mm
21-5/16 inches

Depth

272 mm
10-3/4 inches

Height

88 mm
3-1/2 inches

Weight

3.8 kg
8 lbs. 7 oz.

Weight exclude AC Adaptor.

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
