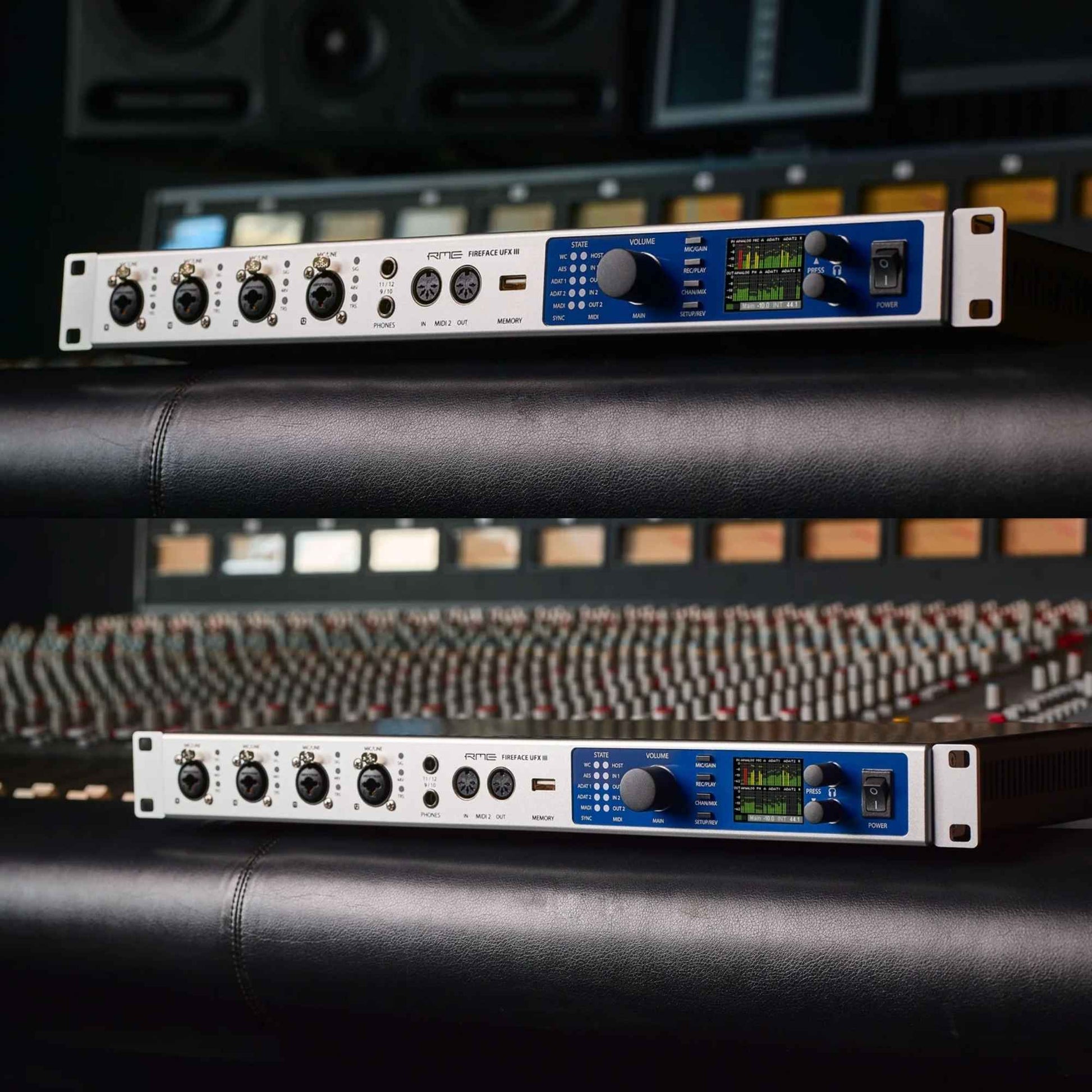

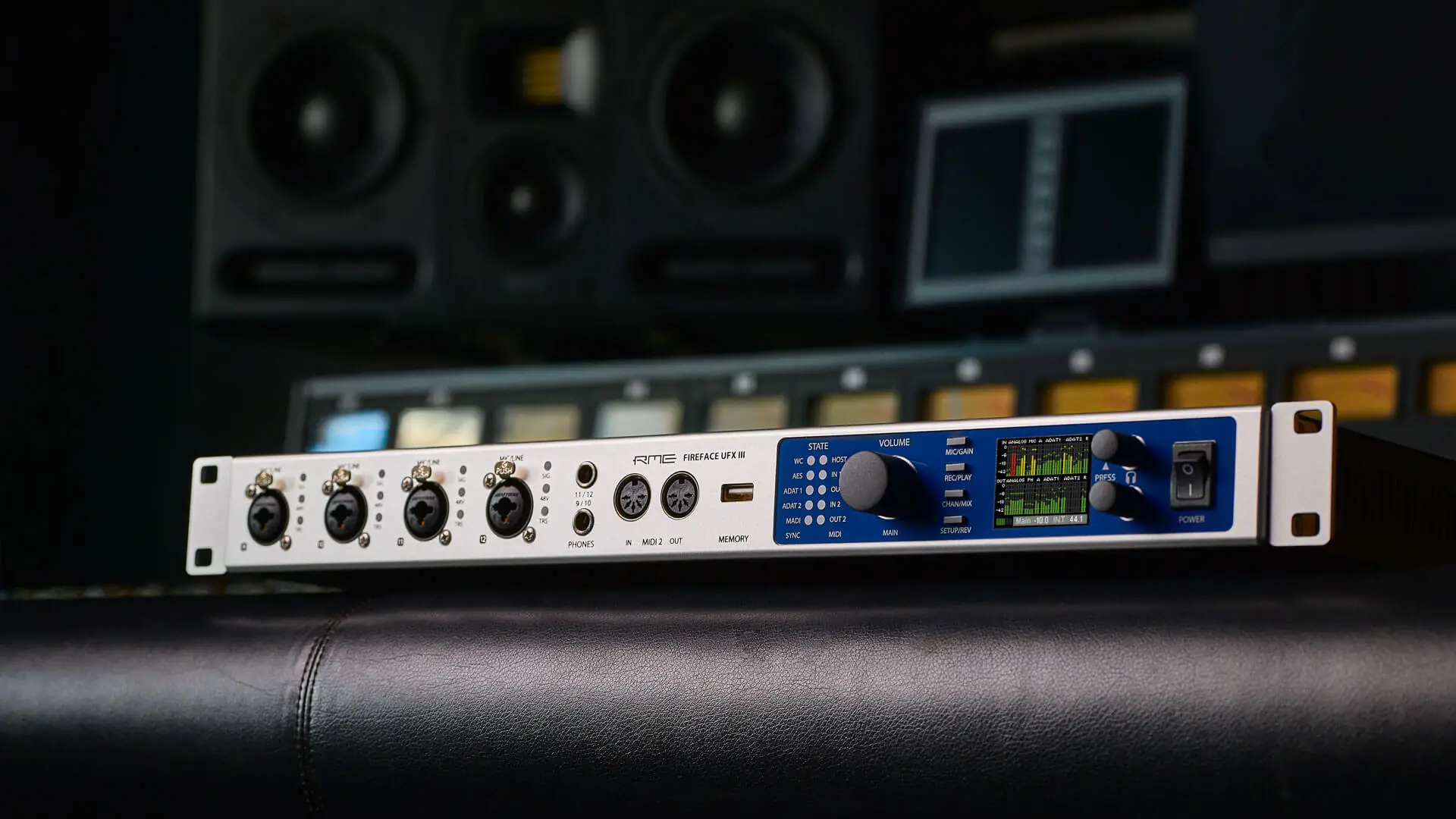

Fireface UFX III
The Multichannel Flagship Interface
The Fireface UFX III is the center of any multitrack studio, handling up to 94 channels I/O with ease. Its unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME’s famous low latency hardware and driver designs guarantee flawless operation in any mode and application.
12 x Analog I/O 4 x XLR / TRS Mic / Inst / Line
2 x Phones Output 1 x AES/EBU I/O
2 x ADAT I/O 2 x SPDIF I/O
1 x Word Clock I/O / MADI Coaxial 1 x MADI optical I/O
2 x MIDI I/O RME USB 3.0
TotalMix FX ARC USB
DURec Class Compliant Mode
AutoSet Digital Gain Control DC-coupled Outputs
Including FX SteadyClock FS
Powerful USB 3 Performance

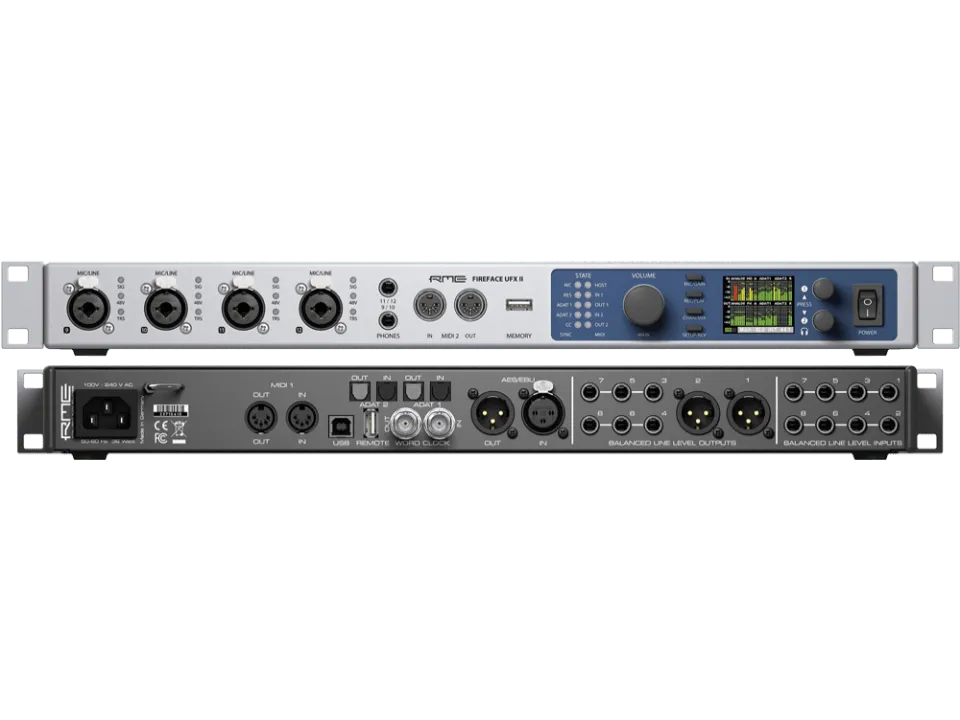

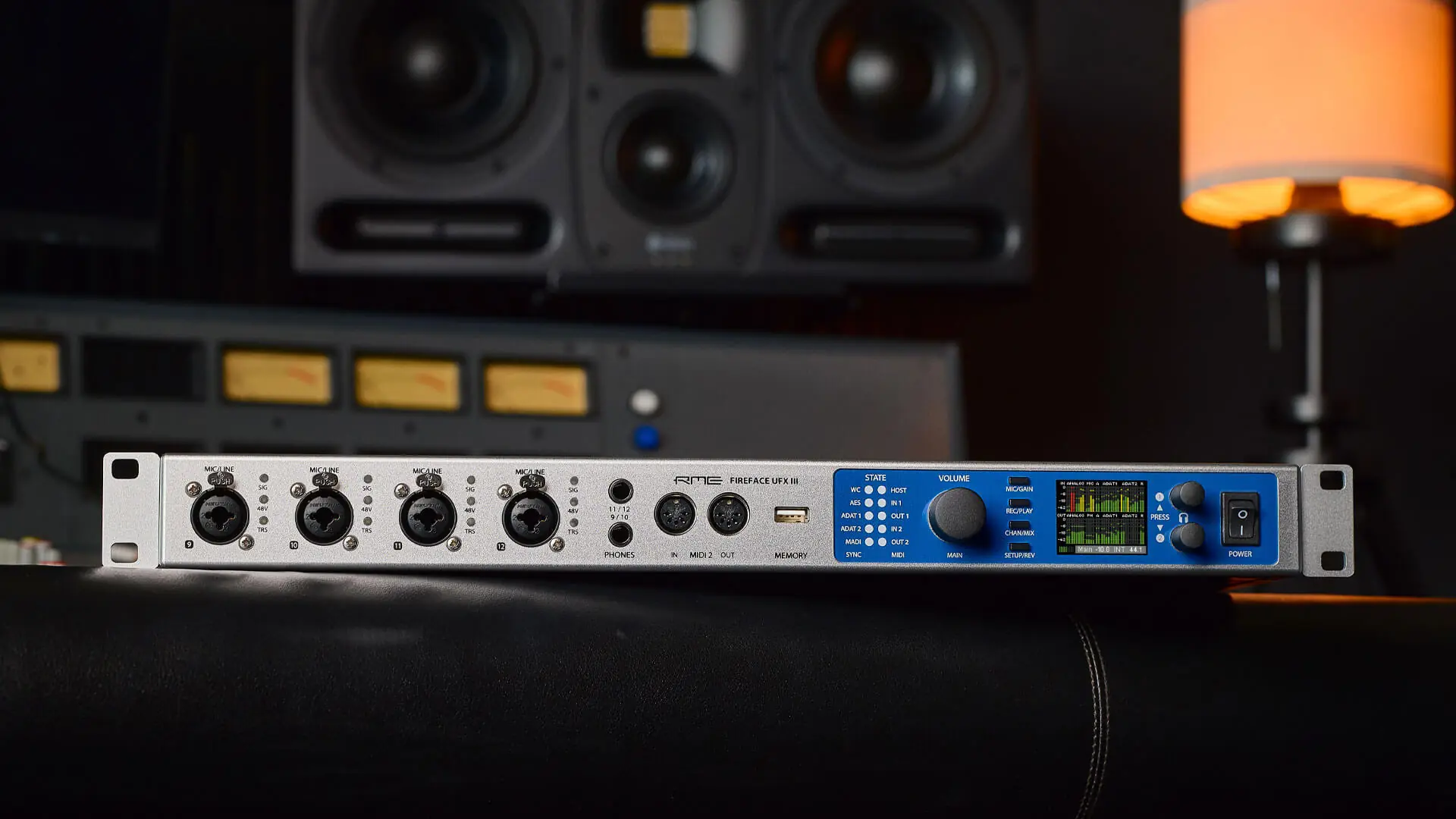

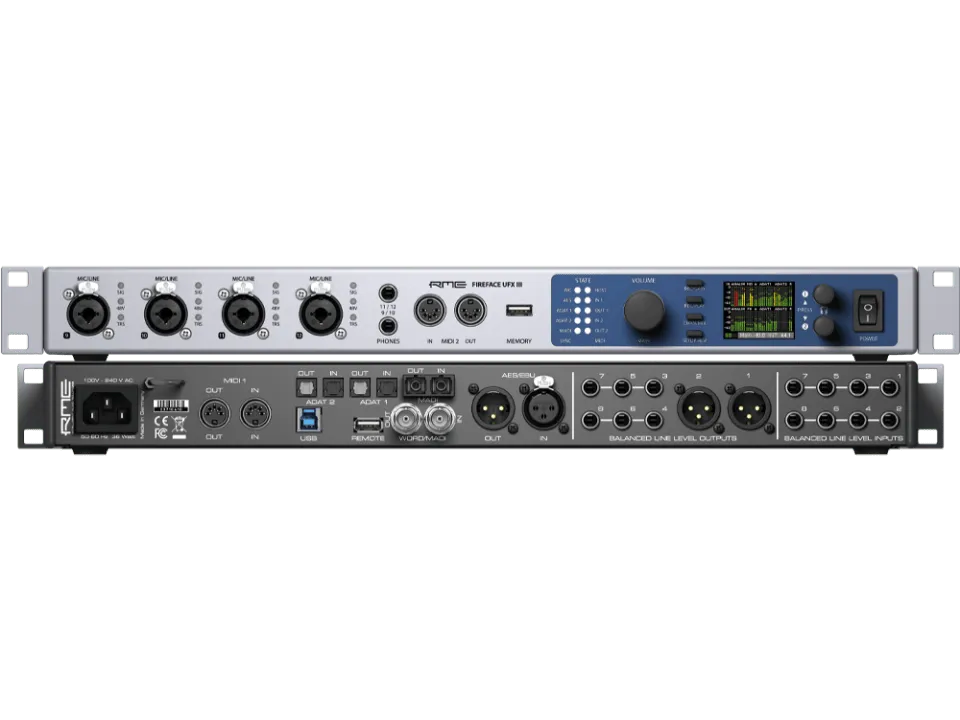

The front panel of the Fireface UFX III provides four high-performance XLR/TRS combo inputs for microphone, instrument and line signals, two stereo headphone jacks with +19 dBu output level, MIDI I/O, and a USB port. In combination with the DURec function (Direct USB Recording), the USB port allows independent recording of selected input and output signals (up to 80 channels) to a connected USB storage medium.
The rear panel reveals the full connectivity of the Fireface UFX III. Besides another MIDI I/O, the two optical ADAT I/Os, an AES/EBU I/O, and eight balanced analog outputs with line level (including XLR stereo monitor outputs) are available. With the new Multi-Mode, the two ADAT I/Os can be used as separate optical SPDIF inputs and outputs in addition to the AES I/O. Furthermore, the Fireface UFX III offers an optical MADI interface (SC) with 64 bidirectional channels. The Word Clock connectors (BNC) work as additional coaxial MADI input and output if required.
Comprehensive MADI Connectivity
The Fireface UFX III opens the doors to a host of RME and 3rd party digital and analog I/O solutions. Expanding your analog channel count, the ability to route/mix within the digital domain through numerous sources presents many flexible options. Multiple external MADI devices can also be connected in series.
To further enhance MADI flexibility, the Fireface UFX III boasts some typical RME-style features. For example in USB 2 mode, which is limited to 30 channels I/O (12 analog plus 16 ADAT plus AES), the MADI I/O is still available via RME’s integrated hardware mixer TotalMix FX. Word Clock I/O (BNC) can be switched to MADI I/O (coaxial), and a special split mode even supports the use of both MADI I/Os simultaneously, with 32 channel each on optical and coaxial.
Unrivalled flexibility in connectivity and expansion – Analog, ADAT, MADI, AES, SPDIF, USB 2 & USB 3
Powerful Applications for Mixing, Monitoring and Measurement included
The Fireface UFX III comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.
The additional TotalMix Remote is a remote control for TotalMix FX, to control the hardware mixer and effects in RME audio interfaces. TotalMix Remote mirrors the current state of the host system on the iPad and Windows/Mac computers – the entire mixing state, the complete routing, all FX settings, up to the level meters, and everything in real-time. Easily adjust all the mixer and FX settings from a distance, via Ethernet and WiFi.

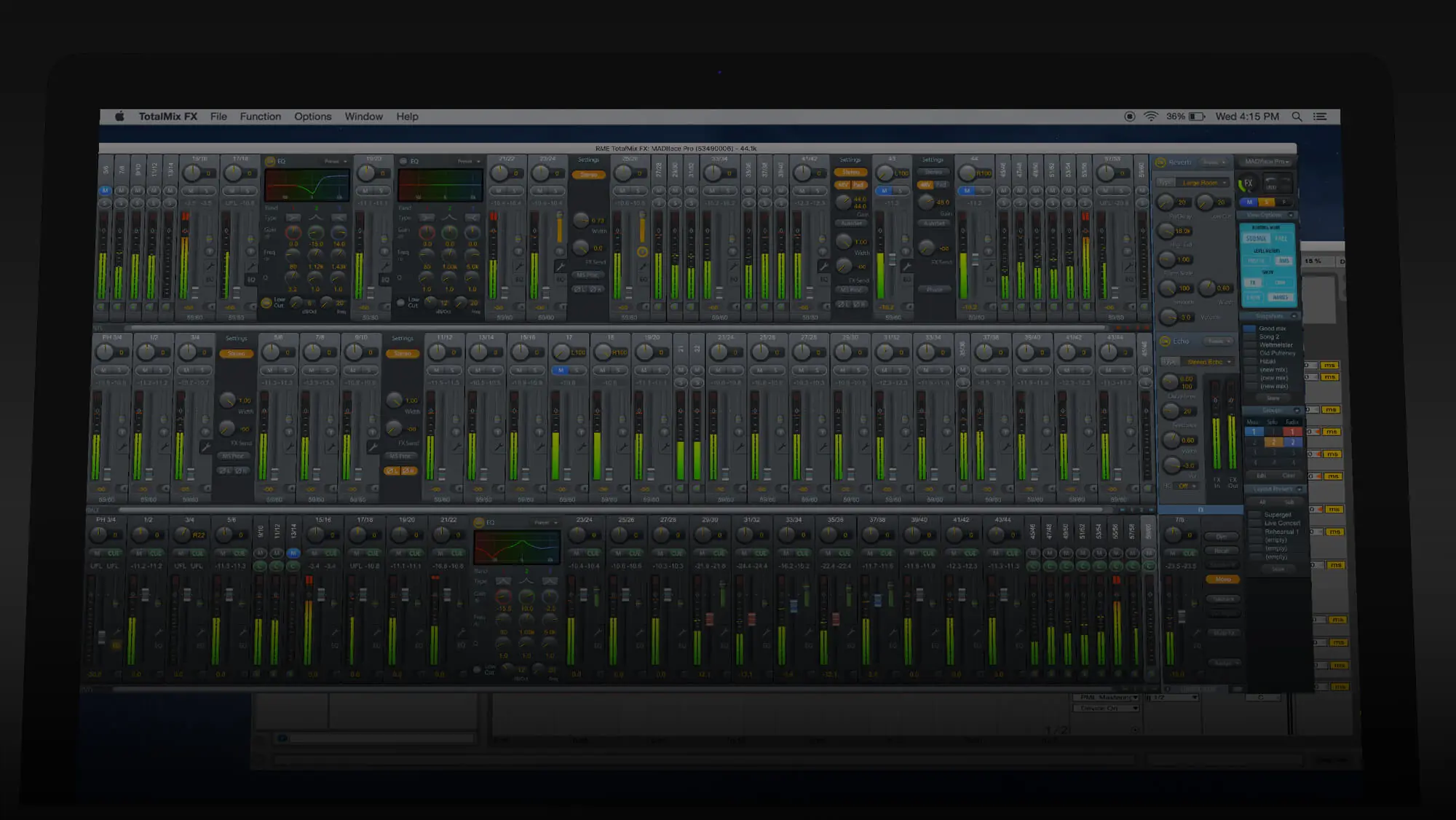

TotalMix FX mixer with comprehensive routing, monitoring and effects options
DC-Coupled Outputs - CV/Gate Voltage Control
Most audio interfaces are traditionally designed with what is called ‘AC-coupled outputs’, where capacitors are used to filter out any extreme low frequencies.
Whilst these frequencies are generally considered undesirable for audio – eating into headroom and potentially causing damage to other equipment – one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.
All of the Fireface UFX III’s line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers formats) and other studio hardware.
Control all device states directly from the front panel for convenient, direct access to all features.
USB 3 Class Compliant Audio
The Fireface UFX III operates in two different modes: driver-based USB 3 and Class Compliant. The Class Compliant mode is a standard that is natively supported by operating systems like Windows, Mac OSX and Linux distributions. No proprietary drivers are required, the device will be directly recognized when the CC firmware is loaded.
The Fireface UFX III is RME’s first audio interface with full USB 3.0 support in Class Compliant Mode. This makes all channels available in driverless operation for Linux, Mac and iPadOS. An iPad Pro with USB C can manage up to 94 channels for recording and playback in TotalMix FX for iPad and on system level.
ARC USB Remote Control - Plug’n Play Plus
The optional available ARC USB connects to your computer via USB, and talks to TotalMix FX directly. It has 15 freely assignable and illuminated buttons, one encoder wheel, and a TS jack to connect a foot switch.
The ARC USB is a USB 1.1 MIDI remote control for the Fireface UFX III. Thanks to operating as a UAC 1 class device, it is natively compatible to Windows and Mac OS X. As soon as it is present in the operating system, TotaIMix FX will automatically detect the ARC USB, and communicate with it via simple MIDI remote commands to control the UFX III.
All 188 input and output channels can be individually chosen for recording and playback

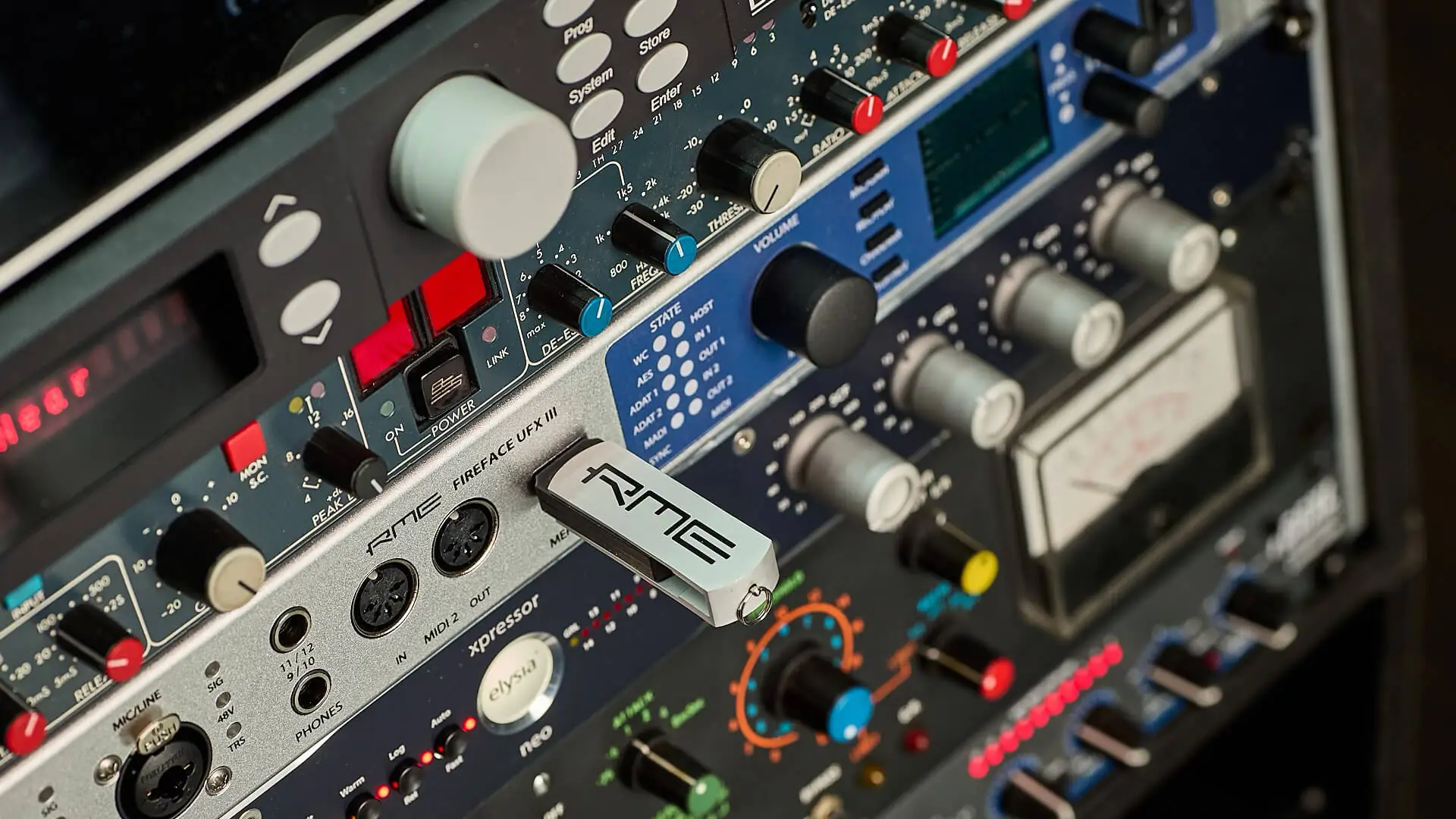

DURec (Direct USB Recording)
DURec is an integrated digital recorder for all inputs and outputs directly to USB memory devices via the front USB port. The Fireface UFX III records on USB thumb drives or hard drives with up to 2 TB capacity. The recording functionality is provided by the internal DSP, and is therefore independent from a connected Windows or Mac computer. The Direct USB Recording converts the Fireface UFX Series both into a stand-alone field recorder and a powerful multichannel live player for previous recordings, e. g. for virtual sound checks. Live concerts, band rehearsals or spontaneous jam sessions can be directly recorded and played back from the medium – even completely stand-alone without computer or software.
| FEATURE COMPARISON |
 Fireface UFX III |
 Fireface UFX II |

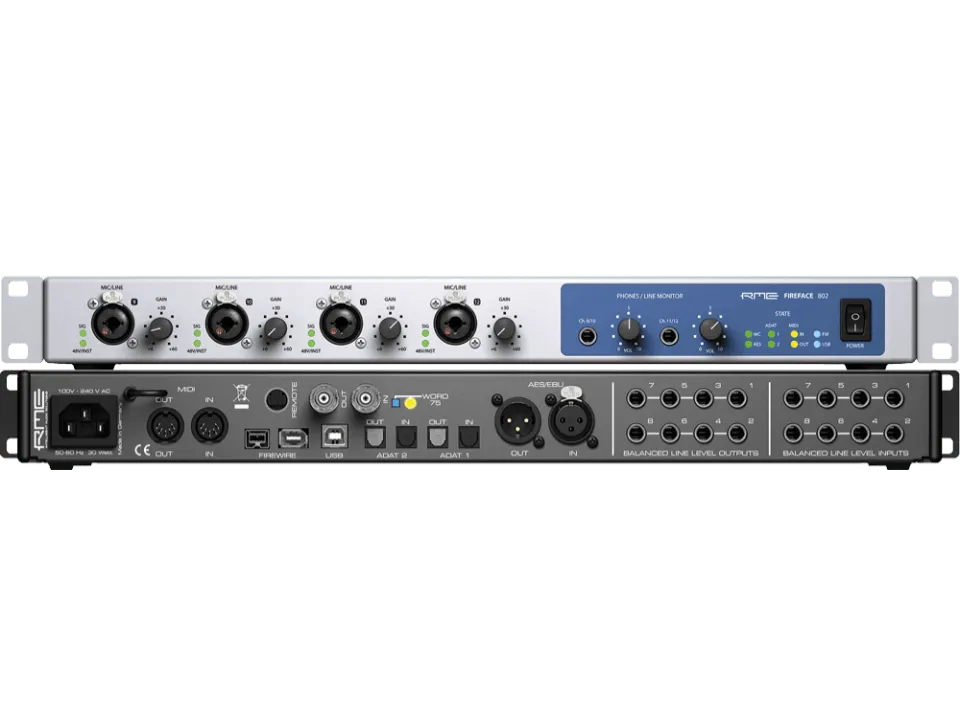

 Fireface 802 |

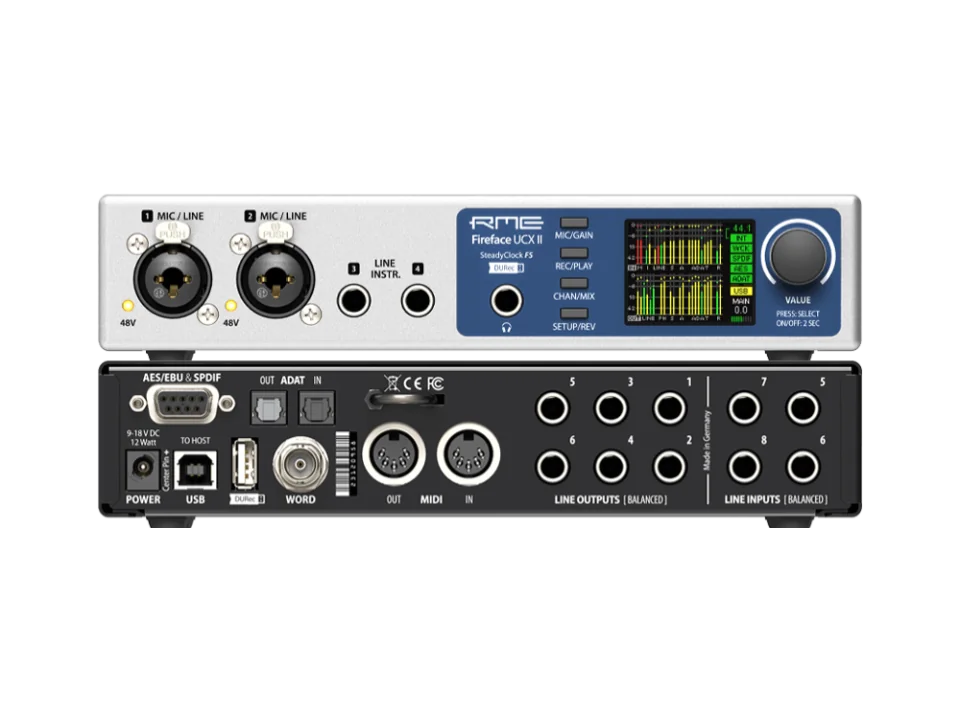

 Fireface UCX II |
| Analog Ins/Outs | 12/12 | 12/12 | 12/12 | 8/8 |
| Samplerate Analog I/O | up to 192 kHz | up to 192 kHz | up to 192 kHz | up to 192 kHz |
| Digital Ins/Outs (up to 192 kHz) | yes | yes | yes | yes |
| XLR/TRS Mic/Inst/Line | 4 | 4 | 4 | 2/2 |
| Phones Output | 2 | 2 | 1 | 1 |
| USB Connection | yes (USB 3) | yes (USB 2) | yes (USB 2) | yes (USB 2) |
| SteadyClock FS | yes | – | – | yes |
| Analog In connectors (L/R) | XLR + TRS | XLR + TRS | XLR + TRS | XLR + TRS |
| Analog Out connectors (L/R) | XLR + TRS | XLR + TRS | TRS | TRS |
| Digital AES/EBU (SPDIF Coaxial) | In/Out (XLR) | In/Out (XLR) | In/Out (XLR) | In/Out (XLR) |
| Digital SPDIF (instead of ADAT) | 2x In/Out (optical) | In/Out (optical) | In/Out (optical) | In/Out (coaxial) |
| Digital ADAT (instead of SPDIF) | In/Out (16 Ch.) | In/Out (16 Ch.) | In/Out (16 Ch.) | In/Out (8 Ch.) |
| MADI I/O | yes | – | – | – |
| MIDI I/O | yes | yes | yes | yes |
| DSP Effects | yes | yes | yes | yes |
| Analog Output level (switchable) XLR | +24, +13, +4 dBu | +24, +13, +4 dBu | +19, +13 dBu, -10 dBV | +19, +13, +4 dBu |
| iPhone, iPad, Linux, macOS USB CC mode | yes (USB 3 CC) | yes | yes | yes |
| ARC USB | yes (direct) | yes (direct) | yes | yes (direct) |
| DURec (Direct USB Recording) | yes | yes | – | yes |
| AutoSet Digital Gain Control | yes | yes | – | yes |
| DC-coupled Outputs | yes | yes | yes | yes |
| DigiCheck | yes | yes | yes | yes |
| TotalMiX FX | yes | yes | yes | yes |
More Outstanding Features
SteadyClock FS - Reference class Digital Clocking
Excellent performance in all clock modes and High Quality Analog Conversion to hear your mix as it is, with lowest jitter and highest jitter immunity.
TotalMix FX - Mixing/Routing with superior features for Studio and Live Work
Since 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

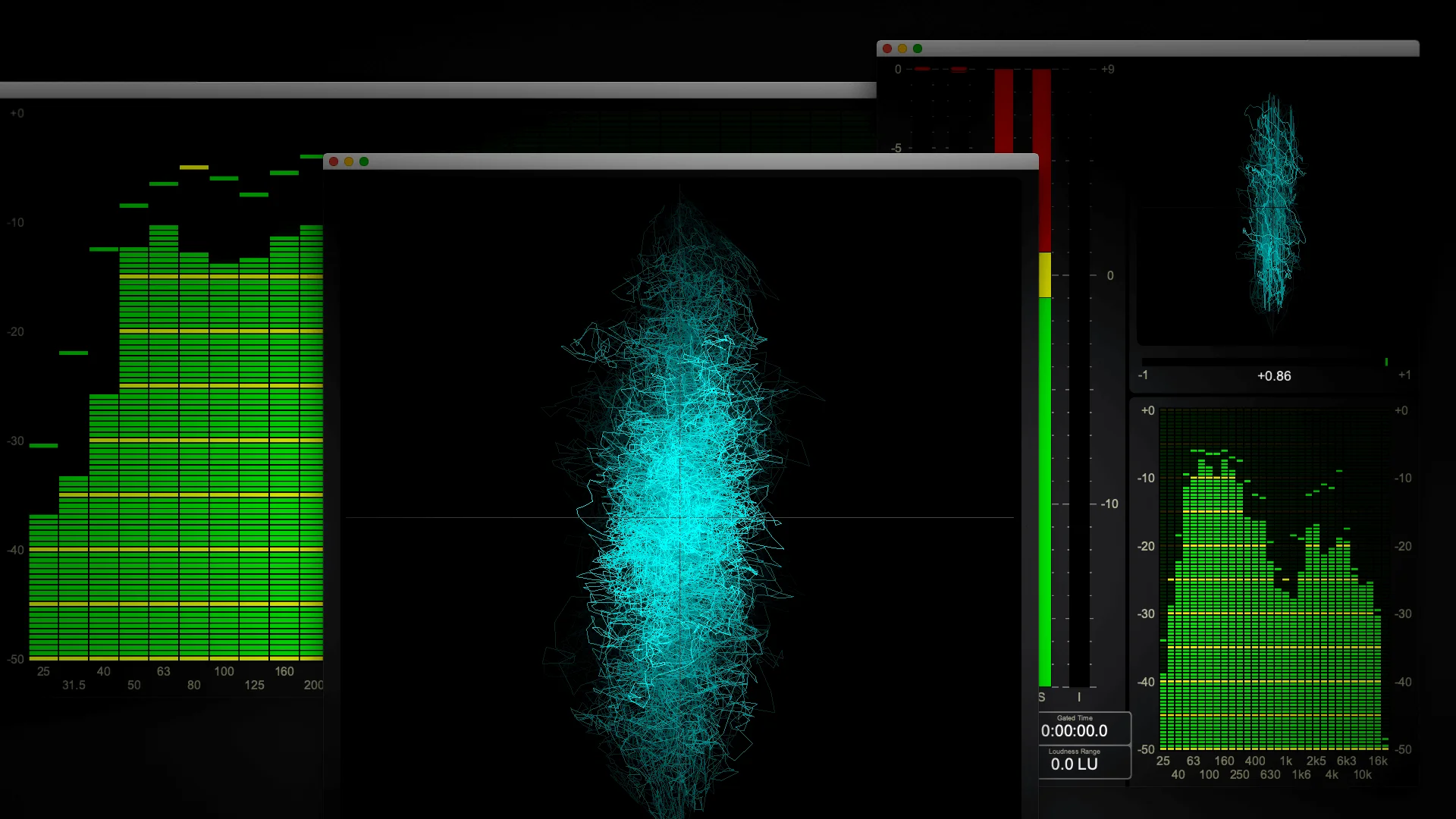

DigiCheck - The Secret Weapon of High Resolution Audio Measurements
RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.
RME USB- Transport audio with lowest latency and industry leading stability
Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay.”
