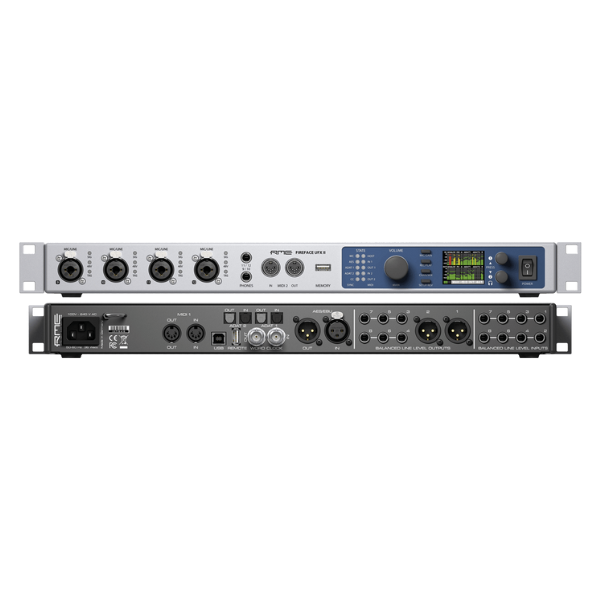

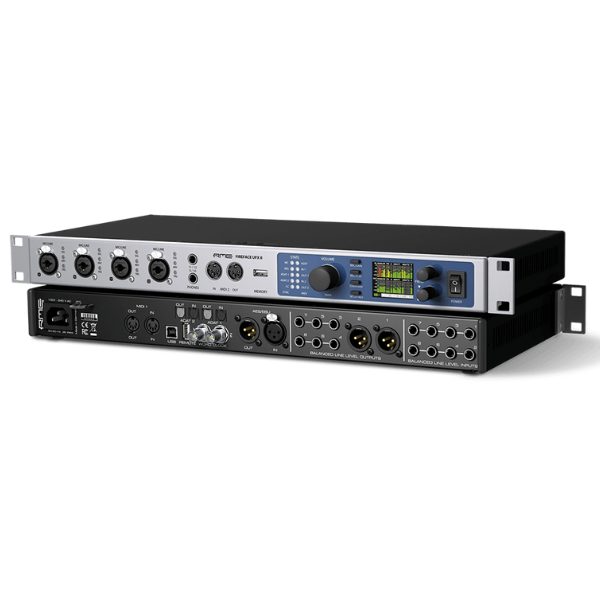

Fireface UFX II

60-Channel 192kHz high-end USB Audio Interface now with SteadyClock FS

RME USB Premium Flagship Interface

The unique Fireface UFX II is the premier solution to transfer analog and digital audio data directly to a computer from practically any source.

Numerous unique features like SteadyClock FS, improved AD/DA Conversion, DC-coupled analog outputs, well thought-out configuration dialogs, an industry-leading mixing engine and monitoring solution, professional DSP effects and class-leading analog circuits with latest digital converters put the Fireface UFX II at the very top of the range of computer-based audio interfaces.

The unique Fireface UFX II is the premier solution to transfer analog and digital audio data directly to a computer from practically any source.

Numerous unique features, well thought-out configuration dialogs, an industry-leading mixing engine and monitoring solution, professional DSP effects and class-leading analog circuits with latest digital converters put the Fireface UFX II at the very top of the range of computer-based audio interfaces.

Connectivity and Features

12 x Analog I/O

4 x XLR/TRS Mic/Inst/Line

2 x Phones Output

1 x AES/EBU I/O

2 x ADAT I/O

1 x Word Clock I/O

2 x MIDI I/O

1 x RME USB 2.0

TotalMix FX

ARC USB

DURec

Class Compliant Mode

AutoSet Digital Gain Control

DC-coupled Outputs

Including FX

SteadyClock FS

The first choice of Audio Professionals around the World

With exceptional flexibility and compatibility, the inclusion of DURec (Direct USB Recording), and RME’s famous low latency hardware and driver designs, the Fireface UFX II delivers a rich feature set that will appeal to users in both high end home studios and commercial audio production facilities.

With capacity for 60 audio channels (30 input and 30 output), support for sampling frequencies upward of 192 kHz, and the flexibility provided by USB connectivity, the new Fireface UFX II is an ideal solution to a wide range of recording, mixing, and monitoring applications.

The Fireface UFX II offers excellent flexibility that enables the interface to fit seamlessly into a myriad of production environments. Analog, ADAT, AES, SPDIF, and USB 2 are all standard on the Fireface UFX II. Equally impressive is the unit’s channel count: 12 analog, 16 ADAT, and 2 AES for 30 channels input and 30 channels output. Further, with support for USB 2 connectivity, the new Fireface UFX II can integrate with RME’s optional ARC USB remote controller.

RME’s Fireface UFX II incorporates premium AD/DA converters, optimized analog I/O circuits, as well as improved SNR and THD values to guarantee pristine, crystal clear and transparent audio. A new PAD-free mic circuit design with +18 dBu maximum input level and 75 dB gain range provides trouble-free operation for the most demanding recording environments.

Further, new low impedance, high power phones outputs (2 Ohms) with +19 dBu maximum output level provide ample output power and volume on any headphones - high or low impedance.

Flexible Routing & Mixing with TotalMix FX

Since 2001, TotalMix has added unlimited routing and mixing to RME audio interfaces. Its unique capability to create as many independent submixes as output channels available, turned it into the most flexible and powerful mixer of its kind.

With supported hardware, TotalMix FX includes a complete effects system, which not only adds flexibility to the recording chain, but also makes latency saddled software solutions obsolete.

TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

TotalMix FX includes a complete effects system: EQ, Reverb, Dynamics & Delay

DC-Coupled Outputs - CV/Gate Voltage Control

Most audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies.

Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.

All of the Fireface UFX II’s line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers formats) and other studio hardware.

TotalMix FX for iPad™ App

TotalMix FX for iPad™ adds full control over hardware mixer and DSP effects for Fireface UFX+, UFX II, UCX, 802, Babyface, Babyface Pro and MADIface Pro when in Class Compliant Mode, and lets you create, store and load complete mixes directly from the iPad™
