Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
VoltageRequirements
100-240 VAC, 50-60 Hz
PreSonus Commercial

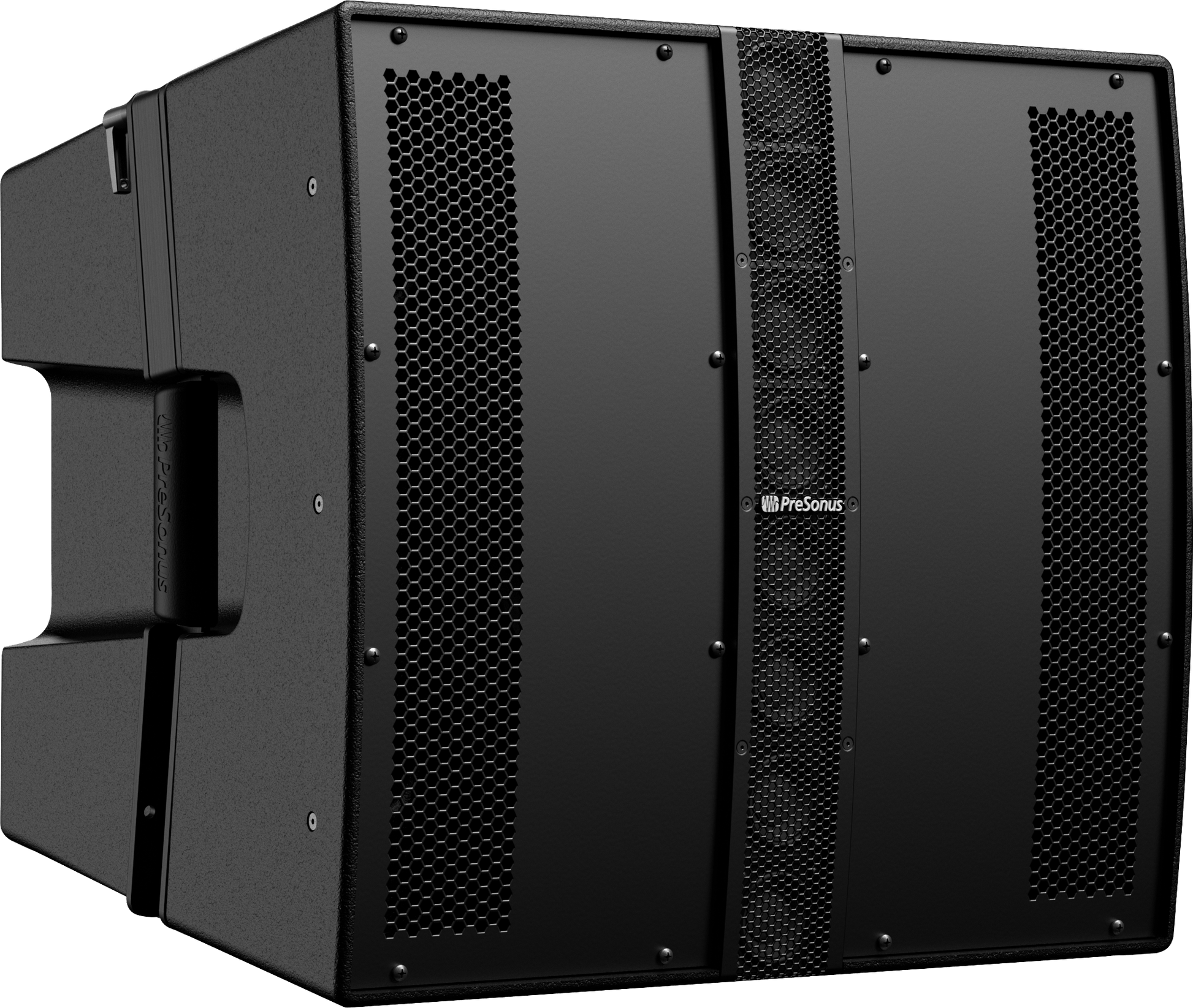

PreSonus CDL12P Constant Directivity Sound Reinforcement Loudspeaker
PreSonus CDL12P Constant Directivity Sound Reinforcement Loudspeaker
Short Description
Regular price
Rs. 129,200.00
Regular price
Rs. 143,500.00
Sale price
Rs. 129,200.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
1000W Hybrid Point Source/Line Array Speaker with 12-inch LF Driver, 8 x 2-inch HF Drivers, and Built-in Limiter
Our full-range, 15 x 120 degree, constant directivity sound reinforcement loudspeaker with hybrid point-source/line-array design.
Overview
The CDL12 loudspeakers impressed ears around the world when we introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the new CDL12P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.
Like the CDL12, CDL12P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.
The CDL12P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL12P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL12P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Features
- Continuous-directivity constant curve array with eight 2-inch cone drivers disperses sound 120° horizontally
- 15˚ vertical directivity can be extended from 30˚ up to 90˚ with additional arrayable CDL12Ps
- 12-inch, long-throw LF transducer with 2.5-inch voice coil
- Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
- 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
- Onboard DSP: 90 High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CDL18s, ULT18, or AIR18s)

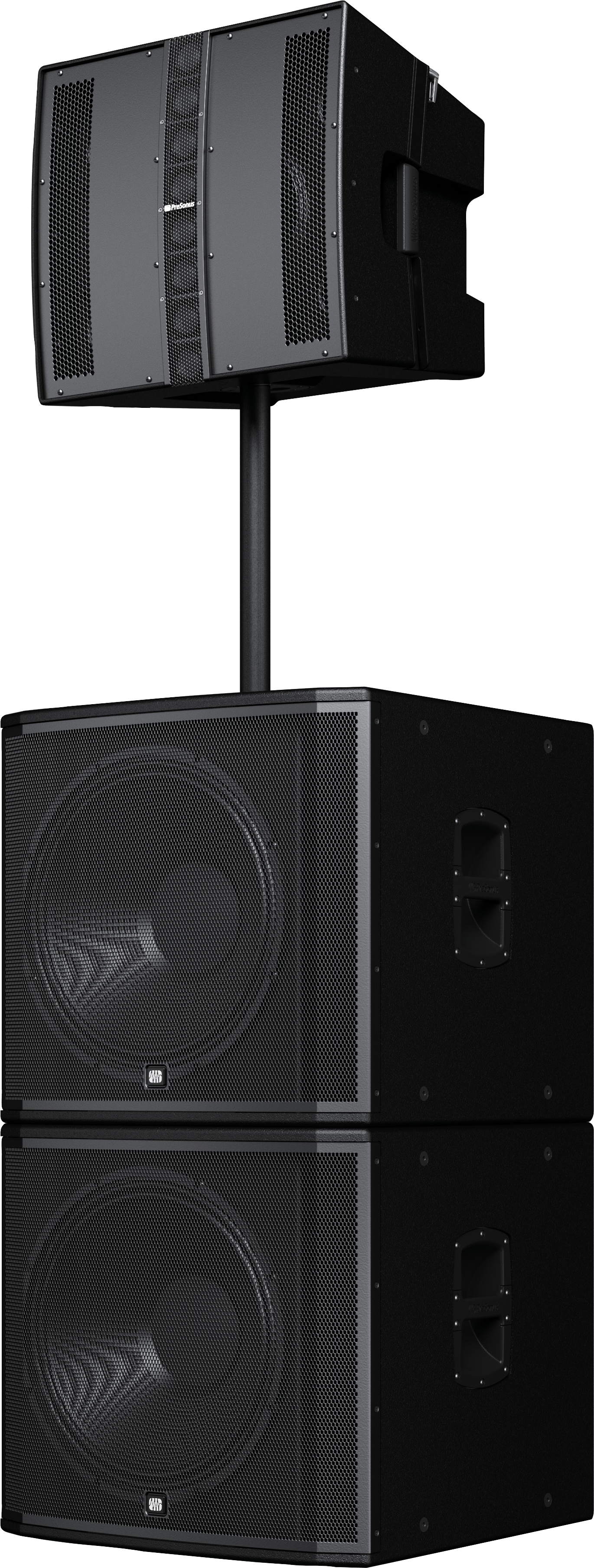

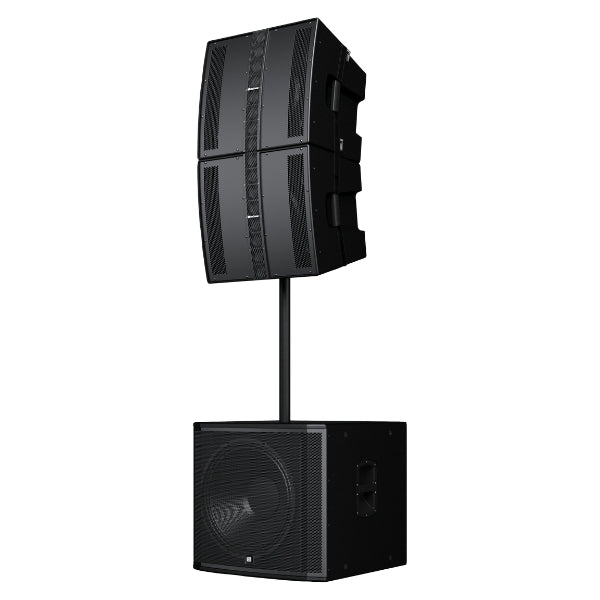

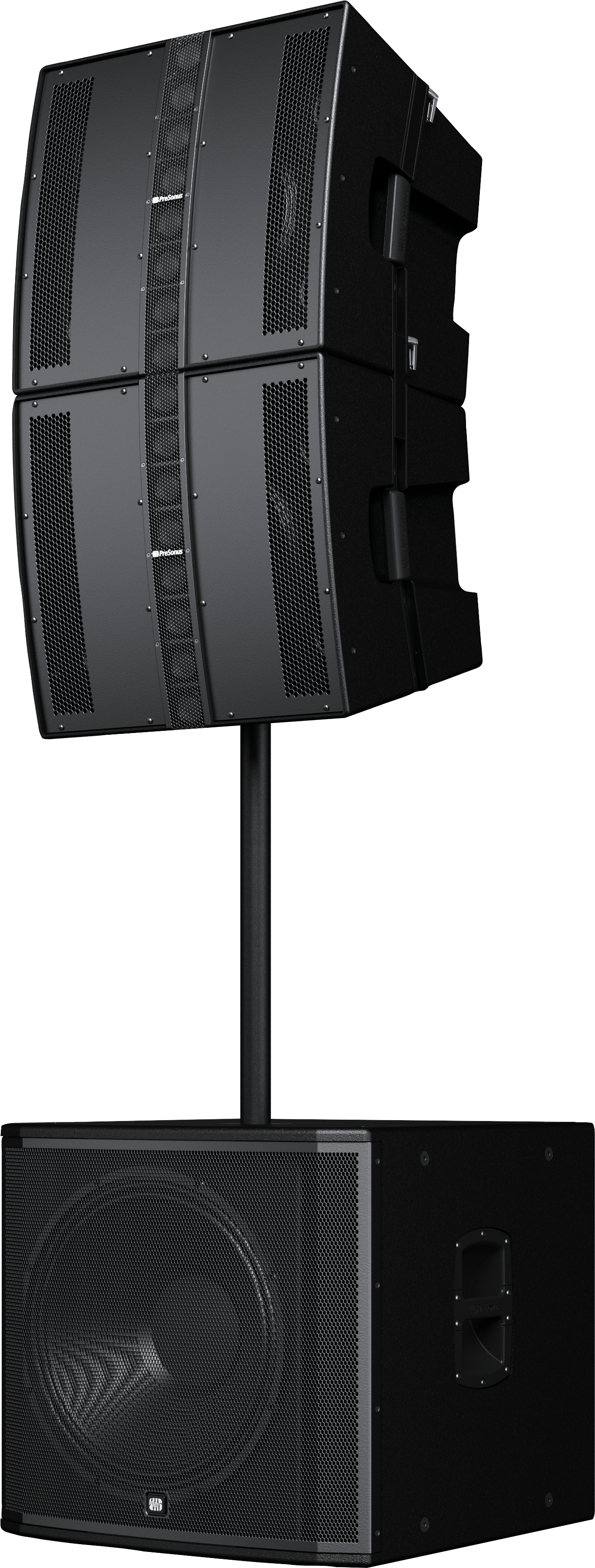

- 35 mm pole socket with 7.5˚ downward tilt for use with up to two CDL12P on a tripod or atop PreSonus® CDL18s or ULT18 subwoofer

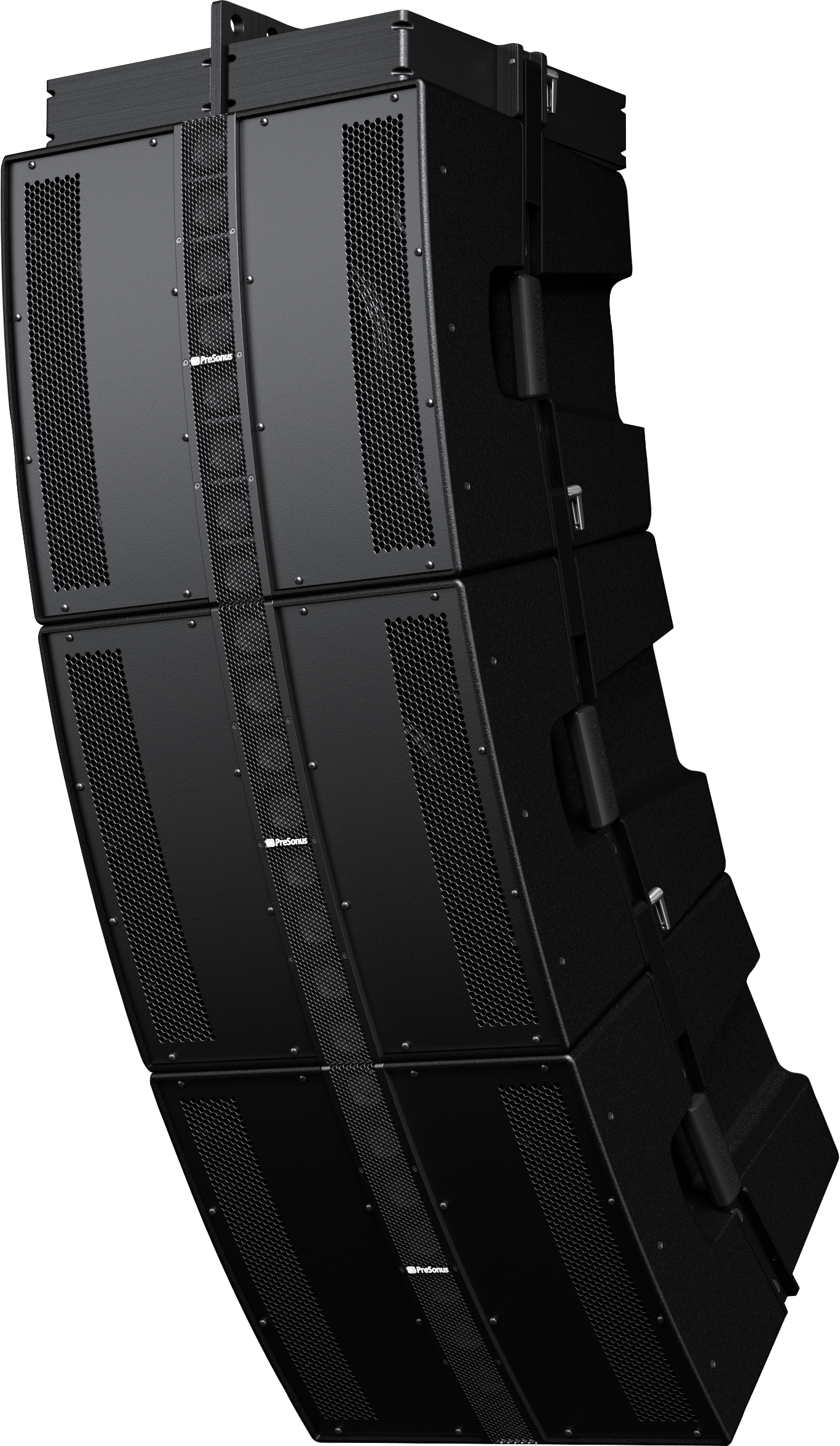

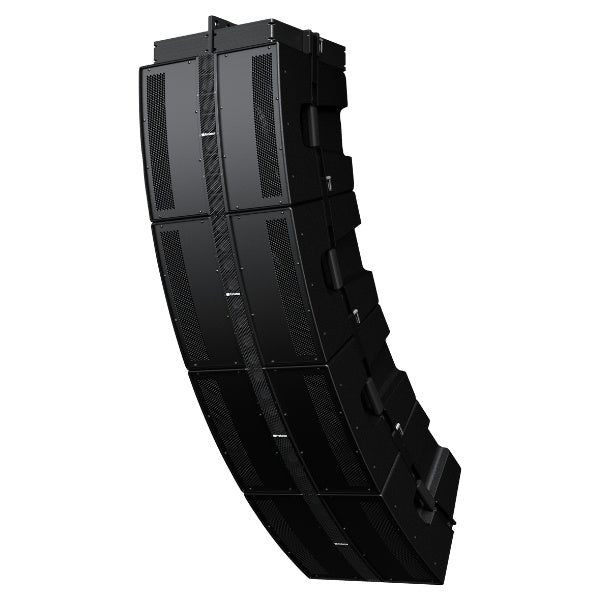

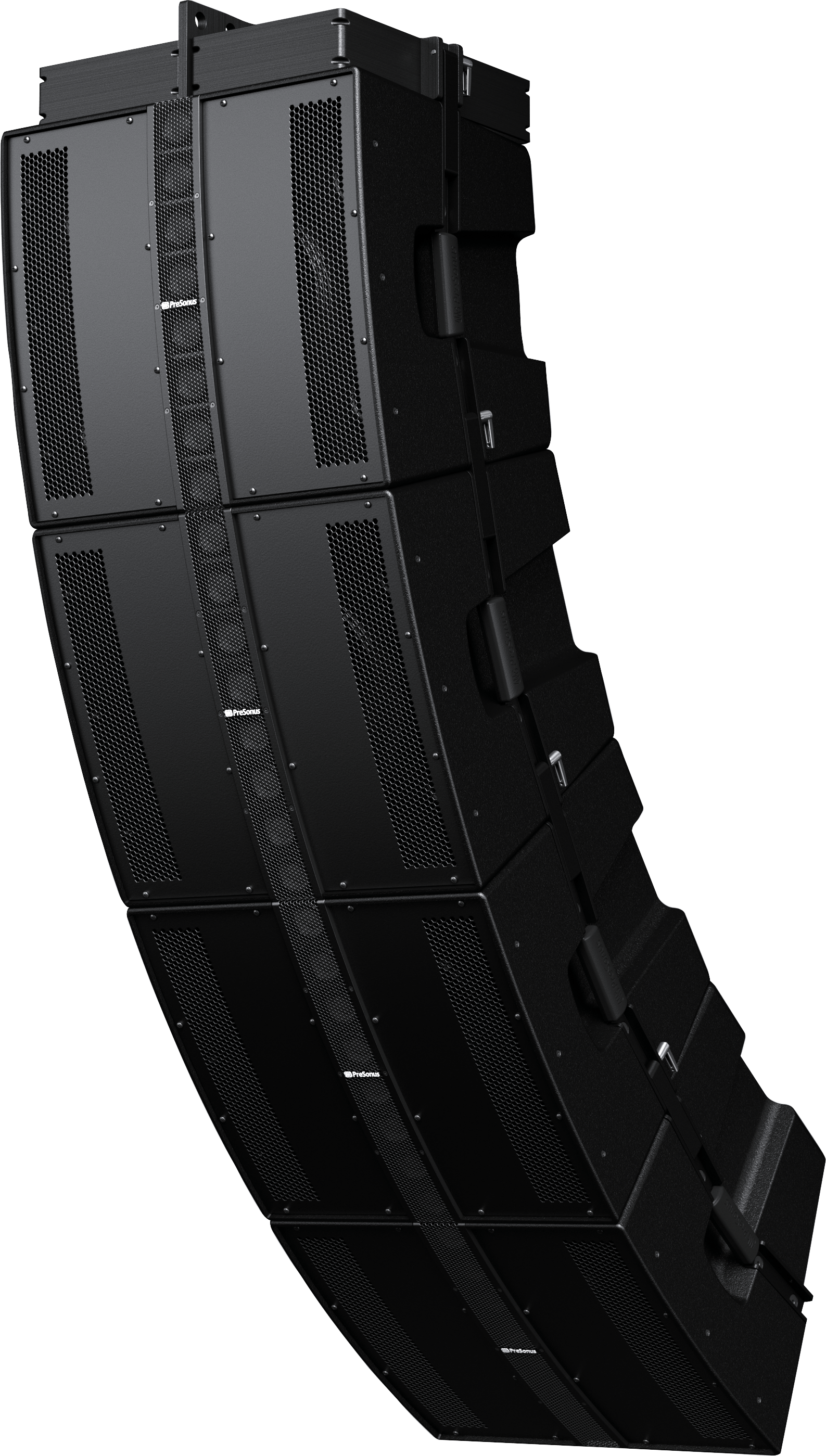

- Integrated flyware to create an array of up to six CDL12Ps

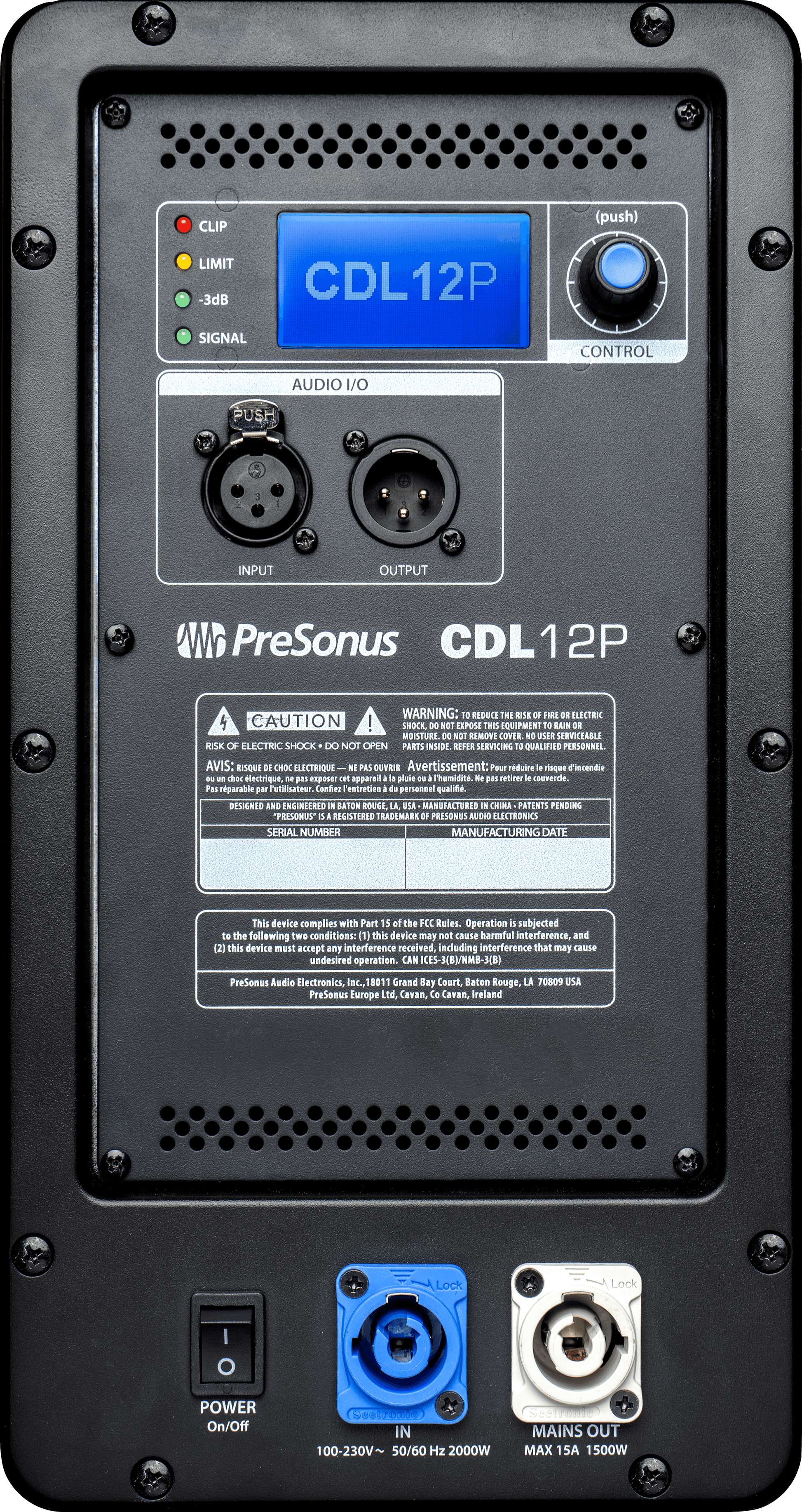

- Signal, -3 dB, Limiter Protection, and Clip Monitoring
- Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille - great for touring bands and mobile DJs
Highlights
The CDL12P’s Constant Directivity Design

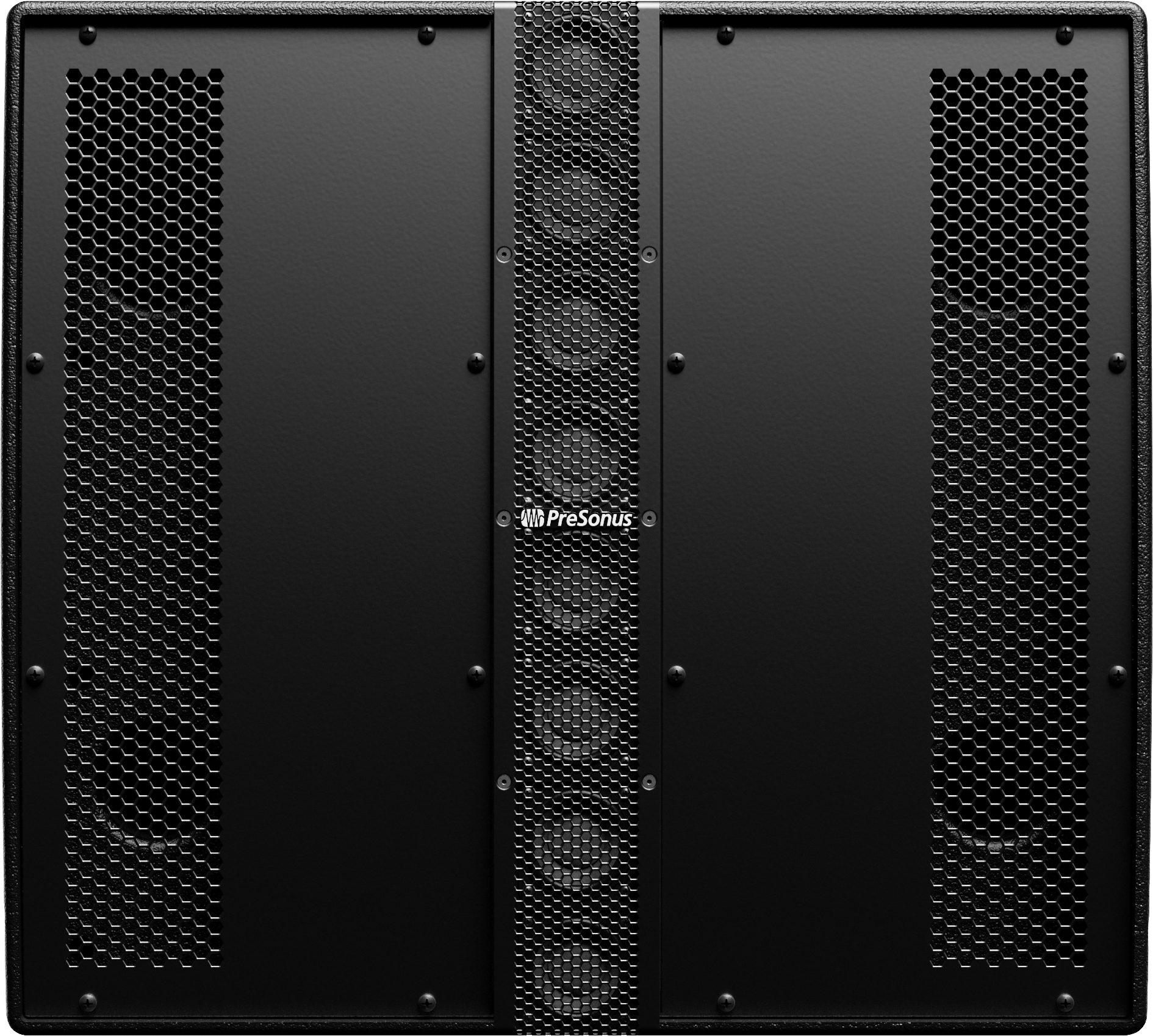

Each CDL12P consists of 8 2-inch drivers aligned in a segmented, circular-arc, HF array centered in front of a 12-inch woofer. The output of the LF driver travels from the same acoustic axis as the HF array so the pattern always radiates from the center. This avoids near-field anomalies and makes the CDL12P ideal for a broad range of venue sizes.
More About the CDL12P’s HF Driver Array
The 2-inch cones’ fast transient response is matched for high- and mid-range reproduction. This is enhanced by setting the internal crossover to 420 Hz, so the CDL12P reproduces audio seamlessly, with no gaps at the heart of the musical range. This also minimizes comb filtering between 12-inch bass drivers in an array for a smooth low-mid response.
CDL12P Power Amplification
Each 2-inch speaker in the high-frequency driver array has a 1-inch voice coil, and the entire array is driven by a 500W Class D amplifier. Because the power is shared across eight voice coils, power compression is reduced, resulting in an efficient design and a flatter phase response for less fatiguing listening and a refined, balanced sound.
CDL-series Rigging Accessories
CDL loudspeakers and rigging hardware are rated for a 10:1 load. The CDL Rigging Grid is required for flown installations. The CDL Rigging Extension Bar provides tilt control. The CDL Rigging Sling is required with 4 or more CDL loudspeakers in a vertical array and when using the CDL Rigging Extension Bar with a tilt of 12˚ or greater.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
