Nextone Artist

Guitar Amplifier

Four Power Stages, Unlimited Expression

Combining classic tube sound and feel with next-generation tonal diversity, the BOSS Nextone series presents an exciting new concept in professional guitar amplification. Distinctive channel voicings deliver a wide range of inspiring tones, while four selectable Class AB analog power amp types provide instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Backed by our advanced Tube Logic approach, each power amp type re-voices the entire circuit from input to output, putting the complete sonic experience of these signature power stages in one amp for the very first time.

Want to dive deeper with even more sound customization? Just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, and other internal settings to perfectly match your individual style and touch. Nextone also includes convenient modern features for stage playing, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at manageable volumes. And thanks to Tube Logic, you get to enjoy all the great sound and response of your favorite tube designs without the backbreaking weight and ongoing maintenance hassles.

Nextone Version 3: New Features for Extended Performance Versatility
The free Version 3 update takes the capabilities of Nextone even further with new tone-shaping tools and enhanced features for home, stage, and studio.
• Self Bias—In addition to the Fixed bias options, a Self bias option is now available for all power amp types in the Nextone Editor. Fixed bias provides a punchier response, while Self bias offers a slightly softer, more vintage feel.
• Solo—An independent solo function is now available for the clean and lead channels, complete with level boost and dedicated EQ. The solo function is accessible via the Nextone Editor and can be controlled using the GA-FC Foot Controller.
• New Power Control Setting—The Power Control’s 0.5 watt setting can be reconfigured to 0.2 watts, allowing you to get cranked-amp tones at even lower volume levels. This Power Control behavior can be assigned with a power-up action or the Nextone Editor.
• Delay/Tremolo Panel Switch—Using the panel switch in the Effect section, it’s now possible to toggle between delay, tremolo, and bypass with each press.

For optimal performance, stay up to date with the current Nextone system software and editor

Download “NEXTONE Editor” for Windows/macOS

Specifications

Rated Power Output

80 W

Nominal Input Level

INPUT: -10 dBu (1 M ohm)
RETURN IN: -10 dBu (100 k ohm)

Speaker

30 cm (12 inches) x 1

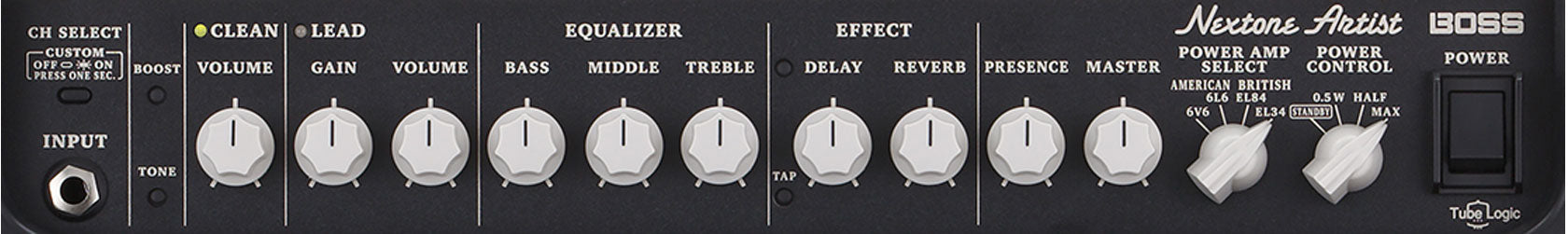

Controls

CH SELECT button
BOOST button
TONE button

[CLEAN]
VOLUME knob

[LEAD]
GAIN Knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[EFFECT]
DELAY button
TAP button
DELAY knob
REVERB knob

PRESENCE knob
MASTER knob
POWER AMP SELECT switch (6V6, 6L6, EL84, EL34)
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
POWER switch

Indicators

CLEAN
LEAD
CUSTOM MODE
BOOST
TONE
DELAY
TAP

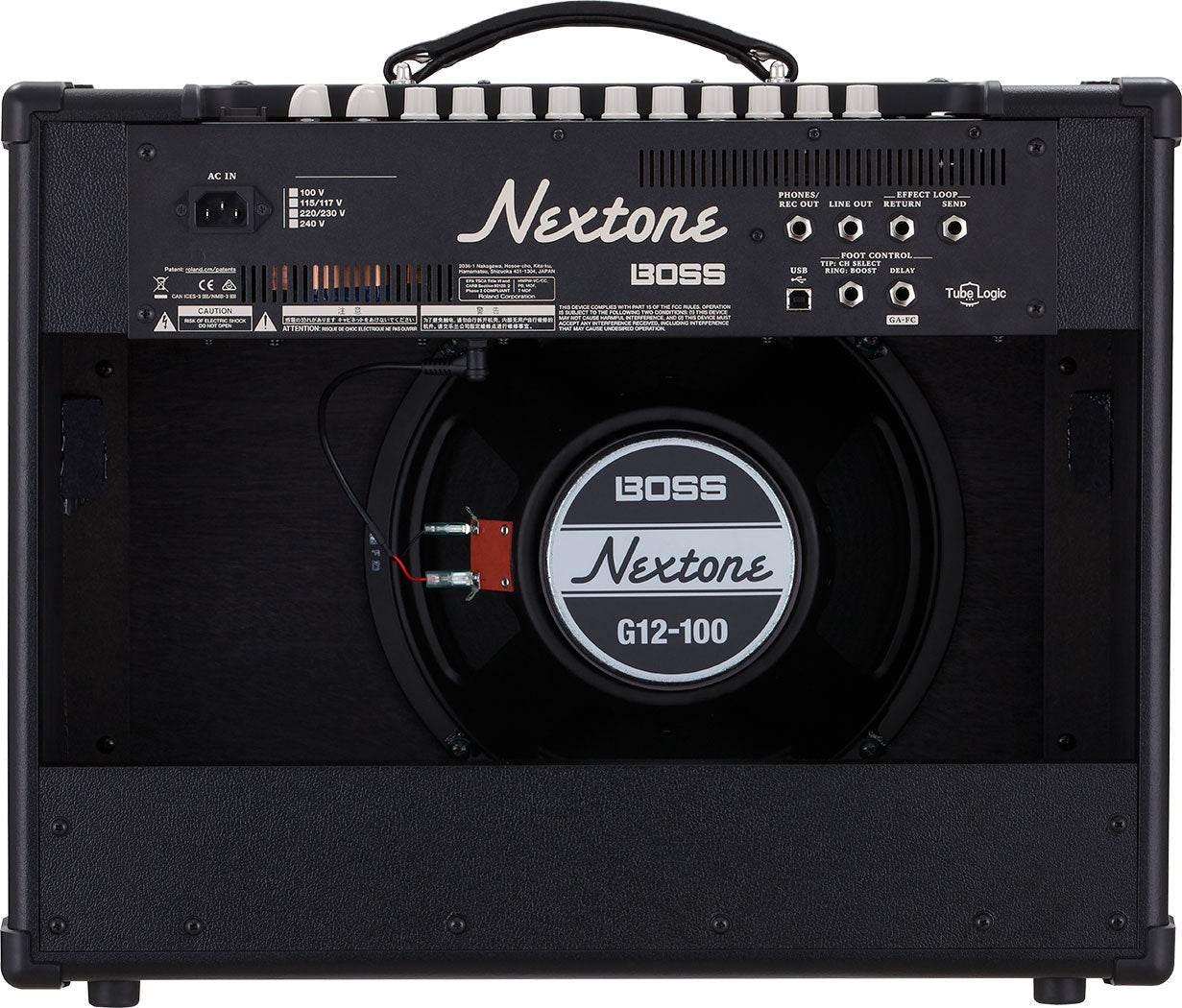

Connectors

INPUT jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
SPEAKER OUT 8 ohms jack: 1/4-inch phone type
CH SELECT/BOOST jack: 1/4-inch TRS phone type
DELAY/GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack

Power Consumption

77 W

Accessories

Owner' s manual
Power cord
GA-FC sticker

Options (sold separately)

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
Amplifier Stand: BAS-1

Size and Weight

Width

572 mm
22-9/16 inches

Depth

248 mm
9-13/16 inches

Height

475 mm
18-3/4 inches

Weight

16.2 kg
35 lbs 12 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
