Midas

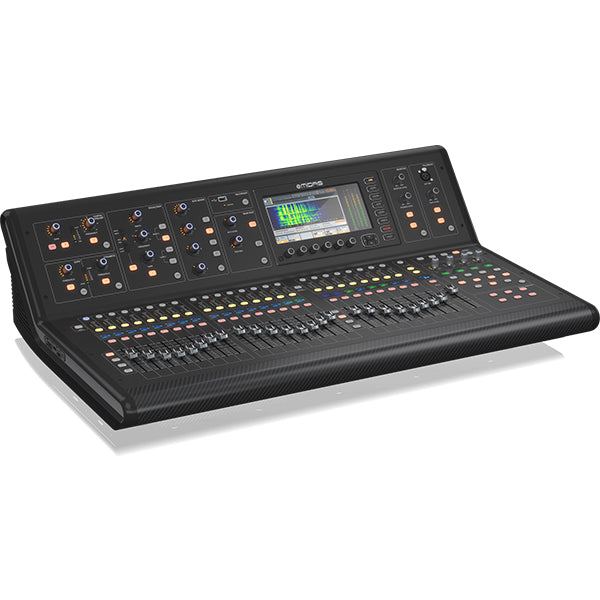

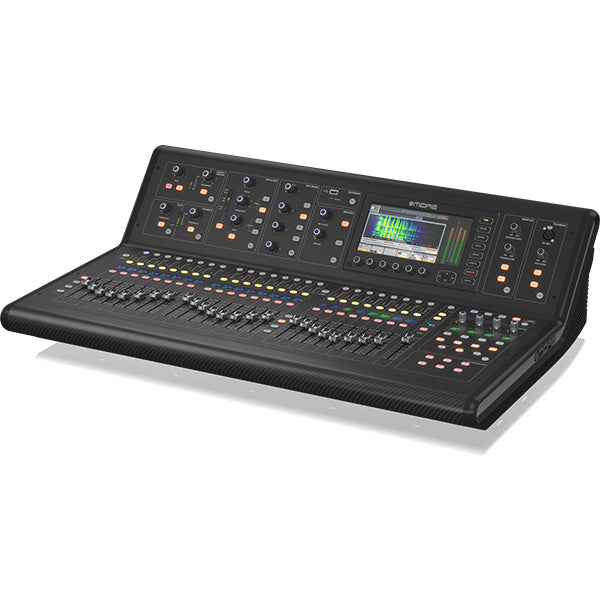

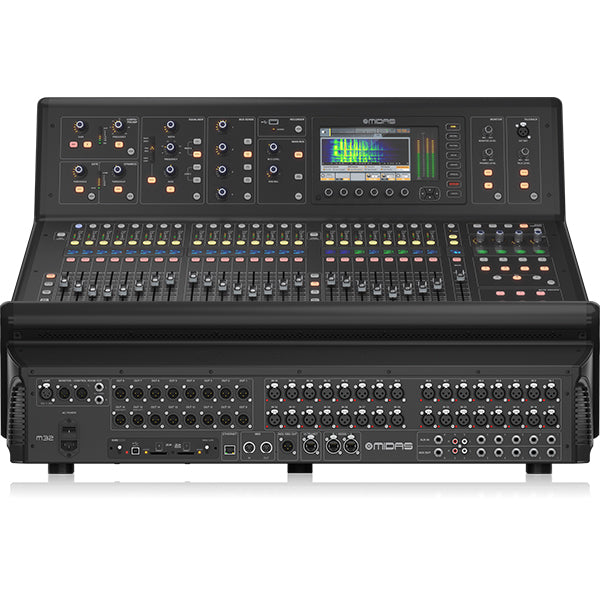

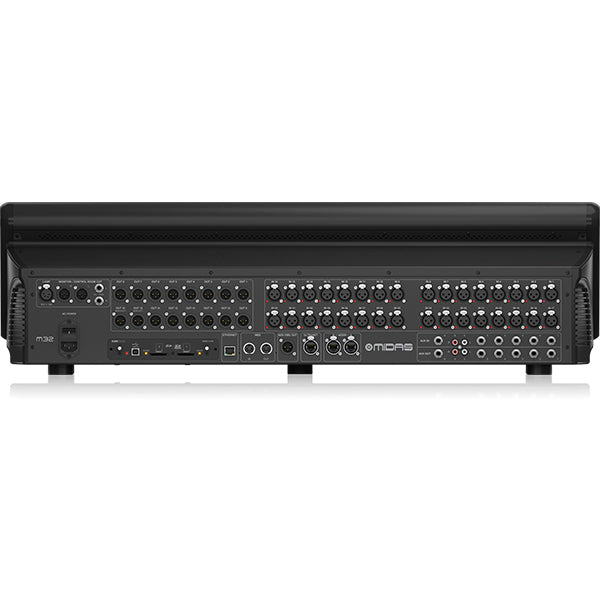

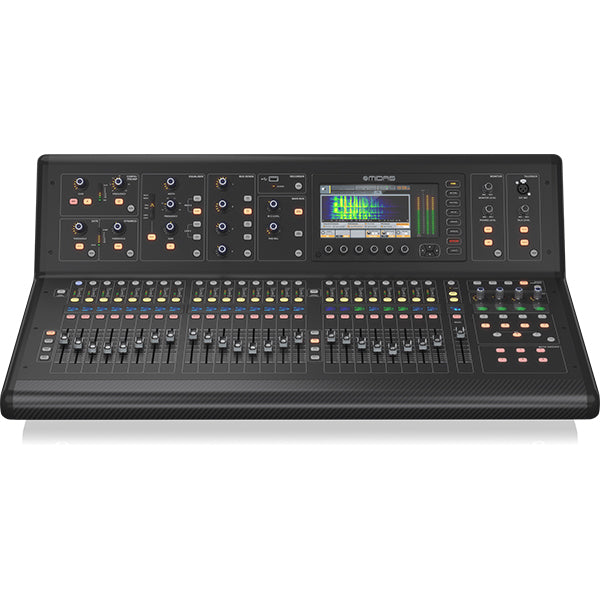

Midas M32 Live 40-Channel Digital Mixing Console With DL32 Stage Box

Midas M32 Live 40-Channel Digital Mixing Console With DL32 Stage Box

Regular price Rs. 580,000.00
Regular price Rs. 799,588.00 Sale price Rs. 580,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

M32 LIVE (CALL FOR BEST PRICE)

Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording
Product Features
  • Live performance and studio recording digital console with up to 40 simultaneous input channels

  • 32 award-winning Midas PRO microphone preamplifiers

  • 25 time-aligned and phase-coherent mix buses

  • AES50 networking allows up to 96 inputs and 96 outputs

  • 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)

  • Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files

  • High-performance carbon fibre, aluminium and high-impact steel structure

  • 40 bit floating point digital signal processing

  • 8 DCA and 6 mute groups

  • 8 digital signal processing effects engines

  • 25 Midas PRO motor faders

  • Daylight viewable 7" full colour TFT display screen

  • 32 x 32 channel USB 2.0 audio interface

  • DAW remote control emulations of Mackie Control and HUI protocols

  • Optional wireless remote control with Midas Apps for iPhone and iPad

  • Auto-ranging universal switch-mode power supply

Designing A Future Classic

Our goal for M32 LIVE was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer.

We began the industrial design process by drawing inspiration from a somewhat unexpected source – the luxury and high-performance car industry.

Why High-Performance Cars?
Why High-Performance Cars?

Simply because the design teams at Aston Martin *, Bentley *, Rolls Royce *, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands. And in essence, that’s the challenge we too faced when creating the M32 LIVE console.

So in order to create a future-forward design that took the Midas legacy even further, we enlisted the help of Rajesh Kutty, a leading industrial designer known for his work with celebrated luxury auto manufacturers such as Bentley, etc.

Kutty started by examining the design elements that have made Midas consoles so highly sought after – from the straightforward, logical layout to the unparalleled usability and ergonomics. These are characteristics that live sound engineers around the world have come to rely on, and are key aspects of the Midas legacy.

With these design elements in mind, Kutty set forth to create a styling that would be modern, innovative, futuristic, and stunningly elegant.

Many different construction materials were tested. Countless design variations were explored. And in the end, a styling was chosen that represented the perfect marriage between aerodynamic artistry and uncompromising performance. The design is both ultramodern and distinctly classic at the same time.

The Landmark in Console History

A close look at M32 LIVE reveals that the styling is completely new in every sense of the word. Rajesh Kutty’s automotive-inspired design elements mesh perfectly with a recognisable Midas signature, setting the M32 LIVE apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.

The Midas M32 LIVE construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32 LIVE employs a predominantly space-frame construction, with parts of the sub-frame consisting of durable and lightweight carbon fibre and aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.

The M32 LIVE is an innovative, evolved design that brings together modern construction principles and high-tech materials into a styling destined to go down as a landmark in console history.

Specification
Processing
Input Processing Channels

32 Input Channels, 8 Aux Channels, 8 FX Return Channels

Output Processing Channels

16

16 aux buses, 6 matrices, main LRC

100

Internal Effects Engines (True Stereo / Mono)

16

Internal Show Automation (structured Cues / Snippets)

500 / 100

Internal Total Recall Scenes (incl. Preamplifiers and Faders)

100

Signal Processing

40-Bit Floating Point

A/D Conversion (8-channel, 96 kHz ready)

114 dB Dynamic Range (A-weighted*)

D/A Conversion (stereo, 96 kHz ready)

120 dB Dynamic Range (A-weighted*)

I/O Latency (Console Input to Output)

0.8 ms

Network Latency (Stage Box In > Console > Stage Box Out)

1.1 ms

Connectors
Midas PRO Series Microphone Preamplifier (XLR)

32

Talkback Microphone Input (XLR)

1

RCA Inputs / Outputs

2

XLR Outputs

16

Monitoring Outputs (XLR / ¼" TRS Balanced)

2

Aux Inputs/Outputs (¼" TRS Balanced)

6

Phones Output (¼" TRS)

2 (Stereo)

Digital AES/EBU Output (XLR)

1

AES50 Ports (Klark Teknik SuperMAC)

2

Expansion Card Interface

32 Channel Audio Input / Output

ULTRANET P-16 Connector (No Power Supplied)

1

MIDI Inputs / Outputs

1

USB Type A (Audio and Data Import / Export)

1

USB Type B, rear panel, for remote control

1

Ethernet, RJ45, rear panel, for remote control

1

Mic Input Characteristics
Design

Midas PRO Series

THD+N (0 dB gain, 0 dBu output)

<0.01% (unweighted)

THD+N (+40 dB gain, 0 dBu to +20 dBu output)

<0.03% (unweighted)

Input Impedance (Unbalanced / Balanced)

10 kΩ / 10 kΩ

Non-Clip Maximum Input Level

+23 dBu

Phantom Power (Switchable per Input)

+48 V

Equivalent Input Noise @ +45 dB gain

-125 dB (22 Hz-22 kHz, unweighted)

CMRR @ Unity Gain (Typical)

>70 dB

CMRR @ 40 dB Gain (Typical)

>90 dB

Input/Output Characteristics
Frequency Response @ 48 kHz Sample Rate

0 dB to -1 dB (20 Hz-20 kHz)

Dynamic Range, Analogue In to Analogue Out

106 dB (22 Hz-22 kHz, unweighted)

A/D Dynamic Range, Output (Typical)

109 dB (22 Hz-22 kHz, unweighted)

Crosstalk Rejection @ 1 kHz, Adjacent Channels

100 dB

Output level, XLR Connectors (Nominal / Maximum)

+4 dBu / +21 dBu

Output Impedance, XLR Connectors (Unbalanced / Balanced)

50 Ω / 50 Ω

Input impedance, TRS Connectors (Unbalanced / Balanced)

20 kΩ / 40 kΩ

Non-Clip Maximum Input Level, TRS Connectors

+21 dBu

Output Level, TRS (Nominal / Maximum)

+4 dBu / +21 dBu

Output Impedance, TRS (Unbalanced / Balanced)

50 Ω / 50 Ω

Phones Output Impedance / Maximum output Level

40 Ω / +21 dBu (Stereo)

Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain

-85 dBu 22 Hz-22 kHz unweighted

Residual Noise Level, Out 1-16 XLR Connectors, Muted

-88 dBu 22 Hz-22 kHz unweighted

Residual Noise Level, TRS and s Monitor out XLR Connector

-83 dBu 22 Hz-22 kHz unweighted

Display
Main Screen

7" TFT LCD, 800 x 480 Resolution, 262k Colours

Channel LCD Screen

128 x 64 LCD with RGB Colour Backlight

Main Meter

24 Segment (-57 dB to Clip)

Power
Switch-Mode Power Supply

Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%

Power Consumption

120 W

Physical
Standard Operating Temperature Range

5°C – 40°C (41°F – 104°F)

Dimensions

891 x 612 x 256 mm (35.1 x 24.1 x 10.1")

Weight

25 kg (55 lbs)

* A-weighted figures are typically ~3 dB better
