ICON Pro Audio
ICON Pro Audio V1-X Recording Control Surfaces
ICON Pro Audio V1-X Recording Control Surfaces
Short Description
Couldn't load pickup availability
V1-X

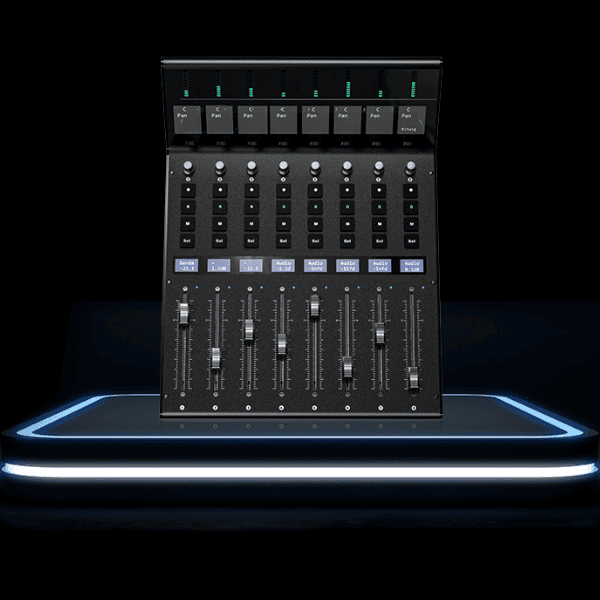

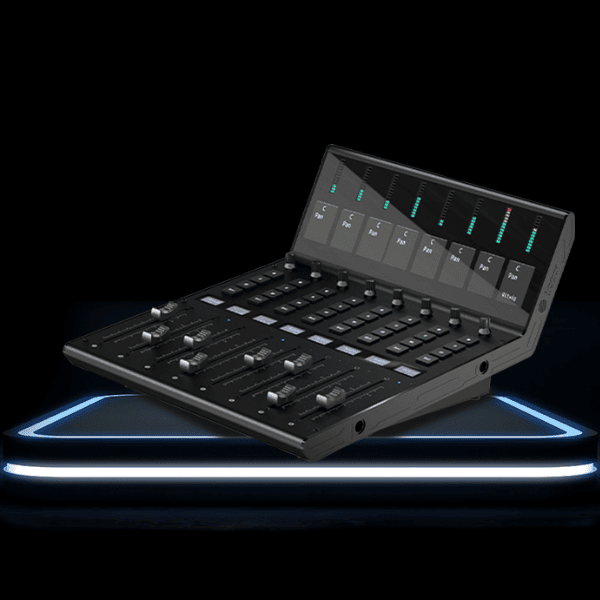

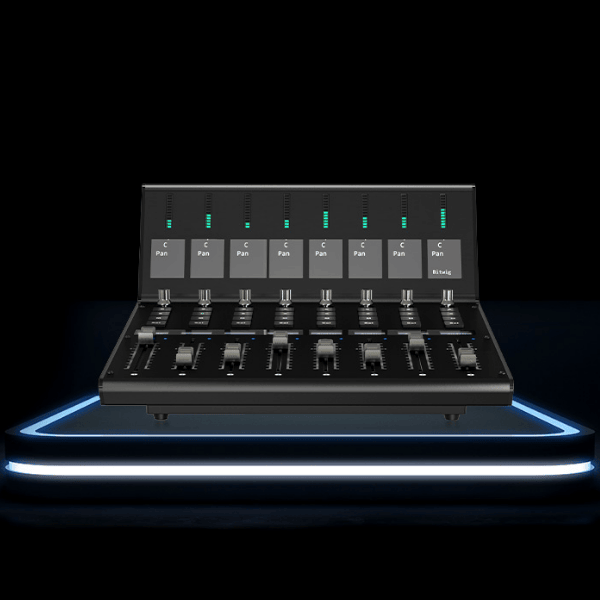

Expand your V1-M to 16, 32, or even 64 channels depending on your DAW with the V1-X DAW Control Extender. Each V1-X houses eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual function encoder knobs, mute, solo, select and record buttons, plus an TFT display showing channel names and different control parameters for each channel. It also includes an LED level meter bridge in a robust metalcasing and a second CD display for use with compatible DAWs.
(Expandability is totally dependent on your Digital Audio Workstation. Please consult your DAW’s manual to determine how many extenders your DAW allows.)
Features
- Functions as an extender for the iCON Pro Audio V1-M MIDI DAW controller
- 8x touch-sensitive motorized faders with 12-bit resolution
- Extremely hardwearing, durable and versatile
- On-board TFT display showing channel name, control values, channel colors etc. (DAW dependent)
- Attractive, modern meter bridge featuring precise, clear and eye-catching LED meters
- Additional, lower 1.1 inch TFT display for each channel (some DAW’s are equipped to display additional information)
- 8 smooth action dual-function encoder knobs (Rotate and Enter)
- Illuminated buttons for channel control including Mute, Solo and Record
- Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
- Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
- iMapTM software downloadable from product page on website
- USB C high-speed connectivity
- Firmware upgrade available via USB C connection and iMapTM software
- Superior build quality and robust metal casing with Kensington lock port
- Superb reliability with Cortex-M7 @500 MHz ARM chip
Tech Specs & Requirements
| Name | Spec |
| Connector | To computer: USB connector (standard type) |
| Power supply | 12V/2.5A DC |
| Current consumption | 2A or less |
| Weight | 3.615kg |
| Dimensions | 309mmx384.5mmx178mm |
Â
Compatibility
- Windows 10 - 11 (with intel/AMD CPU)
- Mac OS 10.9 - 14 (with intel/M1-Series/M2-Series CPU)
Â
What’s In the Box
-
V1-X Master MIDI Ctorl Surface
-
Type C USB Cable
-
External Power Adapter
-
Quick Start Guide
-
Magnetic Pegs x2
