Icon Pro Audio Touch 8 12x12 USB-C Touchscreen Audio Interface

Touch 8

Touch 8 12×12 Audio Interface:Professsional
Studio Power Right on Your Desktop

Features

• 4×4 analog I/O full duplex simultaneous recording and playback

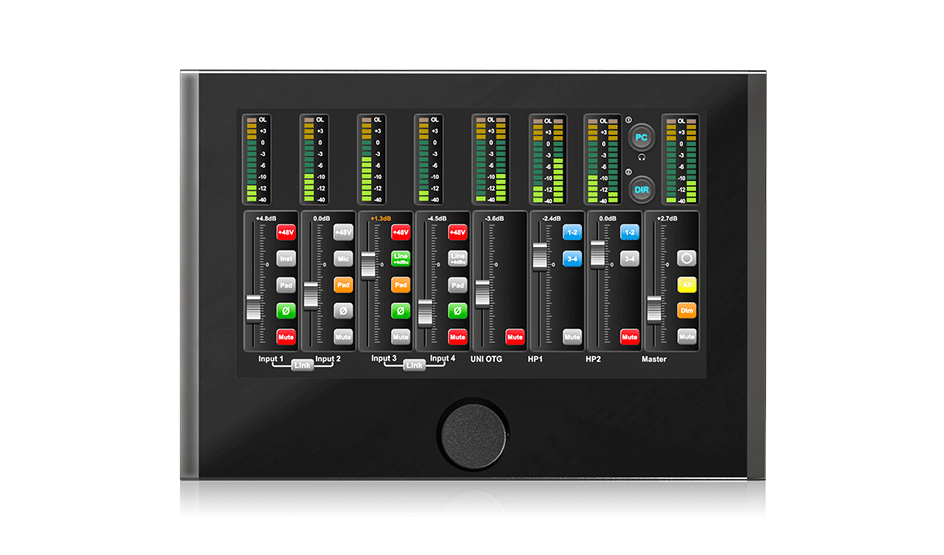

• 10 inch capacitive LCD multi touch screen with wide viewing angles
• Ability to make adjustments on the touchscreen or via iCON iO Pro software
• High quality D-A providing a very high dynamic range of 130dB
• High quality grade A-D providing a very high dynamic range of 128dB
• Eight channels of ADAT optical (1x optical ADAT I/O)
• 24-Bit 192KHz 4 mic-In/inst-In + ADAT connectivity (8 channels) = 12 In x 12 Out capability
• Ability to use plugins in a live context whilst streaming/live via iCON iO Pro software
• Individual input faders and controls (i.e. MUTE, +48v, pad etc.)
• UNI OTG output fader
• Stereo out fader with individual controls (i.e. Dim button for -20 dB attenuation)
• Two 1/4 inch(6.35mm) headphone outputs with individual volume controls and monitoring options (unbalanced)
• Direct monitoring available
• ‘Alt’ button for switching between different monitoring set ups
• Hardware encoder for fine adjustment of digital faders
• UNI OTG connection with high dynamic range and extremely stable performance
• USB-C connector for PC/Mac connectivity
• 4 x Neutrik Combo XLR with 1/4 inch (6.35mm) TRS jacks for mic, line or instruments
• Four analog outputs on 1/4 inch (6.35mm) TRS jacks (balanced)
• Flexible channel routing via iCON iO Pro software
• High-resolution analog mic preamps with 75dB of gain
• ARM Cortex-M7/500MHz processing power (two instances for UNI OTG + USB-C connections)
• ARM Cortex-A7 processor to enable high quality touchscreen functionality
• USB 2.0 true high speed
• Supports Direct Sound, WDM and ASIO 2.0
• Loop Back function possible with iCON iO Pro for both Mac and Windows platforms
• Class-compliant with MacOS 10.15 or above & Windows 10 or above
• +12V DC power supply connector supplied (connector lock included)
• Rugged, high quality construction
• BNC word clock connectors

Tech Specs and Requirements

Downloads

• Smart Install (Drivers/Application) - MacOS
• Smart Install (Drivers/Application) - Windows
• Touch 8 User Manual
• Touch 8 Quickstart Guide

Compatibility

• OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra, macOS 10.14 Mojave, macOS 10.15 Catalina, macOS 11 Big Sur, macOS 12 Monterey, macOS 13 Ventura, macOS 14 Sonoma, macOS 15 Sequoia and macOS 26 Tahoe, Intel and M1 to M4
• Windows 10 (64bit) and Windows 11, Intel and AMD
• iOS 11 and above (including latest iOS 26)

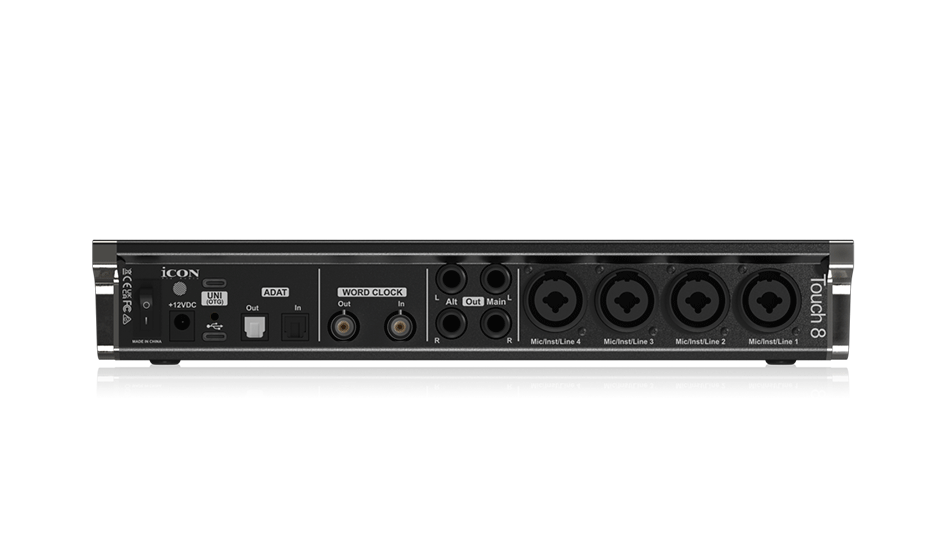

The Touch 8 features four Neutrik® Combo XLR Mic/Line/Inst inputs, offering flexible connectivity with XLR and 1/4-inch (6.35mm) jacks. Combined with four
1/4-inch outputs, this interface provides all the I/O options you need to manage your studio or live setup.

With a UNI OTG USB-C port, you can connect directly to internet streaming services, ensuring pristine audio quality for live broadcasts. Plus, you can use iCON’s
iO Pro software to integrate host based effects like reverb, compressors, and delays seamlessly into your broadcast or live performance.

The iO Pro software works in harmony with the hardware, allowing you to control monitoring, headphone outputs, direct monitoring, and OTG inputs through the
software or directly on the device’s touchscreen. The precision-engineered hardware encoder provides fine control over the digital faders for detailed adjustments.

With robust construction, sleek design, and powerful integration with iO Pro software, the Touch 8 is built to perform at the highest level in professional and
high-end home studios for years to come.

Unmatched Clarity and Power with
Premium Preamps and Converters

 Equipped with high-end preamps delivering an impressive 75dB of gain, the Touch 8 doesn’t compromise on audio
quality. This interface features top-tier digital-to-analog and analog-to-digital converters that match or exceed the
performance of premium competitors. With 128dB analog-to-digital conversion, the Touch 8 offers a stellar 130dB DA
conversion, ensuring expansive, crystal-clear sound in every session.

EFFORTLESS LIVE STREAMING
WITH PRISTINE AUDIO QUALITY

 The UNI OTG connector port on the Touch 8 allows direct connection to internet streaming services on your mobile device,
making it perfect for producers, engineers, or artists who broadcast to social media. With specially developed coding and
dual ARM M7 500MHz chips, this interface provides a stable streaming environment while delivering impeccable audio
quality, ensuring your broadcast sounds flawless every time.

POWERFUL SOFTWARE BUNDLE

TO ELEVATE YOUR CREATIVITY

Unlock your full creative potential with the cutting-edge software suite bundled
with the Touch 8. This impressive collection includes:

 iZotope VEA (Voice Enhancement Assistant): AI-driven audio enhancer for flawless voice recordings.

Harrison AVA Live: Real-time, ultra-low latency channel strip for precise audio processing.

Harrison VIP (Vocal Intensity Processor): Boost vocal presence and clarity for standout performances.

Bitwig 8-Track Studio DAW: A versatile digital audio workstation for all your production needs.

Tracktion DAW Essentials: Must-have tools and plugins for flexible audio editing and mixing.

Kilohearts Toolbox: A suite of creative sound design plugins.

Dotec Audio Plugins: High-quality effects and processors to enhance your sound.

This powerful software bundle ensures you have everything you need to create, edit,

and produce professional-quality audio.

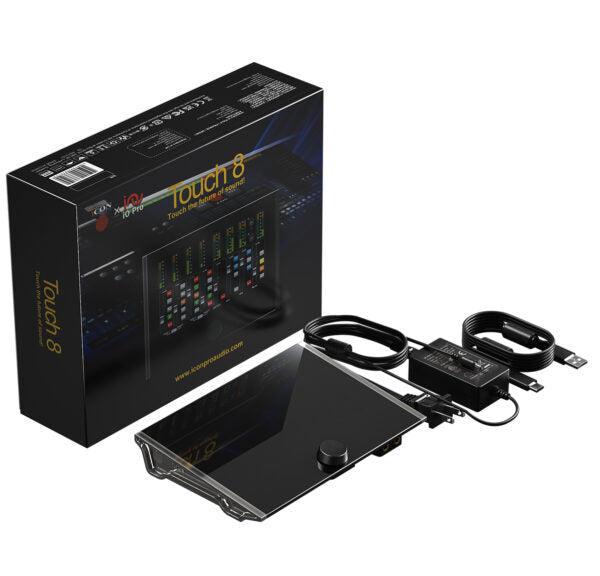

WHAT’S IN THE BOX

• Touch 8

• 12V Power Supply

• USB Cable

• Quickstart Guide
