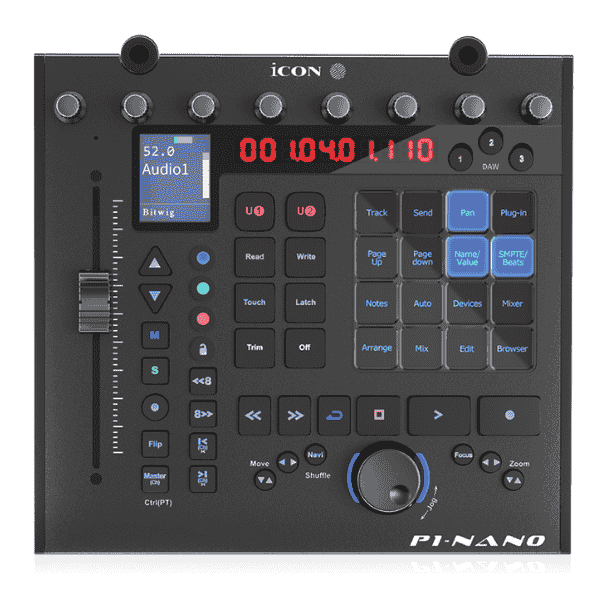

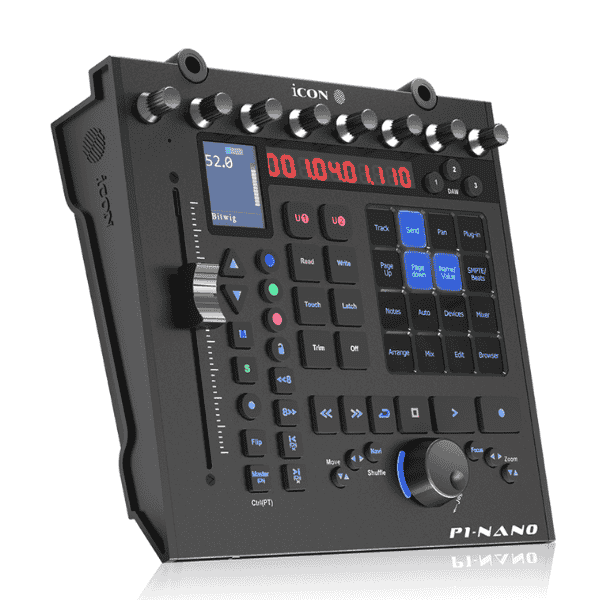

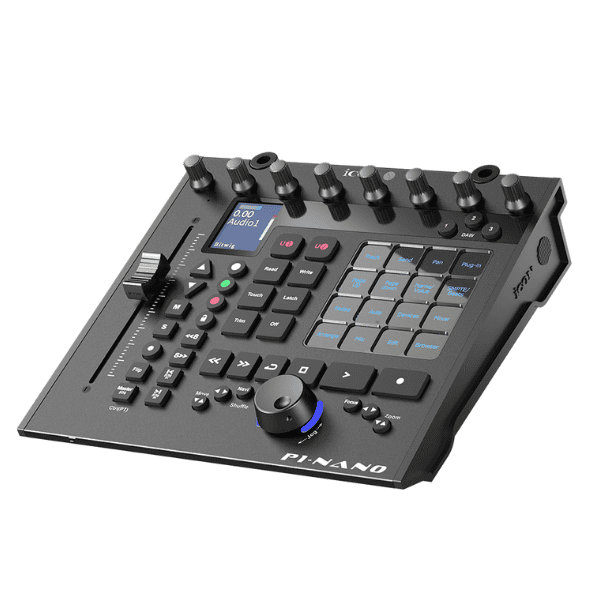

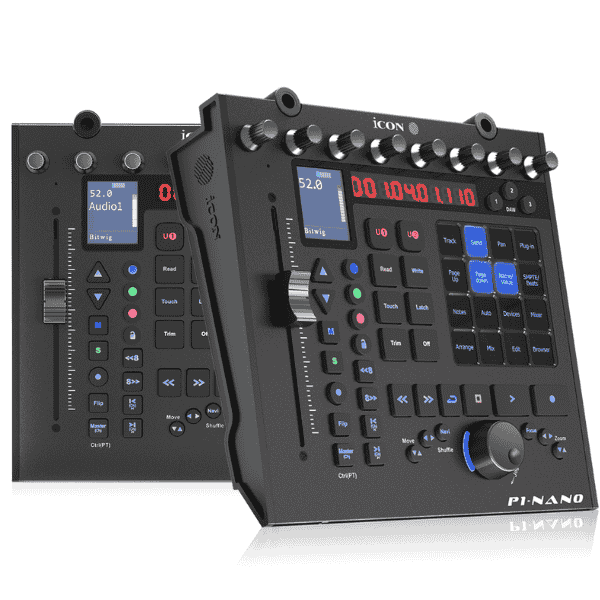

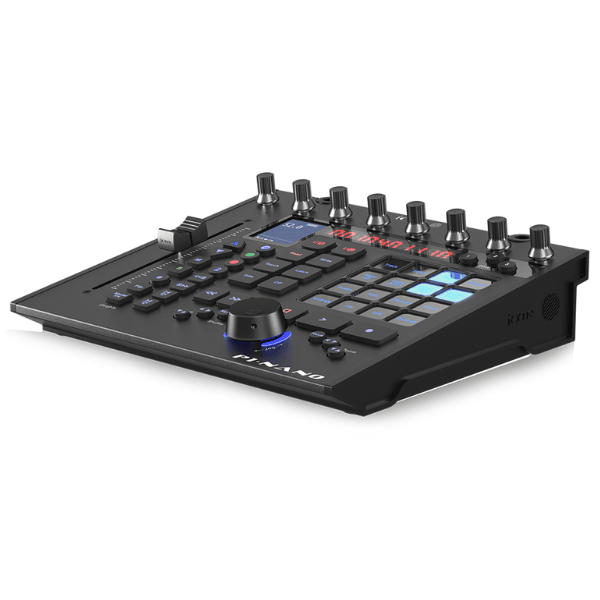

P1-Nano

P1 Nano

The future of single fader DAW controllers has just arrived.

Features

• 1x touch-sensitive motorized fader with 12-bit resolution
• Programmable 4 inch, 16 panel digital touch display showing DAW functions per 5 color modes – a potential total of 80 displayable and actionable functions
• Organize DAW functions in the 16 panel touchscreen easily via ‘drag and drop’ in the iMAP – changes made in real time
• Capability of connecting to 3 DAWs at one time via the DAW select buttons
• Extremely compact, durable and versatile
• On-board display showing channel name, control values, metering etc.
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• 12-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
• Smooth-action jog wheel shuttle for fast search, scrub and control
• Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’ and ‘Off’ – activated/deactivated as required per DAW
• Illuminated buttons for channel control including Mute, Solo and Record
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
• Dedicated ‘Flip’ and ‘Master’ buttons for fader flipping and access to the master channel
• Illuminated “Zoom” button with 2 directional keys (Left/Right & Up/Down) – used in combination with the jog wheel
• Illuminated “Focus” button which allows the user to ‘focus’ in and adjust plug-in & EQ parameters etc. via the smooth-action jog wheel
• 2 illuminated “Track” buttons for selecting individual channels
• 2 illuminated “Bank” buttons for shifting 8-channels at a time
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software downloadable from website product page
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMapTM software
• User A & User B 1/4 inch inputs for connecting footswitch pedals
• D5 display unit available (Optional)
• Class-compliant with MacOS 10.15 or above & Windows 10 or above
• Superior build quality and robust metal casing with Kensington lock port



Tech Specs & Requirements

DAW Integration

• Bitwig/P1 Nano Integration Manual
• Cubase/Nuendo MIDI Remote Script (beta)
• FL Studio Script (beta) by Stephen Baker
• Reaper Script (Driven By Moss)
• Studio One Script by Paul Henty (beta)

Compatibility

• Windows 10 - 11 (with intel/AMD CPU)
• Mac OS 10.9 - 14 (with intel/M1-Series/M2-Series CPU)



The P1-Nano is a powerful full featured DAW controller with a single fader that gives you tactile control of your Digital Audio Workstation allowing you to streamline your workflow and get your projects done faster.

• • Customizable Touchscreen: The P1 Nano has a customizable touchscreen display that can be used to control 5 color coded layers of commands in your DAW and match your specific workflow. Quickly access the controls you need at the touch of a button.
  • Control Plugins and Automation: Use the 8 encoder knobs and the optional D5 display to control your session plugins. Illuminated automation command buttons and the motorized fader are perfect for riding vocals or automating sends.
  • Integration with popular DAWs: The P1 Nano gives you the ability to control up to 3 DAWs at one time with no interruption to your workflow. Control a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools.

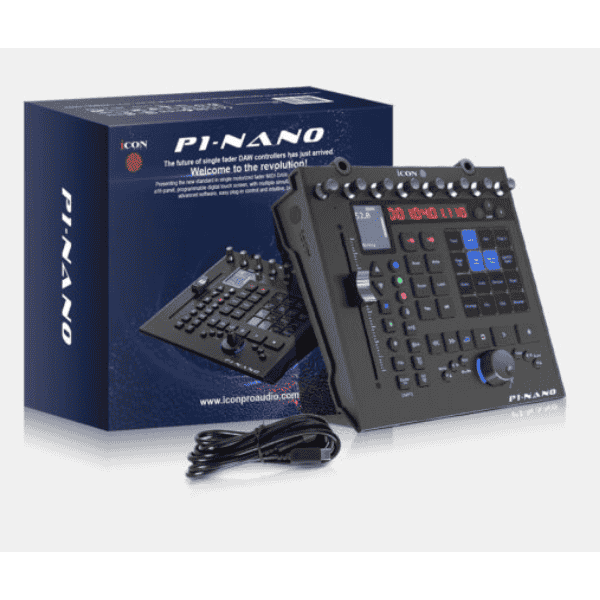

What’s in the package?

P1-Nano USB C – MIDI Controller
USB C Cable
