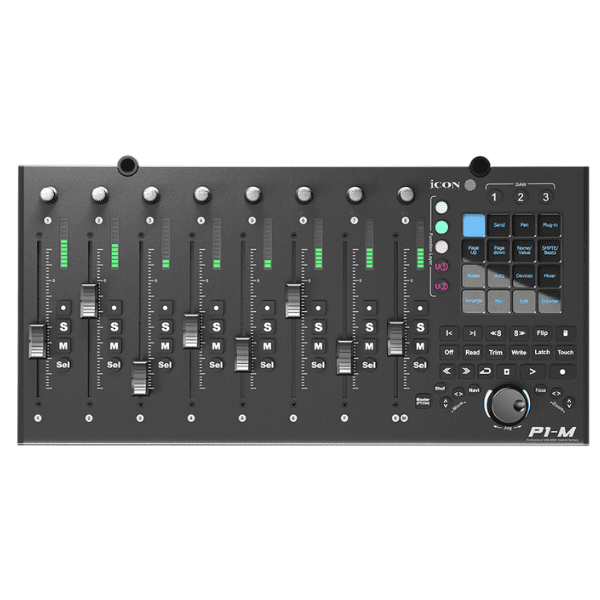

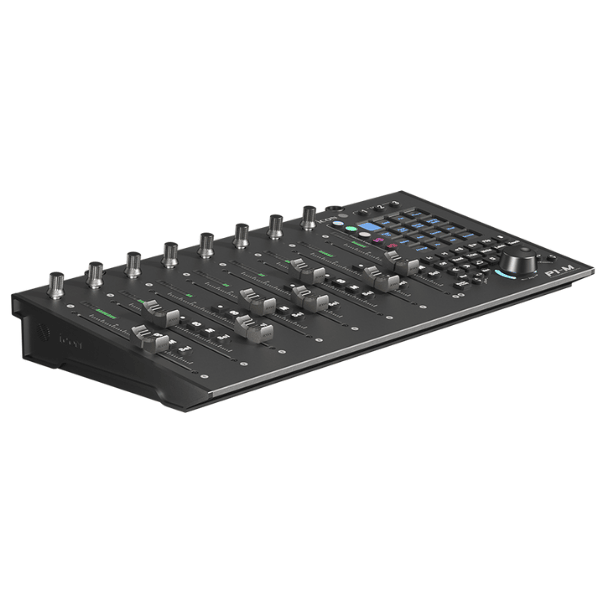

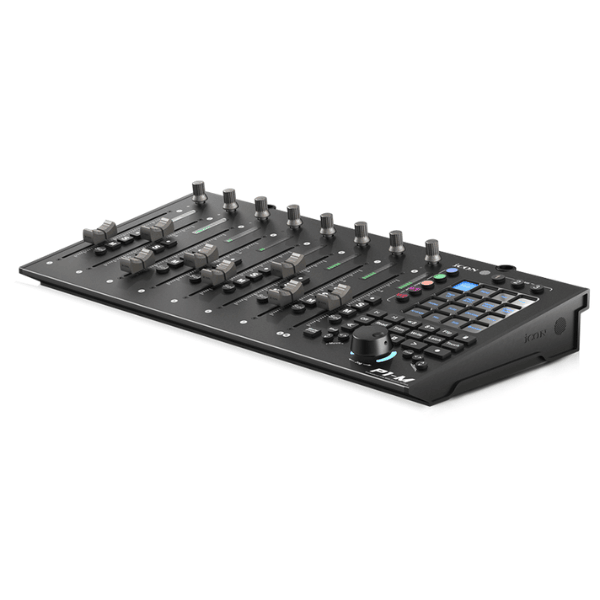

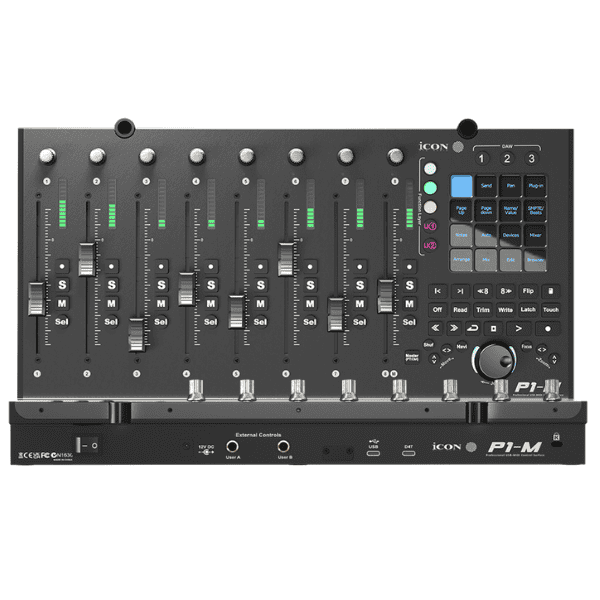

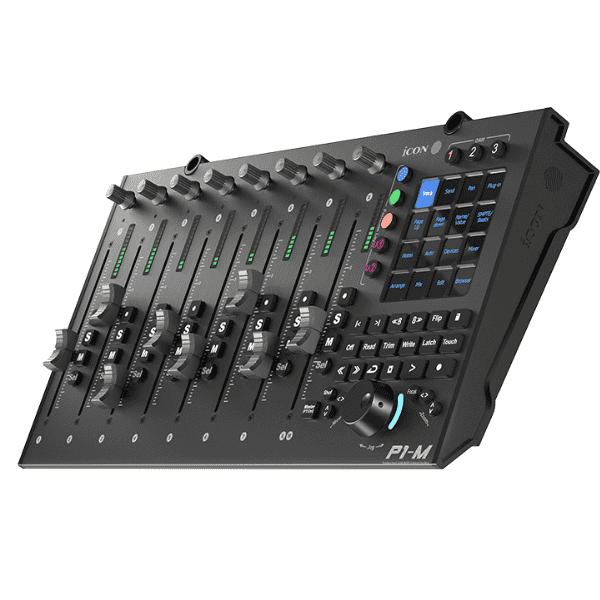

P1-M

P1M

The future of DAW controllers has arrived.

Features

• 8x touch-sensitive motorized faders with 12-bit resolution
• Programmable 4-inch,16 panel digital touchscreen display showing DAW functions with 5 color modes – a potential total of 80 displayable and actionable functions
• Organize DAW functions in the 16 panel touchscreen easily via ‘drag and drop’ in the iMAPTM
• Connect up to 3 DAWs at one time via the DAW select buttons
• Extremely hard wearing, durable and versatile
• Precise, clear and attractive LED meters
• Smooth-action jog wheel shuttle for fast search, scrub and control
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’; and ‘Off’ – activated/deactivated as required by the DAW
• Illuminated buttons for channel control including Mute, Solo and Record
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
• Dedicated ‘Flip’ and ‘Master’ buttons for fader flipping and access to the master channel (Channel 8 becomes the Master channel)
• Illuminated “Zoom” button with 2 directional keys (Left/Right & Up/Down) – used in combination with the jog wheel
• Illuminated ‘Focus’ button which allows the user to “focus” in and adjust plug-in, EQ parameters etc. via the smooth-action jog wheel
• 2 illuminated “Track” buttons for selecting individual channels
• 2 illuminated “Bank” buttons for shifting 8-channels at a time
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software included
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMap TM software

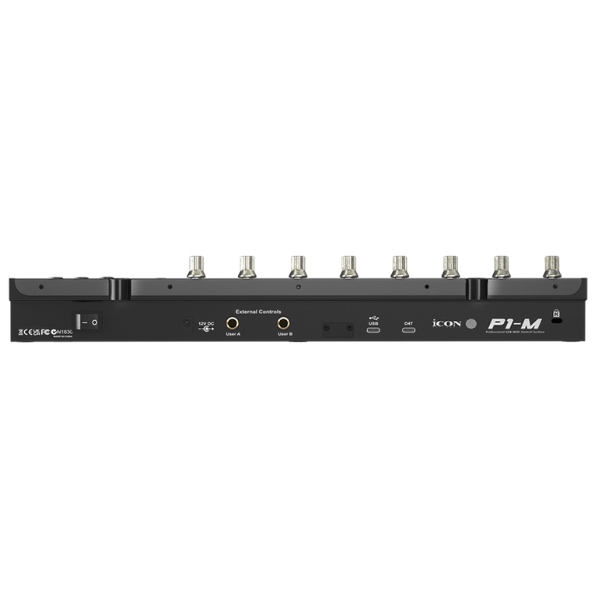

• User A & User B 1/4 inch inputs for connecting footswitch pedals
• Class-compliant with MacOS, Apple Intel and Apple Silicone processors, Windows 10 and Windows 11
• Superior build quality and robust metal casing with Kensington lock port
• Optional D-4T display unit with OLED display showing channel name, control values, channel colors etc., (DAW dependent) and timecode displayed in SMPTE or beat clock (bars.beats.ticks)
• Expandable with the P1-X extender unit (8 channels per P1-X)
• Optional D4 display unit for the P1-X

Tech Specs & Requirements

Name	Spec
Connector:	To computer USB connector
Power supply:	12V/2. 5A DC
Current consumption:	2. 0A or less
Weight:	1.916kg (4.23lb)
Dimensions:	405(L) x 204(W) x 61(H)mm
	15. 9”(L) x 8”(W) x 2. 4”(H)

• DAW Integration
• Bitwig/P1-M Integration Manual
• Cubase/Nuendo MIDI Remote Script by bjoluc (beta)
• FL Studio Script (beta) by Stephen Baker
• Reaper Script (Driven By Moss)
• Sound Devices iMAP and User Guides
• Studio One Script by Paul Henty (beta)

Compatibility

• Windows 10 - 11 (with intel/AMD CPU)
• Mac OS 10.9 - 14 (with intel/M1-Series/M2-Series CPU)

Experience ultimate control with the P1-M DAW controller, designed to revolutionize your productivity and accelerate project completion. This powerful device puts tactile control at your fingertips, streamlining your workflow for a faster and more efficient creative process. Discover the remarkable features that make the P1-M the perfect match for your audio adventures:

• Customizable Touchscreen: A large, customizable touchscreen grants you effortless control over your DAW, tailored to your specific workflow. Access essential controls with ease, all without diverting your focus from the mix.
• Expandable Channels: With 8 motorized faders and the ability to bank 8 channels at a time, the P1-M provides ample control, but it’s expandable up to 64 channels (depending on your DAW) using optional P1-X expansion modules. No matter the complexity of your project, you’ll have full command over your mix.
• Seamless DAW Integration: Compatible with leading DAWs like Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools, the P1-M ensures seamless compatibility with your preferred software. Plus, work with up to 3 DAWs simultaneously, ensuring a smooth and uninterrupted creative experience.

Button Functions

‘Drag and Drop’ your DAW functions to different buttons on the touchscreen function layers

Hot Keys

Program keyboard hot keys into touchscreen functions

MIDI Commands

Setup MIDI commands to use your P1-M as a MIDI
controller for virtual instruments and other software

Mapped with 18 DAWs

The iMAP comes preloaded with maps for 18 DAWs,
but you can still customize the functions if you like

Different Applications

Empower your creativity. The P1-M is just the right size for your
workspace giving you tactile control with faders, knobs and DAW
functions right at your fingertips.





Whether you’re setting up your project studio or working on a large format
console, the P1-M is the perfect controller to complement your workflow.
Its adaptability allows it to seamlessly serve as the heart of your production
suite or integrate effortlessly as an 8 fader DAW controller on your
expansive console setup.

Elevate your podcast, broadcast or channel and streamline your editing workflow with customizable functions for engaging audiences with ease.

With the P1-M, the possibilities are limitless. Depending on your DAW, you have the freedom to add up to 64 channels to your setup. This proves invaluable when tackling intricate projects, brimming with dialogue tracks, or when crafting immersive soundscapes and otherworldly creations





P1-X DAW Control Expander

Expand your P1-M’s capabilities to an impressive 16, 32, or even 64 channels, depending on your DAW, by
incorporating the P1-X DAW Control Expander. Each P1-X module boasts eight touch-sensitive motorized
channel faders with 12-bit resolution, eight dual function encoder knobs, LED meters and essential mute, solo,
select, and record buttons.



Take advantage of the optional D4 TFT display, presenting crucial
channel information such as track names, pan positions, and various
control parameters for each channel. The P1-X DAW Control Expander
empowers you to create a truly personalized control surface, tailored to
your specific needs and your workspace.

Note: The expandability of the P1-X is subject to your Digital Audio
Workstation’s capabilities. Please consult your DAW’s manual to
determine the number of expanders your setup supports.

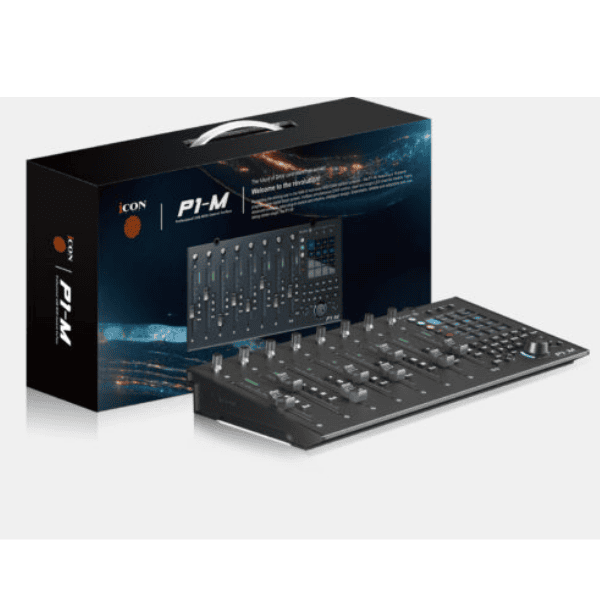

WHAT’S IN THE PACKAGE?

P1-M USB C – MIDI Controller
USB C Cable x 1
AC adaptor x 1
