• neck type
• Atlas-6 HP5pc Wenge/Walnut neck w/KTS™ TITANIUM rods

• top/back/body
• Wenge topWenge backAfrican Mahogany body

• fretboard
• Wenge fretboardMother of Pearl & Abalone oval inlay

• fret
• Medium fretsPrestige fret edge treatment

• number of frets
• 24

• bridge
• MR5S bridge

• string space
• 16.5mm

• neck pickup
• Bartolini® Custom neck pickupPassive

• bridge pickup
• Bartolini® Custom bridge pickupPassive

• equaliser
• Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch

• factory tuning
• 1C,2G,3D,4A,5E,6B

• strings
• D'Addario® EXL165 + .032/.130

• string gauge
• .032/.045/.065/.085/.105/.130

• nut
• Graph Tech® BLACK TUSQ XL® nut

• hardware color
• Gold

• • Scale :
  • 864mm
  • a : Width
  • 54mm at NUT
  • b : Width
  • 83mm at 24F
  • c : Thickness
  • 19.5mm at 1F
  • d : Thickness
  • 23mm at 12F
  • Radius :
  • 500mmR

DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

DESCRIPTION

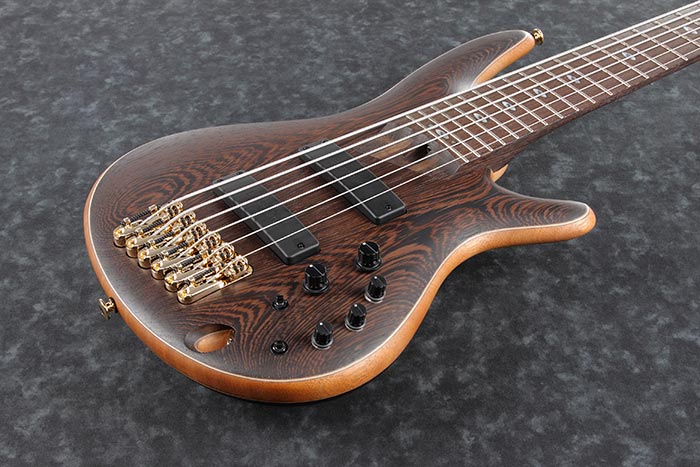

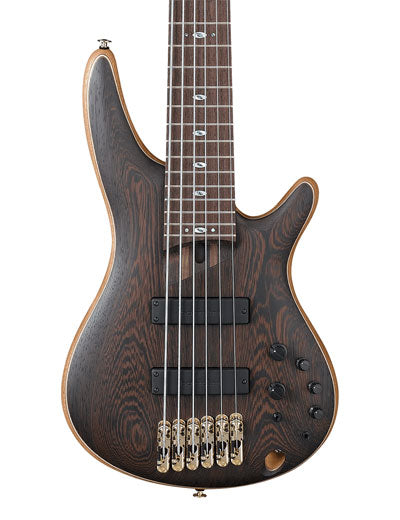

With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

DESCRIPTION

The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.

• Recommended Bag
• IBB724-BK

• Hardshell case included

• Gotoh® machine heads
