Ibanez

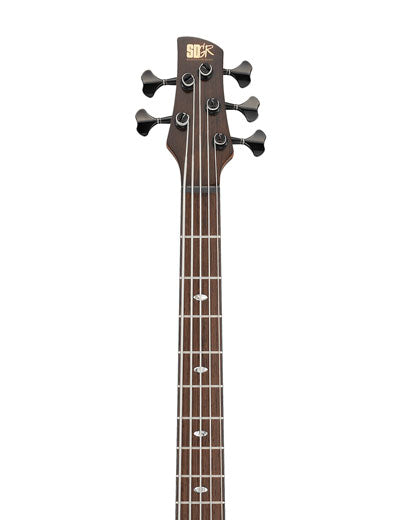

Ibanez Premium SR1305SB Bass Guitar - Magic Wave Low Gloss
Ibanez Premium SR1305SB Bass Guitar - Magic Wave Low Gloss
Share
SR1305SB
5-string Electric Bass with African Mahogany Body, Ash/Panga Panga Top, Panga Panga/Purpleheart Neck, Panga Panga Fretboard, 2 Nordstrand Big Break Pickups, and 3-band EQ - Magic Wave Low GlossMGL : Magic Wave Low Gloss
SPECS
- neck type
- Atlas-55pc Panga Panga/Purpleheart neck w/KTS™ TITANIUM rods
- top/back/body
- Flamed Maple/Bubinga topFlamed Maple/Bubinga backAsh body
- fretboard
- Birdseye Maple fretboardGreen oval inlay
- fret
- Medium fretsPremium fret edge treatment
- number of frets
- 24
- bridge
- MR5S bridge
- string space
- 16.5mm
- neck pickup
- Nordstrand™ Big Break neck pickupPassive
- bridge pickup
- Nordstrand™ Big Break bridge pickupPassive
- equaliser
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
- factory tuning
- 1G,2D,3A,4E,5B
- strings
- D'Addario® EXL165 + .130
- string gauge
- .045/.065/.085/.105/.130
- nut
- Graph Tech® BLACK TUSQ XL® nut
- hardware color
- Gold
NECK DIMENSIONS
-
- Scale :
- 864mm
- a : Width
- 45mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
CONTROLS
DESCRIPTION
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
OTHER FEATURES
- Recommended Case
- MRB500C
- Gig bag included
- Gotoh® machine heads
Features
Birdseye Maple fretboard
Birdseye Maple has a unique wood grain and features a well-balanced tonal character from low to high end.
Nordstrand™ Big Break pickups
Nordstrand™ "Big Break" pickups cram a meaty split coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil tone with noiseless performance.
Atlas 5pc Panga Panga/Purpleheart neck with KTS™ TITANIUM rods
The Atlas 5pc Panga Panga/Purpleheart neck provides a well-balanced note attack and tone with rich sustain.The neck is constructed with KTS™ TITANIUM reinforcement rods, increasing its stability and adding sustain.
Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth, comfortable performance.
MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.
