Ibanez
Ibanez Bass Workshop EHB1505MS 5-String Multi-Scale Bass Guitar With Bag - Black Ice Flat
Ibanez Bass Workshop EHB1505MS 5-String Multi-Scale Bass Guitar With Bag - Black Ice Flat
Share
5-string Electric Bass with African Mahogany Body, Poplar Burl Top, Panga Panga/Walnut Neck, Panga Panga Fretboard, 2 Nordstrand Big Split Pickups, and 3-band EQ - Black Ice Flat
Features
Ergonomic body design
The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.

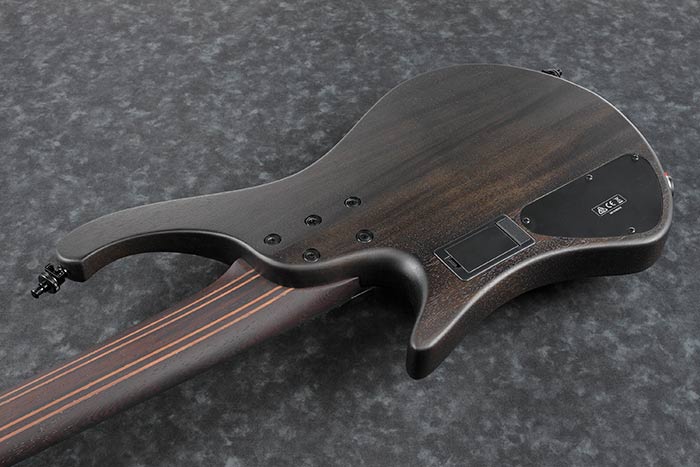

Slanted body back
The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.
Comfortably rounded body edge, Chambered body
Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.
Scooped cut on the body back
There is extra carving on the back of the body behind the lower horn for easier upper fret access.
5pc Roasted Maple/Walnut neck w/Graphite reinforcement rods
The Roasted Maple in the neck is heat-treated to increase stability, durability, moisture resistance, and tolerance of temperature changes.
Luminescent side dot inlays
Luminescent side dot inlay provides clear visibility in dark environments.
Vari-Mid 3-Band EQ w/EQ bypass switch
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds. There is also an EQ bypass switch for passive operation with the treble control acting as a passive tone control when the EQ is bypassed.
MR5HS mono rail bridge w/string spacing adjustable saddles
The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.
Schaller S-Locks strap pins and Neutrik locking jack
Schaller S-Lock strap lock pins and a Neutrik locking jack hold the strap and cable securely.
Detachable Finger ramp
A detachable Finger ramp is included for comfortable finger picking.
SPECS
-
neck typeEHB45pc Roasted Maple/Walnut neck w/Graphite reinforcement rods
-
top/back/bodyAmerican Basswood body
-
fretboardRoasted Birdseye Maple fretboard Off-set Abalone dot inlay
-
fretMedium Stainless Steel frets
-
number of frets24
-
bridgeMR5HS bridge
-
string space19mm
-
neck pickupBartolini® BH2 neck pickup Passive
-
bridge pickupBartolini® BH2 bridge pickup Passive
-
equaliserVari-mid 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
-
factory tuning1G,2D,3A,4E
-
stringsD'Addario® EXL165
-
string gauge.045/.065/.085/.105
-
hardware colorBlack
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width41mm at NUT
-
b : Width64mm at 24F
-
c : Thickness19.5mm at 1F
-
d : Thickness21.5mm at 12F
-
Radius :500mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
CONTROLS
DESCRIPTION
With the bass held in the playing position, there are two stacked knobs towards the end of the body, near the input jack. The top control of the stacked knobs closest to the lowest edge of the body is the treble boost/cut, and the bottom knob is the bass boost/cut. The top control of the stack next to the mini switch is the mid boost/cut, and the lower knob is the mid frequency sweep. There are two small knobs along the lower edge of the body. The knob closest to the neck is the volume knob, and the knob between the volume control and the stacked knobs is the pickup balancer. Positioned above these knobs is the EQ bypass. When the switch is in neck position, the EQ is off. When the switch is in bridge position, the EQ is on. When EQ is off, the treble boost/cut knob functions as a passive tone control.
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at about 20 Hz, the variable width becomes smaller as it goes to the high range, and the variable width becomes zero at around 1000 Hz. The variable range of the peak frequency is approximately ±20 dB. The treble boost/cut frequency curve draws a curve with a peak at around 20000 Hz and a variable width of zero near 100 Hz. The variable range of the peak frequency is approximately ±20 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak varies from around 100 Hz to around 6000 Hz. The variable range of the peak frequency is approximately ±15 dB.
OTHER FEATURES
- Recommended Case
- MRB350C
- Gig bag included
- Luminescent side dot inlay
- Schaller S-Locks strap lock pins
- Ibanez custom headpieces
