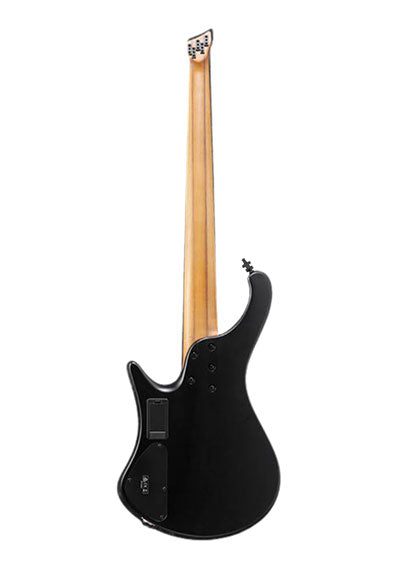

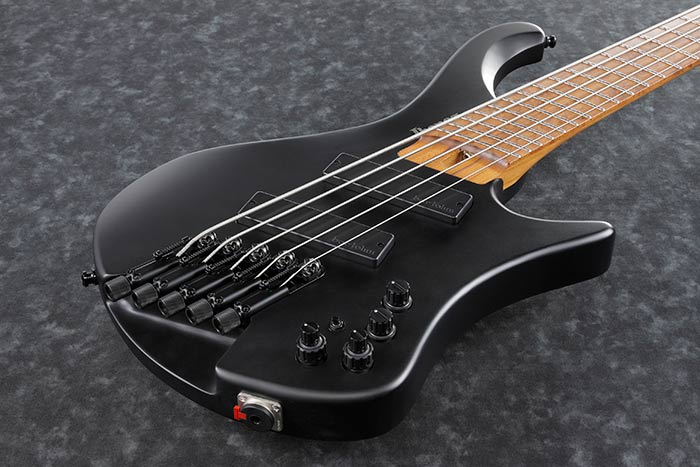

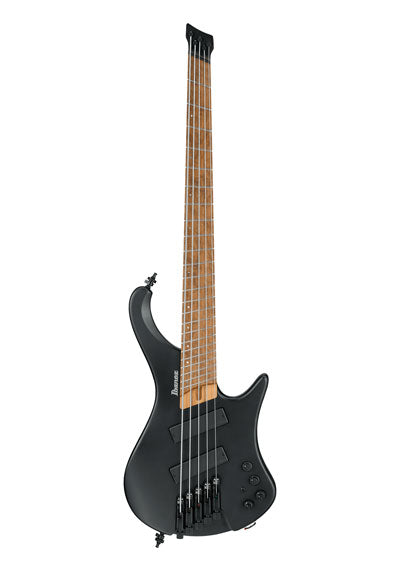

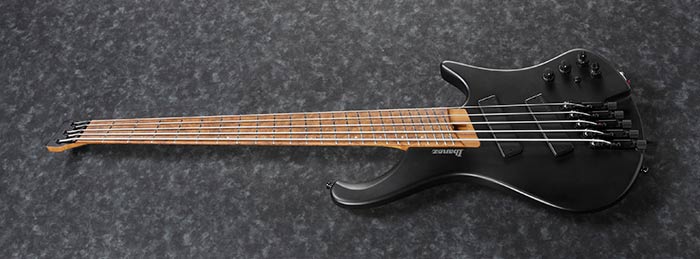

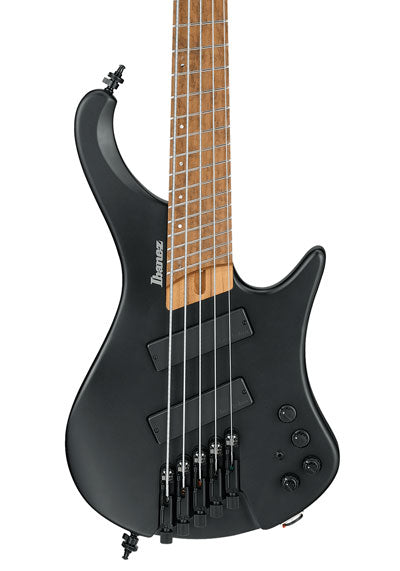

Ibanez Bass Workshop EHB1005MS Bass Guitar - Black Flat

Ergonomic body design

The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.

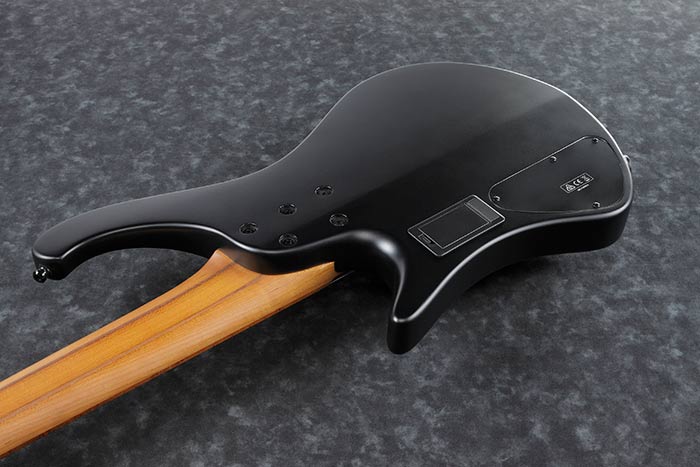

Slanted body back

The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Comfortably rounded body edge, Chambered body

Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.

Scooped cut on the body back

There is extra carving on the back of the body behind the lower horn for easier upper fret access.

5pc Roasted Maple/Walnut neck w/Graphite reinforcement rods

The Roasted Maple in the neck is heat-treated to increase stability, durability, moisture resistance, and tolerance of temperature changes.

Luminescent side dot inlays

Luminescent side dot inlay provides clear visibility in dark environments.

Vari-Mid 3-Band EQ w/EQ bypass switch

The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds. There is also an EQ bypass switch for passive operation with the treble control acting as a passive tone control when the EQ is bypassed.

MR5HS mono rail bridge w/string spacing adjustable saddles

The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.

Schaller S-Locks strap pins and Neutrik locking jack

Schaller S-Lock strap lock pins and a Neutrik locking jack hold the strap and cable securely.

Detachable Finger ramp

A detachable Finger ramp is included for comfortable finger picking.

SPECS

• neck type
  EHB45pc Roasted Maple/Walnut neck w/Graphite reinforcement rods
• top/back/body
  American Basswood body
• fretboard
  Roasted Birdseye Maple fretboardOff-set Abalone dot inlay
• fret
  Medium Stainless Steel frets
• number of frets
  24
• bridge
  MR5HS bridge
• string space
  19mm
• neck pickup
  Bartolini® BH2 neck pickupPassive
• bridge pickup
  Bartolini® BH2 bridge pickupPassive
• equaliser
  Vari-mid 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
• factory tuning
  1G,2D,3A,4E
• strings
  D'Addario® EXL165
• string gauge
  .045/.065/.085/.105
• hardware color
  Black

NECK DIMENSIONS

CONTROLS

DESCRIPTION

With the bass held in the playing position, there are two stacked knobs towards the end of the body, near the input jack. The top control of the stacked knobs closest to the lowest edge of the body is the treble boost/cut, and the bottom knob is the bass boost/cut. The top control of the stack next to the mini switch is the mid boost/cut, and the lower knob is the mid frequency sweep. There are two small knobs along the lower edge of the body. The knob closest to the neck is the volume knob, and the knob between the volume control and the stacked knobs is the pickup balancer. Positioned above these knobs is the EQ bypass. When the switch is in neck position, the EQ is off. When the switch is in bridge position, the EQ is on. When EQ is off, the treble boost/cut knob functions as a passive tone control.

FREQUENCY RESPONSE

DESCRIPTION

The bass boost/cut frequency curve has a peak at about 20 Hz, the variable width becomes smaller as it goes to the high range, and the variable width becomes zero at around 1000 Hz. The variable range of the peak frequency is approximately ±20 dB. The treble boost/cut frequency curve draws a curve with a peak at around 20000 Hz and a variable width of zero near 100 Hz. The variable range of the peak frequency is approximately ±20 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak varies from around 100 Hz to around 6000 Hz. The variable range of the peak frequency is approximately ±15 dB.

OTHER FEATURES
