Effects Digital Audio Signal Processing
24-bit depth, 44.1kHz sample rate
Frequency Response
20Hz – 20kHz ± 1dB
Dynamic Range
Max. 127dB (digital to analog)
Effects
460 (incl. global EQ)
No. of Effect Modules
16
Effects Slots
Total of 12 simultaneous effects slots
Patches
300
Looper Time
Stereo 60 seconds

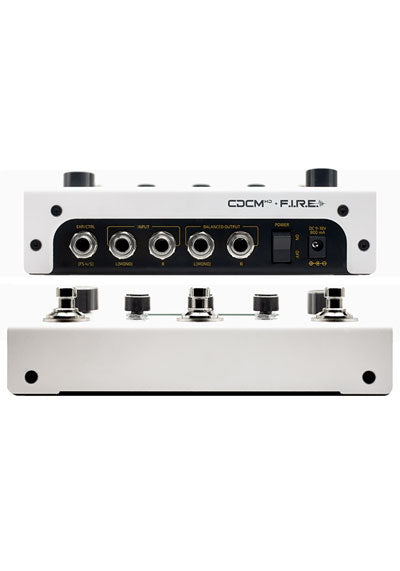

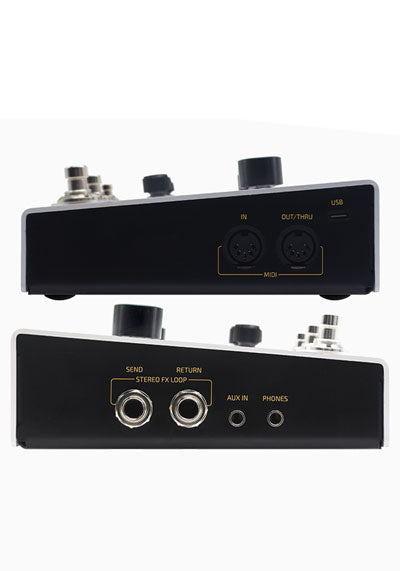

Inputs
Two 1/4″ Tip Sleeve (TS) instrument jacks with individual input mode selector
One 1/8″ Stereo Auxiliary In (Aux In) jack
One 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jack
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack
One Standard 5 pin MIDI input jack
Outputs
Two 1/4″ Tip Ring Sleeve (TRS) balanced stereo output jacks
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack
One 1/8″ stereo headphones output jack
One standard 5 pin MIDI output jack
Input Impedance
Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ
FX Loop Return: 100kΩ
Aux In: 10kΩ
Output Impedance
Output: 1kΩ
FX Loop Send: 1kΩ
Headphones: 47Ω
Input Level
Input: -17.78dBu (Nominal); 14.5dBu (Max)
FX Loop Return: -17.78dBu (Nominal); 14.5dBu (Max)
Aux In: -17.78dBu (Nominal); 20dBu (Max)
Output Level
Output: -11.76dBu (Nominal); 26.25dBu (Max)
FX Loop Send: -17.78dBu (Nominal); 14.5dBu (Max)
Headphones: -7.4dBu (Nominal); 18.3dBu (Max)

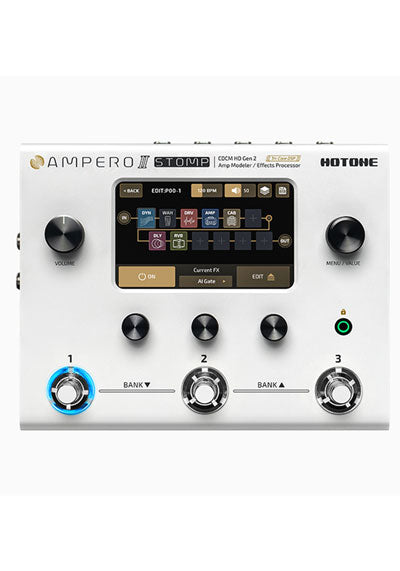

Screen
4″ 800 x 480 Color Dynamic Display Touch Screen
USB Port
USB 2.0 Type-C port, supports USB Audio 2.0
Impulse Response/IR processing
Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs
Power Requirements
9-18V DC Center Negative
Current Consumption
800mA Max (9V DC)
Dimensions
185mm(W) × 145mm(D) × 58mm(H)
Weight
1050g
