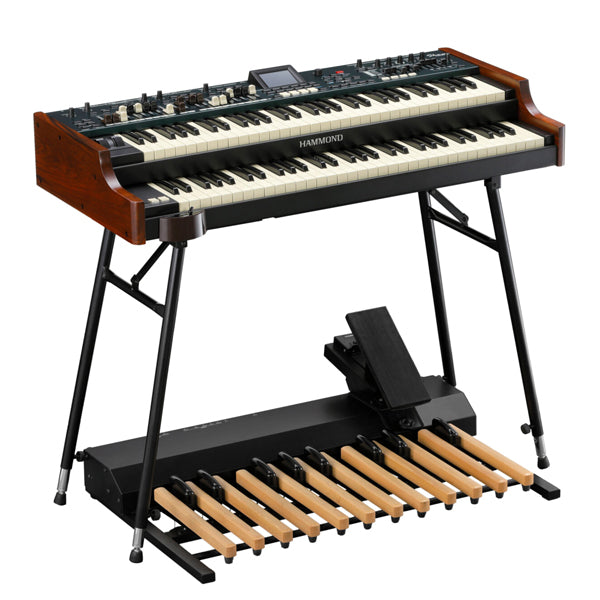

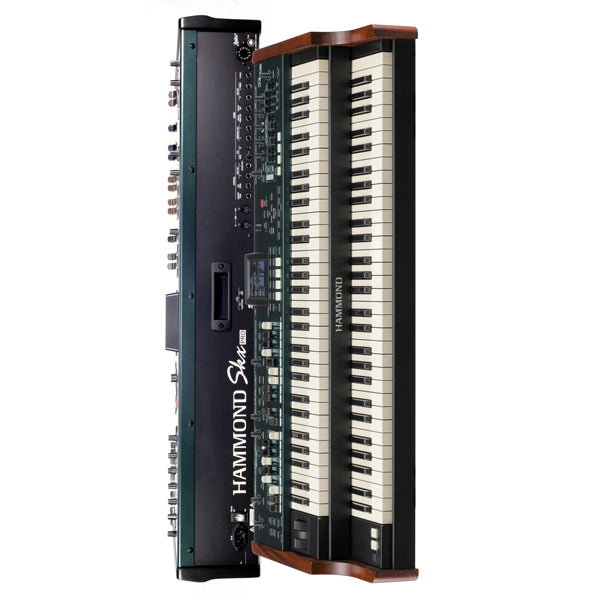

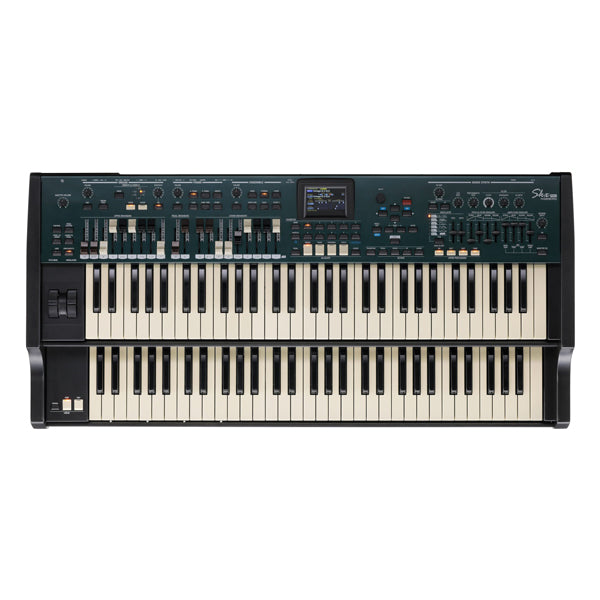

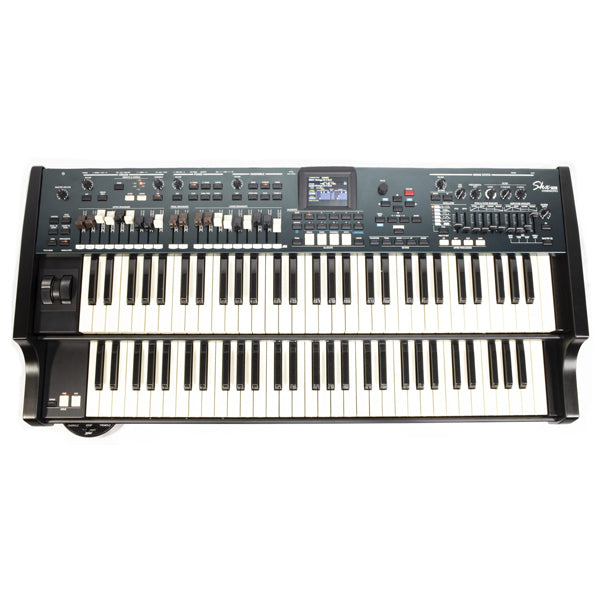

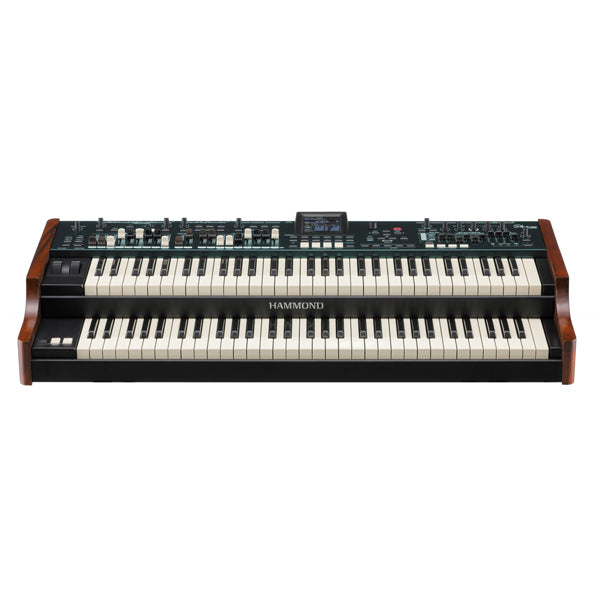

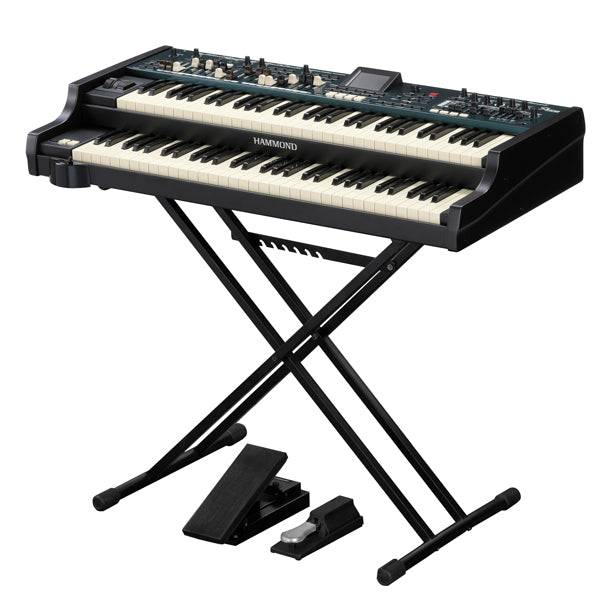

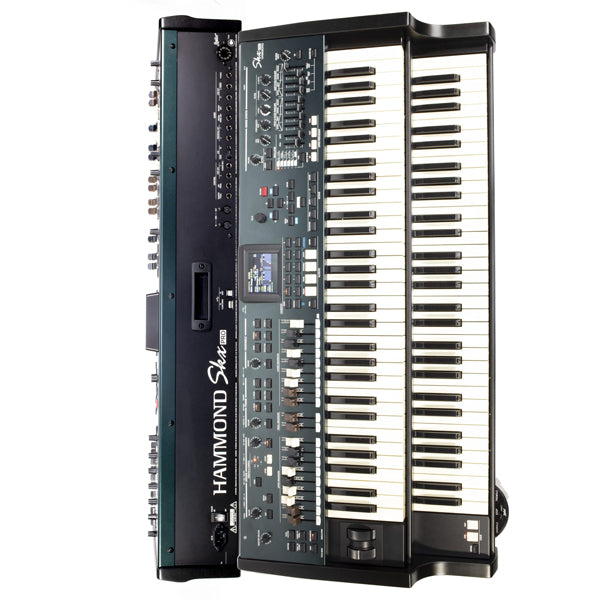

Hammond SKX Pro Dual 61-key Stage Keyboard/Organ

The Artists Speak About The SkxPRO

Terry Lawless

SkxPRO Specifications

Sound Engine:

• Organ Section: MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)
• Piano/Ensemble Section: Sampling Sound Engine, Polyphony：128
• Mono Synth Section: Analog Modeling Synthesizer, Monophonic

Keyboard:

• Dual 61, with velocity, semi-weighted, Square-front ("Waterfall"・-style)
• 61 note C1 to C6

Organ Section:

• Parts: 3 (Upper, Lower, Pedal)
• Drawbars: 3 sets, [Upper, Lower 9 pitches] Pedal, 2 pitches
• Voicing:Upper & Lower: 8(A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe), Pedal: 3 (Normal, Muted, Pipe)
• Percussion: Buttons: On, Volume Soft, Decay Fast, Third Harmonic

Piano/Ensemble Section:

• Component: 4, LFO: 2

Mono Synth Section:

• Oscillator: 6 types (Duo, Unison, Pulse, Sync, FM, Noise)
• Filter: 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
• Modulator: LFO: 1, EG: 2 (Pitch&Filter, Amplitude)

Effects:

  Organ Section: Vibrato & Chorus , Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer , Leslie, Equalizer & Tone Control

  Piano/Ensemble Section: For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer

  Mono Synth Section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer

  Master: Equalizer, Reverb

Key Map:

  Internal Zone: Transpose, Octave, Split, Pedal To Lower, Lower to Pedal, Allocate, Pedal Sustain

  External Zones: 3 Zones (assignable to each keyboard)

Controllers:

  Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)

Memory:

  Favorites: 10 banks x 10 numbers (Combination), 10 numbers (Page)

  Combination: Factory: 100, User: 100, Bundle: 100, Manual

  Organ Patch: Factory: 100, User: 100, Bundle: 100

  Piano / Ensemble Patch: Factory: 300, User: 400

  Mono Synth Patch: Factory: 100, User: 100, Bundle: 100

  Custom Tone Wheel: Factory: 4 x 3, User: 4 x 3

  Custom Pedal Registration: Factory: 3, User: 3

  Custom Pipe: Factory: 3, User: 3

  Custom Cabinet: Factory: 8, User: 8

Storage:

  Internal Memory, USB Flash Drive

Display:

  320 x 240 pixel, Tilted for improved viewing

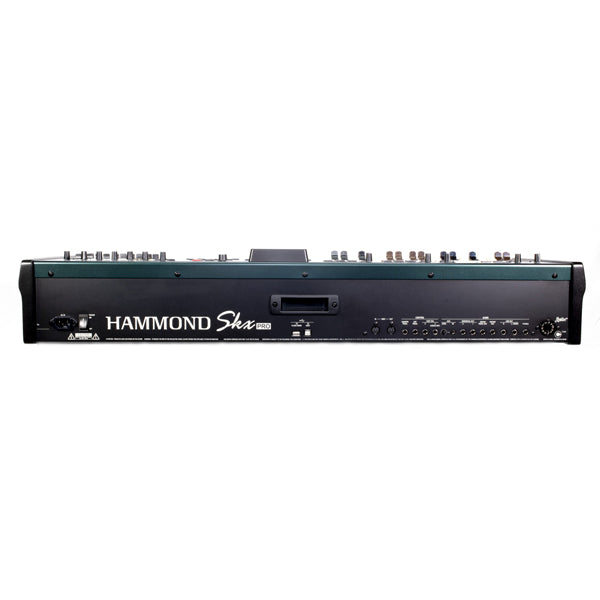

Connections:

  MIDI: IN, OUT

  USB: To Host

  Audio: Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)

  Leslie: 11- pin, 1 and 3 channels available

  Others: Foot Switch 1/Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal

Rated Power Consumption:

  22W

Dimensions:

  SkxPRO: 1002mm (W), 479mm (D), 183mm (H) [39.5" (W), 19" (D), 7.2" (H)]

Weight:

  SkxPRO: 16.9kg [37.25 lbs]

Accessory:

  AC cord
