Product Name
Quantum HD 8 USB-C Audio Interface
Series
Quantum
Color
Black
Fender Studio
Fender Studio Quantum HD 8 USB-C Audio Interface
Fender Studio Quantum HD 8 USB-C Audio Interface
Short Description
Regular price
Rs. 116,990.00
Regular price
Rs. 129,700.00
Sale price
Rs. 116,990.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

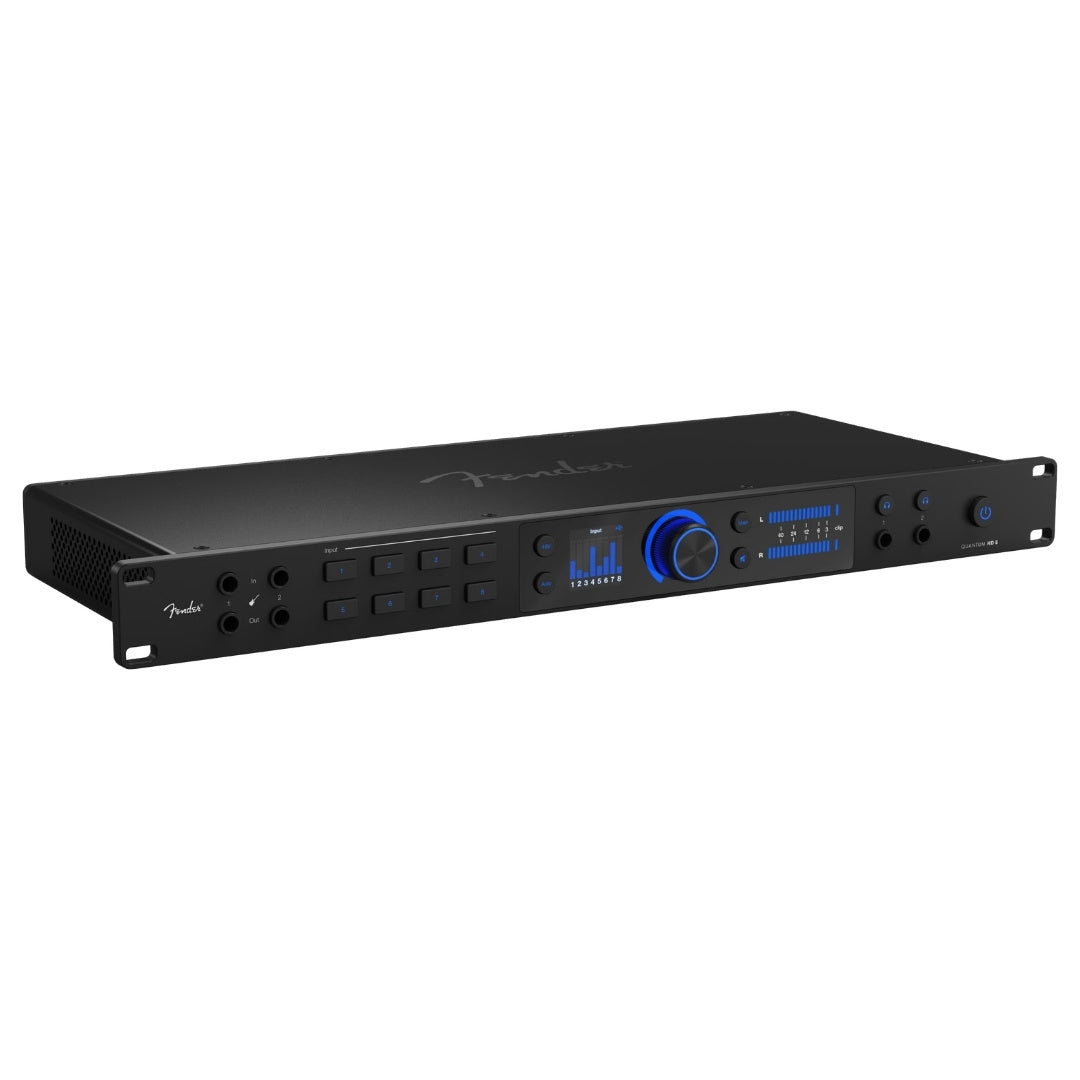

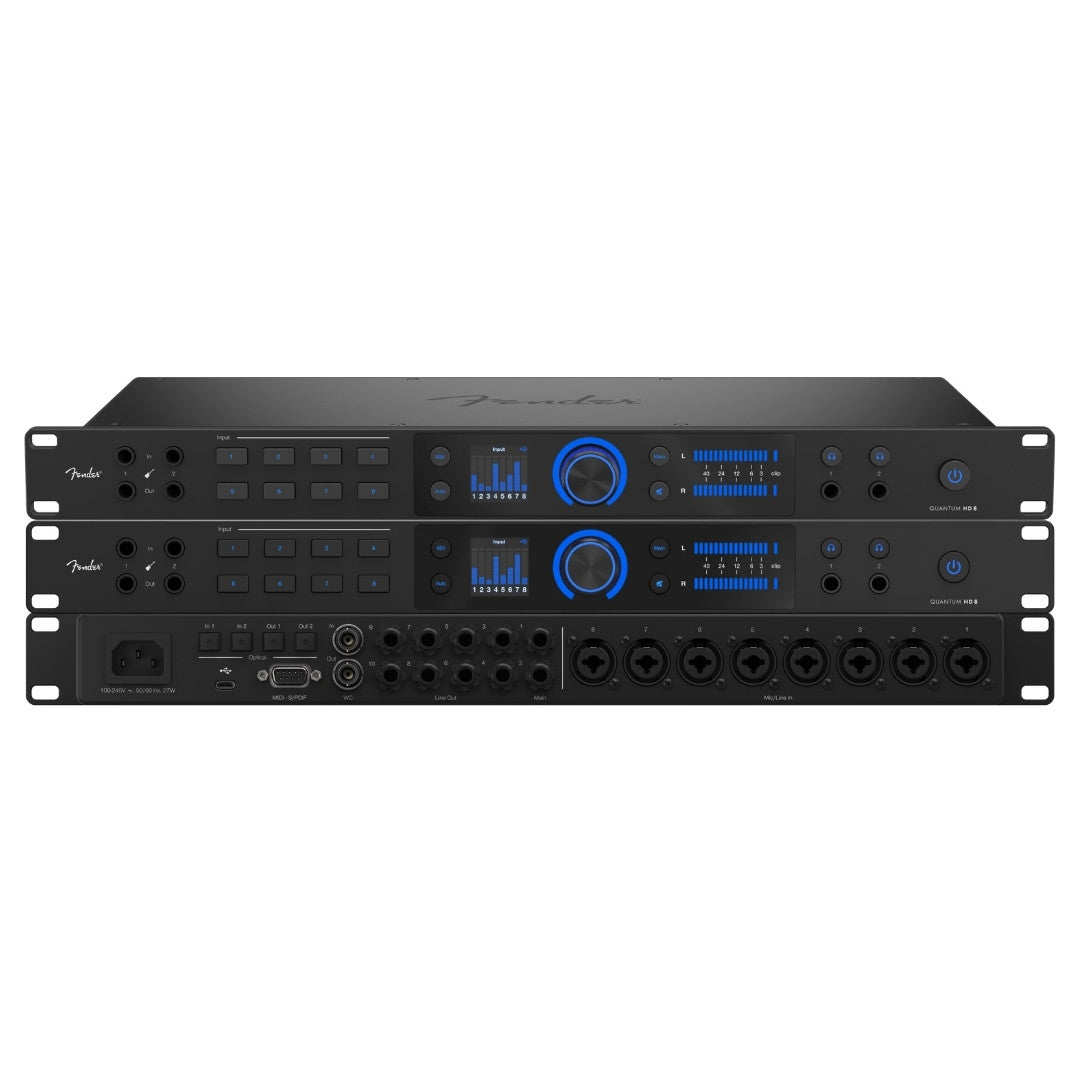

Quantum HD 8 USB-C Audio Interface
Model #: 2777700609

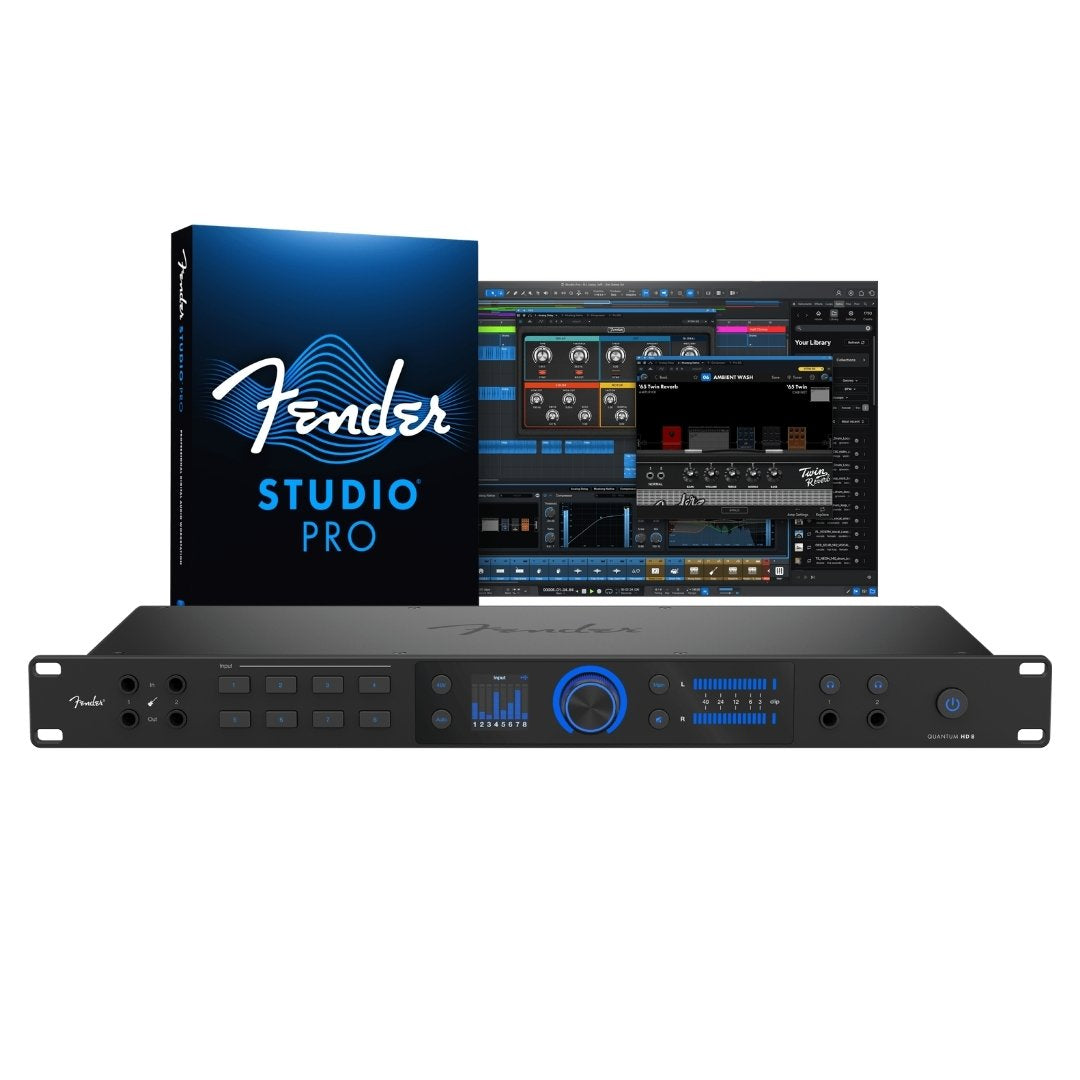

26-in/30-out, 32-bit/192kHz Rackmountable Audio Interface with 24-ch ADAT Optical I/O, Stereo S/PDIF I/O, 2 Re-amp Out, 2 Instrument In, 8 Mic/Line In, 10 x 1/4" TRS Audio Out, World Clock I/O, USB-C Port, Loopback, and Bundled Software including Studio One Pro - Mac, PC, iOS, iPadOS, Android
- 26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters
- Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode
- Front-facing Fender instrument inputs optimized for guitar and bass
General
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
1600 Ohms
Dynamic Range
116 dB (A-Weighted, Minimum Gain)
EIN
-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N
0.002% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Phantom Power
+48 VDC
Line Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
10K Ohms
Dynamic Range
118 dB (A-Weighted, Minimum Gain)
THD+N
0.001% (1 kHz, Minimum Gain)
Gain Range
± 10 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range
111 dB (A-Weighted, Minimum Gain)
THD+N
0.003% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type
1/4" TRS Female
Main Outputs
Connection Type
1/4" TRS Female
Headphone Outputs
Connection Type
Two - 1/4" TRS Female Stereo
Frequency Response
20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range
33 Ohms
Dynamic Range
118 dB (A-Weighted)
THD+N
0.001% (1 kHz)
Maximum Output Level
11 dBu (50 Ohms)
MIDI I/O
Connection Type
5-Pin Female DIN
Power
Voltage
120V
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
32-bit
Dynamic Range
124 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.7” (43.1mm)
Depth
8.6" (218 mm)
Width
19" (483mm)
Weight
6.3 lbs. (2.9 kg)
Highlights
SCALABLE STUDIO SOLUTION
Expanded I/O makes the HD 8 ideal for full-band recording and larger projects.
ULTRA-HIGH-FIDELITY AUDIO
MAX-HD preamps and 32-bit / 192 kHz converters ensure every detail is captured with precision.
FENDER INSTRUMENT INPUTS
Front-facing guitar and bass inputs deliver transparent, studio-ready recordings.
