38 Hz - 25 kHz 6,5" 116 dB
EVE Audio
EVE Audio SC 2070 Active 2-Way Midfield Professional Studio Monitor
EVE Audio SC 2070 Active 2-Way Midfield Professional Studio Monitor
Regular price
Rs. 173,118.00
Regular price
Rs. 0.00
Sale price
Rs. 173,118.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Active 2-way midfield studio monitor
SC2070
Compact monitor with an extra-large Air Motion Transformer
New standards for detailed sound reproduction
The most important features at a glance
Frequency range Woofer size Max. SPL
The SC2070
The SC2070 combines the eminent technologies of the SC3070 and the TEC Award-winning SC4070 in a compact 2-way system. The brand-new Air Motion Transformer RS7 represents a new level of innovation. RS7 has been specifically developed for SC2070 to achieve a crossover frequency at 1800Hz that is astonishingly low for a 2-way monitor. The diaphragm area is 1.5 times larger than that of the tweeter's membrane used in SC207. High and upper midrange frequencies are reproduced with unparalleled precision and resolution, revealing smallest nuances.
More than just a speaker
Even if the focus is on the sound - our monitors offer a holistic solution that is well thought out from A to Z

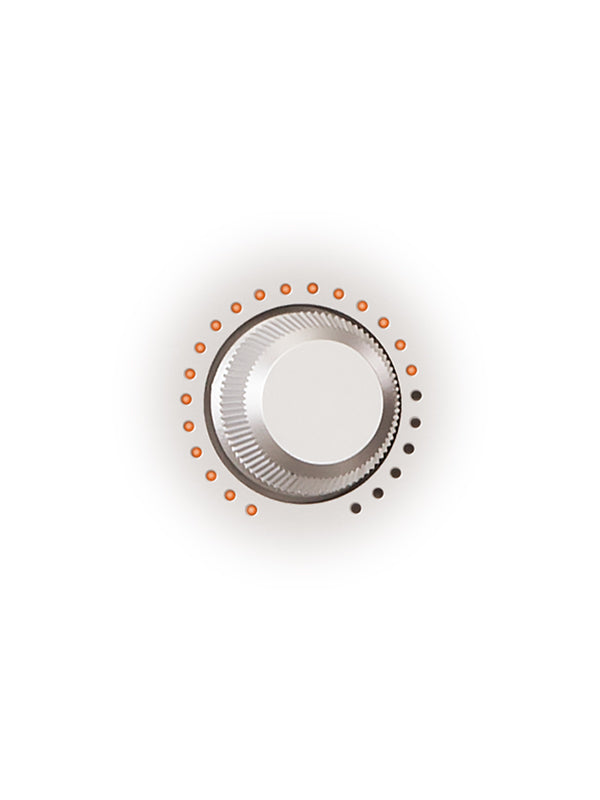

SMART-knob
Simply set and save filters & volume.
Bass-reflex design
For precise bass reproduction without background noise.
Parameter lock
Your settings are saved (even without power).
Safe Fade-In
A slow volume increase when switching on protects ears and equipment.
Engineered to the detail

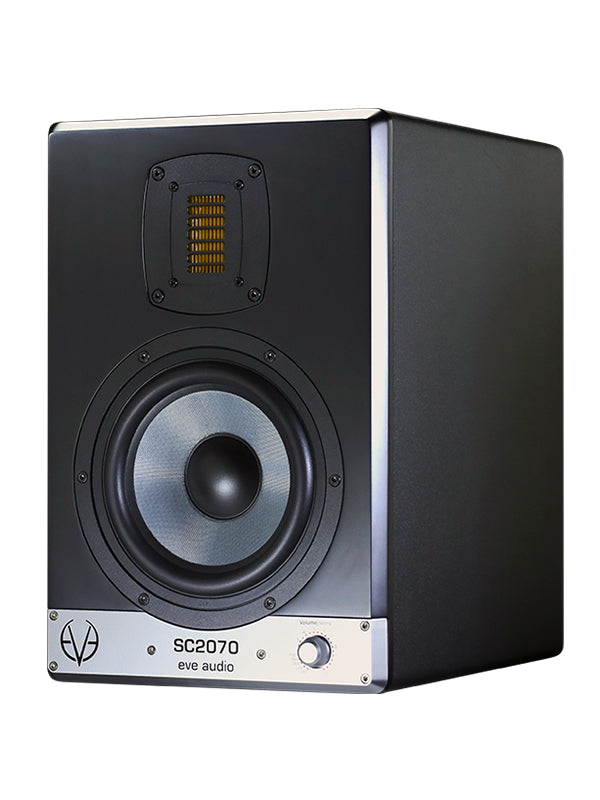

An optimised, low-resonance enclosure with a reinforced front baffle houses the Air Motion Transformer RS7 and a 6.5" SilverCone woofer, as well as the amplifier unit with a total output power of 250W. Intelligent protection mechanisms prevent the drivers from overload. The bevelled cabinet edges reduce sound diffractions.
All adjustments can be made via the SMART-knob, which is a trademark of all EVE Audio studio monitors. Thus, a variety of improvements to the respective room situations can be made in the easiest way possible from the front of the studio monitor. On the strength of the combination of these technologies, the SC2070 offers unmatched performance for its compact size with maximum impulse fidelity.
Tech Talk

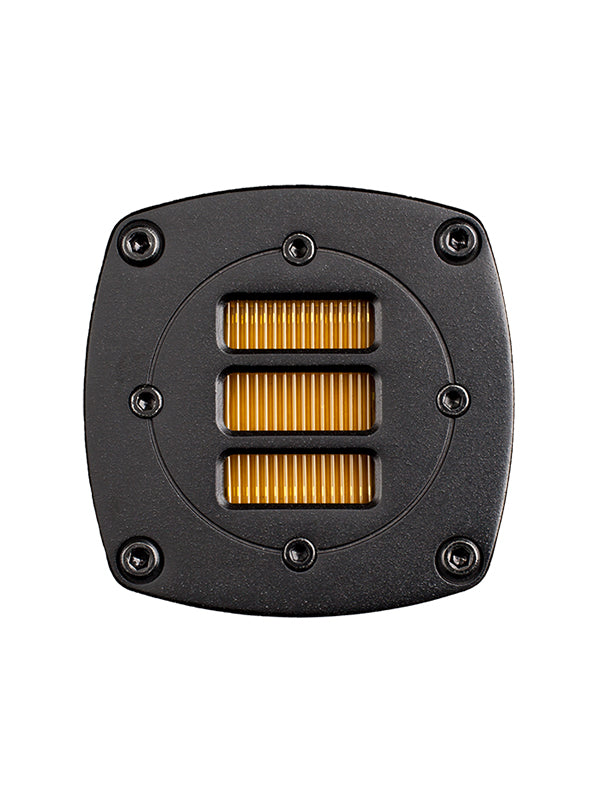

The Air Motion Transformer RS7, specially developed for SC2070, is the largest AMT used in a 2-way monitor. The diaphragm area is 1.5 times larger than that of AMT RS1, RS2, RS3 and RS3.1 used in our other models and almost as large as in AMT RS6, which is employed exclusively in our main monitors SC3010 and SC3012. With great precision and detail, the RS7 reproduces silky smooth top end down to upper midrange frequencies. With a crossover frequency set to deep 1800Hz, the midrange imaging is assured at levels like those normally found in 3-way systems.
The 6.5" SilverCone woofer is driven by an advanced, low distortion copper cap magnet system with a 1.5" voice coil. The combination of very light and extremely stiff honeycomb cone material enables this woofer to provide a solid base with low distortion and precise and dynamic bass.
Two high-quality Class D amplifiers complete the system and provide enough output power to meet the demands of modern music production. The maximum input level can be adjusted between 7dBu and 22dBu to ensure the best possible A/D converter resolution.
The Air Motion Transformer
Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.
Technical Specs
All facts and figures in detail
Dimensions
230x345x304
Width x Hight x Depth in mm
Frequency range
38 Hz - 25 kHz
-3 dB at 1 m distance
Sound pressure level
116 dB
Max. SPL per pair
Output power
250 W
Output power per speaker
Woofer size
6,5"
Diameter
Cross-over frequency
1800 Hz
Cross-over between drivers
General
Tweeter
AMT RS7
Output power tweeter
100 W
Woofer
6,5"
Output power woofer
150 W
Protection limiter
Yes
Weight
9,4 kg (20.7 lb)
Settings
Volume
- ∞ to + 6 dB
High-shelf filter (-5 dB to +3 dB)
> 3 kHz
Mid EQ (-3 dB to +3 dB)
1 kHz
Desk filter cut (-5 dB to 0 dB)
160 Hz
Desk filter boost (0 dB to +3 dB)
80 Hz
Low-shelf filter (-5 dB to +3 dB)
< 300 Hz
Adjustable LED brightness
Yes
Level-lock dip switch
Yes
Filter-lock dip switch
Yes
Input level dip switch
+7 dBu / +22 dBu

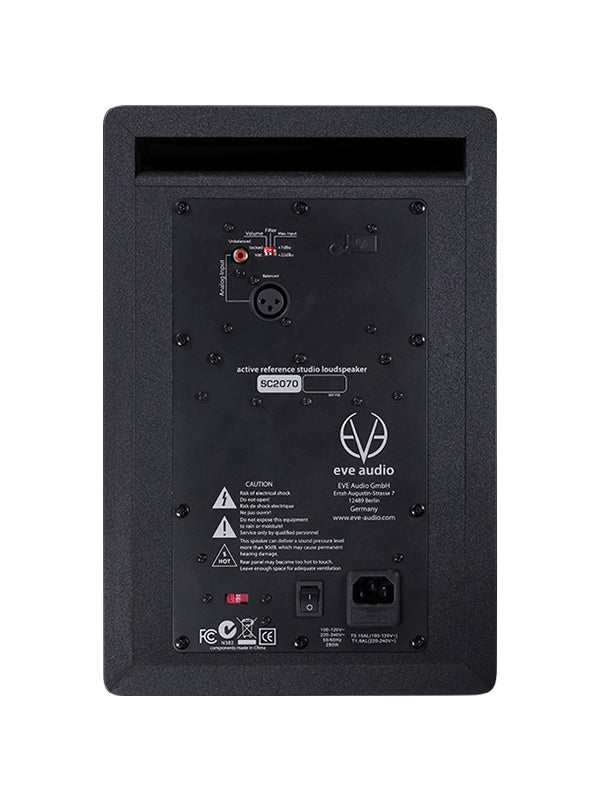

Connectors (10k impedance)
RCA in
XLR in
Power consumption
Standby
< 1 W
Maximum
170 VA
Free-field frequency response (1/6 oct.)
Red = 0° / Green = 30° horizontal off-axis
Distortion
Orange = 2nd / Green = 3rd vs frequency response (red)
Polar Pattern (1m)
Red = 200Hz / Green = 1kHz / Blue = 5kHz
