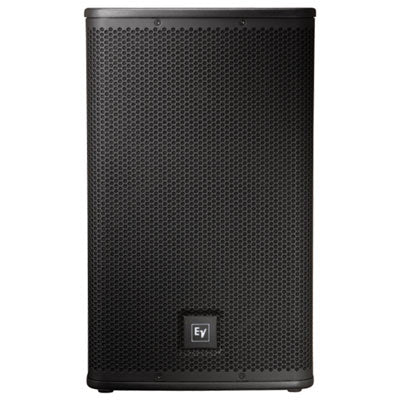

ELX112

12" passive loudspeaker

• Compact power for sound reinforcement and stage monitoring

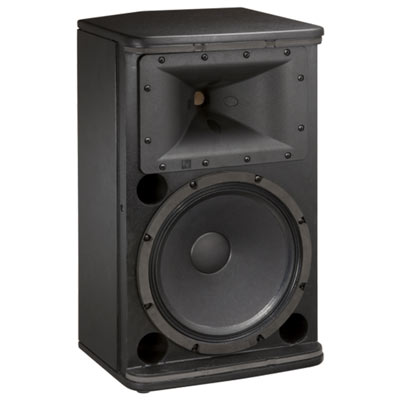

• EVS-12K woofer
• 1.5-inch DH-1K titanium HF compression driver
• 55 Hz – 20 kHz frequency range
• 90° x 50° coverage-pattern waveguide

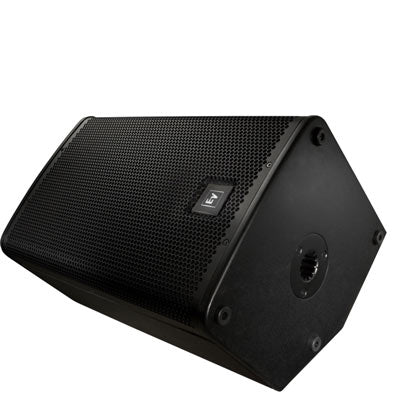

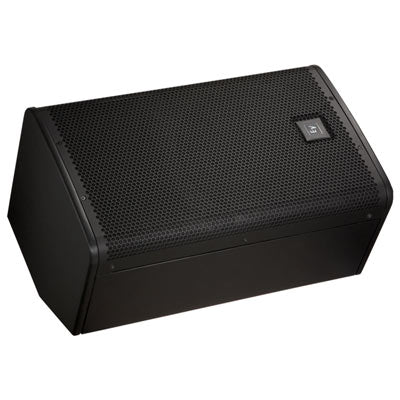

• 60° Monitor Angle
• 94 dB SPL sensitivity; 132 dB max SPL
• Power handling: 250 W continuous, 1000 W peak
• Braced 15mm plywood enclosure
• Pole mount or stack with Live X Subwoofers
• Black textured finish

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

Freq. Response (-3 dB)	82 Hz - 18 kHz¹
Freq. Range (-10 dB)	55 Hz - 20 kHz¹
Axial Sensitivity	94 dB
SPECIFICATIONS

Max. Measured SPL³	132 dB
Recommended HP Freq.	45 Hz
Coverage (Horiz. x Vert.)	90° x 50°
Power Handling	250W Continuous, 1000W Peak

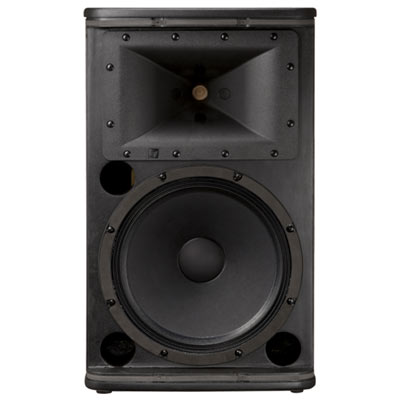

LF Transducer(s)	(1) EVS-12K, 305mm (12") Woofer
HF Transducer	DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency	2.1 kHz
Nominal Impedance	8 Ohms
Minimum Impedance	7.0 Ohms

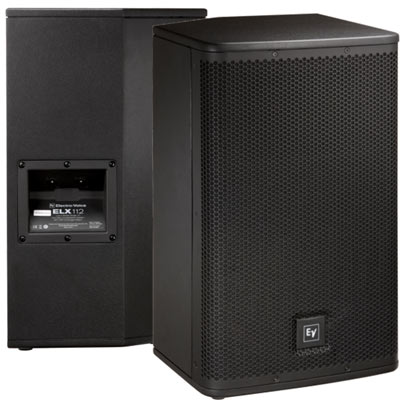

Connectors	Dual NL4
Enclosure Material	9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Grille	18GA Steel with Black Powdercoat
Dimensions (H x W x D)	607mm x 362mm x 340mm (23.89' x 14.25" x 13.41")
Net Weight	16.0 kg (35.2 lbs)
Shipping Weight	19.9 kg (43.8 lbs)
Accessories	TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand

¹ Full Space Measurement
² Half Space Measurement
³ Max SPL is measured at 1m using broadband pink noise at rated peak power rating.

RECOMMENDED AMPLIFIERS

For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX112.

	Dynacord C‑Series Two‑Channel Power Amplifiers for Fixed Install LEARN MORE	Dynacord L‑Series Two‑Channel Power Amplifiers for Live Sound LEARN MORE
Two-Channel	✔	✔
Multi-Channel
DSP	✔	✔
Direct Drive	✔	✔
OMNEO (Dante, OCA)
Installation	✔
Live Sound		✔
