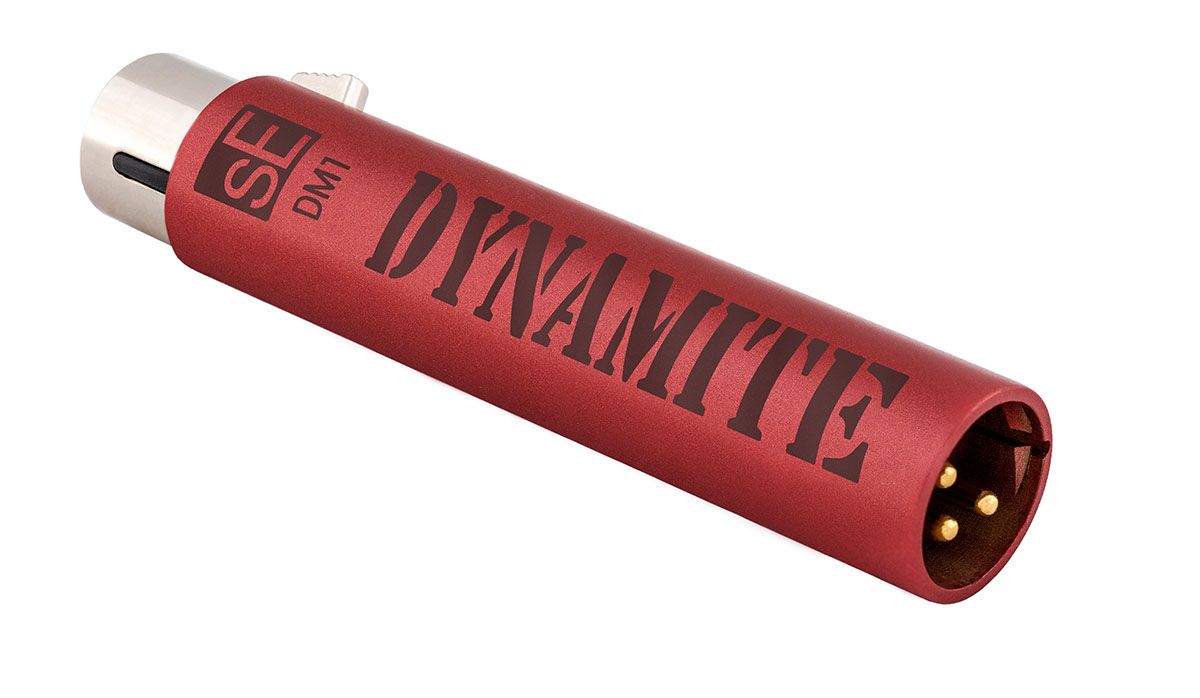

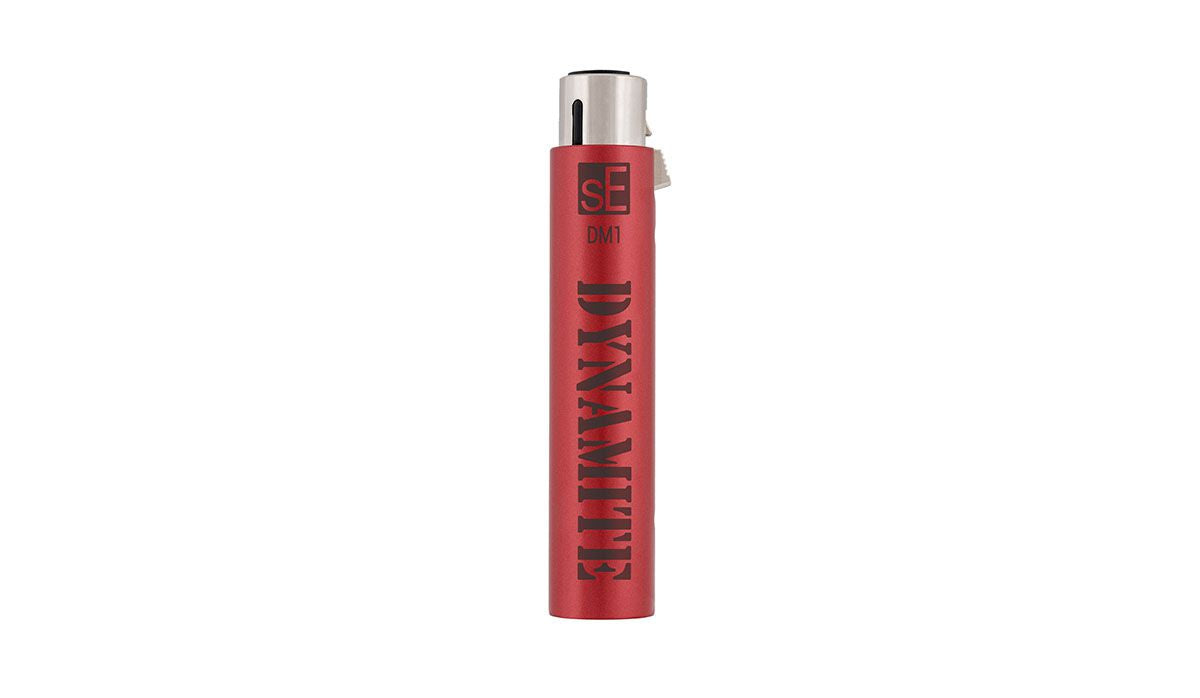

sE Electronics DM1 Dynamite 1-channel Active Inline Preamp

Active In-line Preamp for Passive Dynamic and Ribbon Mics with 28dB of Gain
ACTIVE INLINE PREAMP

DM1  DYNAMITE

The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing an impressive +28dB of clean, transparent gain for all your passive microphones.

A Secret Weapon for Your Passive Ribbon and Dynamic Mics

Active In-line Preamp for Passive Dynamic and Ribbon Mics with 28dB of Gain

• Requires passive microphone (ribbon/dynamic) and 48V phantom power
• Not for use with phantom-powered microphones (condenser microphones, active ribbon mics)
• Provides 28dB of clean, consistent gain
• Designed for neutral, balanced sound quality
• The perfect way to boost the signal of a passive microphone
• Gain stays consistent regardless of connected load
• Provides significantly improved level to your mic preamp for proper gain staging
• State-of-the-art Class A electronics and high-grade FETs provide supremely class-leading low noise
• Transformerless design for pristine sound quality
• Dedicated output buffer amplifier provides 28dB output, independent of load impedance or cable length
• Extremely low output impedance drives long cable runs and reduces susceptibility to
• RF interference, buzz, and hum
• Gold-plated XLR connector for loss-free and reliable signal connection
• Slim, roadworthy all-metal housing with premium finish provides efficient rejection of electrical interference and noise
  High-quality finish ensures a great look for many years
  Slim design allows for easy deployment onstage or in the studio

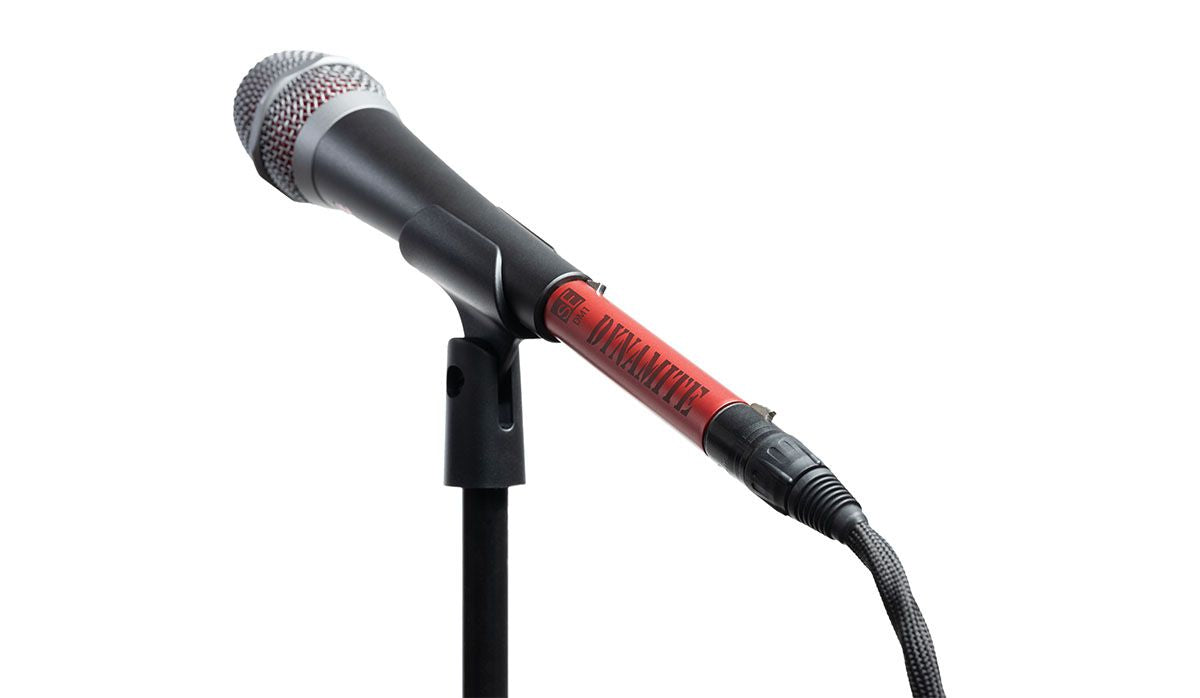

The sE Electronics DM1 Dynamite is an active in-line preamp that boosts the signal of your passive ribbon and dynamic mics by a robust 28dB. Inserted between a passive ribbon or dynamic microphone and a mic preamplifier, the DM1 will also reduce the possibility of interference, while providing a healthy level to your preamp — without any added noise or coloration. Get optimum performance from the mics you love with the sE Electronics DM1 Dynamite!

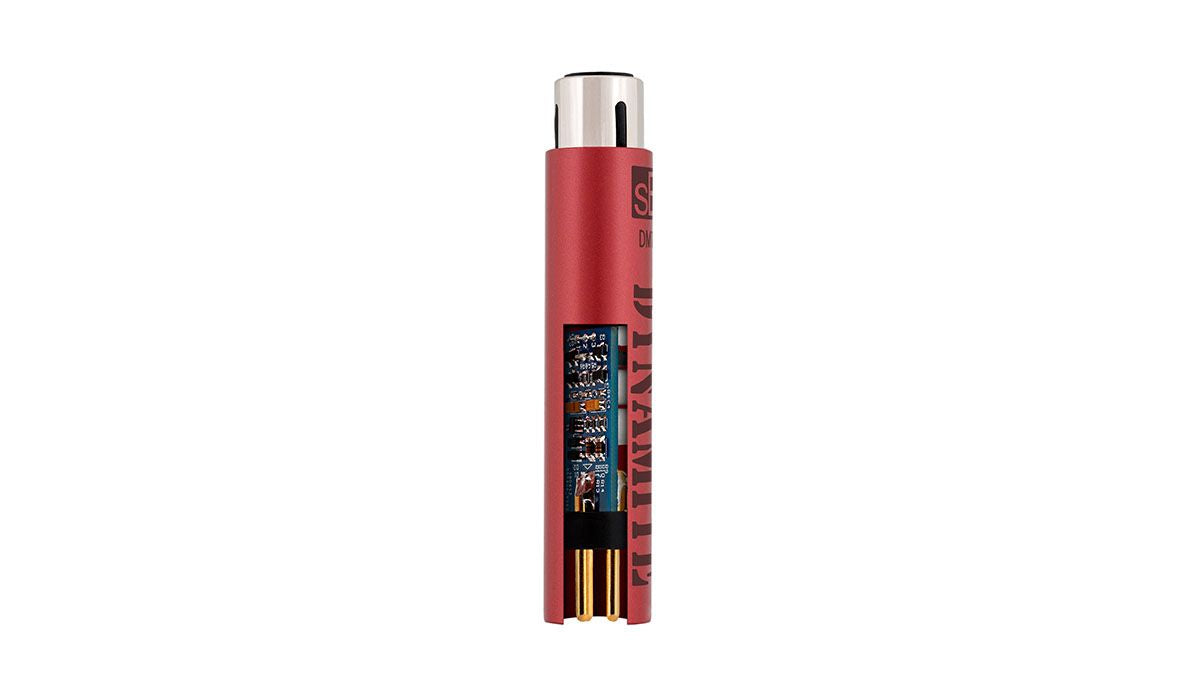

High-performance Class A design
With its state-of-the-art Class A circuit and hand-selected high-grade FETs, the DM1 boasts the lowest self-noise in its class. What’s more, thanks to its dedicated output buffer amplifier, the gain boost it delivers is always a consistent 28dB regardless of the connected load. The DM1’s output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz, and hum.

Whether you’re a podcaster, recording engineer, or running live sound, the DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

IN THE BOX
DM1
sE Logo Sticker
User manual with warranty card

SPECIFICATIONS

Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
Gain: 28 dB (load 1kOhms)
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 μV (JIS-A)
Powering: 48 Volts according toIEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight: 80 g (2.82 oz.)
