The system delivers outstanding sound pressure levels (up to 133dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproduction.

Sub 600s’ outstanding audio performance allow user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers.

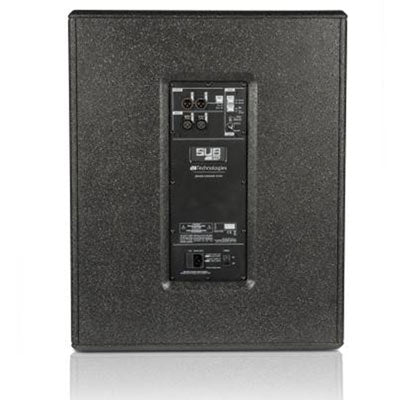

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover). Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.

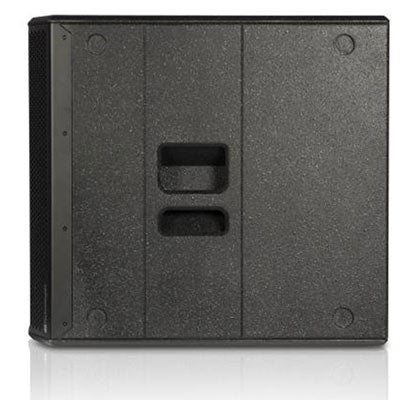

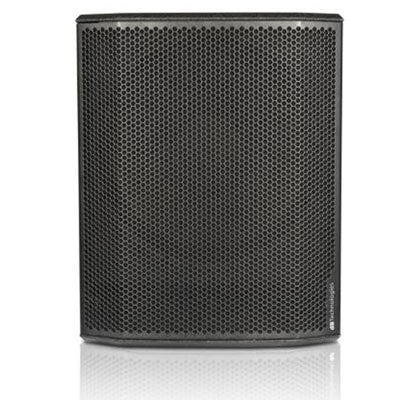

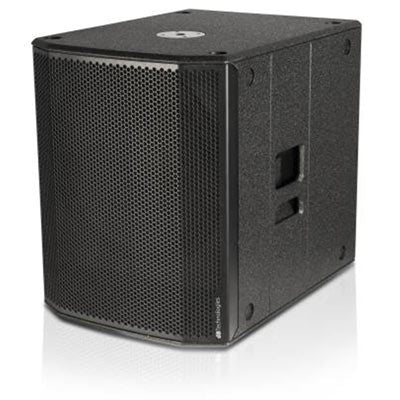

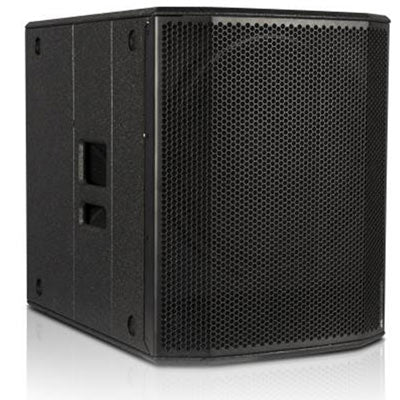

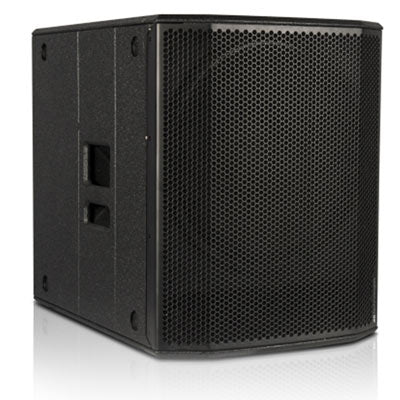

The series comes with a full grille design in a lightweight wood cabinet (total weight 31kg /68 lbs) strengthened with a hardwearing, scratch-resistant black covering. Carved side handles enhance portability. The design of the top side eases subs stacking in larger systems and features a M20 pole mount thread to stack full-range speakers.

TECH SPECS

Technical Data
Speaker Type	Active Subwoofer
Acoustical data
Frequency Response [-10dB]	35 - 130 Hz
Max SPL (1 m)	133 dB
Directivity	omnidirectional
LF	18"
LF Voice Coil	2.5"
Amplifier
Amp Technology	SMSP digital amplifier
Amp Class	Class D
Peak Power	1200 W
RMS Power	600 W
Processor
Controller	28/56 bit DSP
Limiter	Peak, Thermal, RMS
Controls	Subwoofer level, Outputs mode,
	Polarity, Subwoofer mode
Input
Signal Input	2x XLR (balanced)
Signal Output	2x XLR (balanced)
Mechanics
Housing	Plywood
Grille	Full metal grid
Pole Mount	M20
Width	500 mm (19.69 in)
Height	625 mm (24.60 in)
Depth	690 mm (27.17 in)
Weight	31.1 kg (68.57 lbs)

FEATURES

• 600 W RMS Class D AMP
• Selectable Stereo Balanced Input
• Link or Xover Balanced Stereo Output Mode
• Compact and sturdy wood cabinet
• Lightweight
• Polarity Switch
• FLAT or BOOST Mode Switch
