OVERVIEW

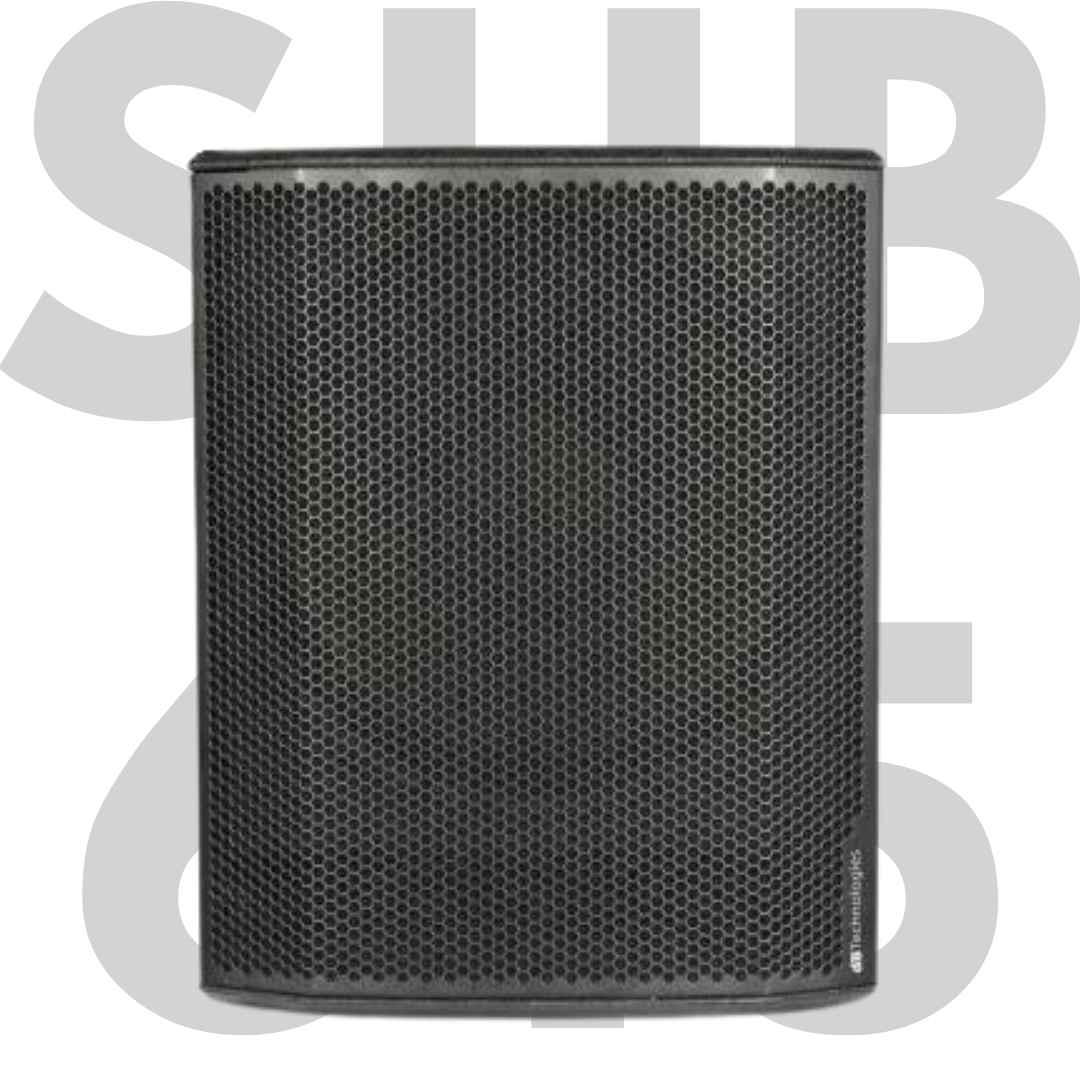

SUB615 is a bass-reflex active subwoofer featuring a 600W RMS Class D SMPS Power Amplifier and is equipped with a 15” transducer.

The system delivers outstanding sound pressure levels (up to 131dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproduction.

Sub 600s’ outstanding audio performance allow user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers.

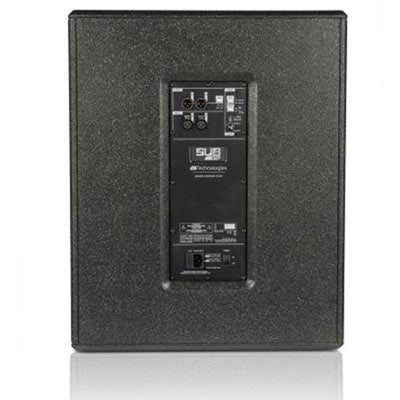

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover).

Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.

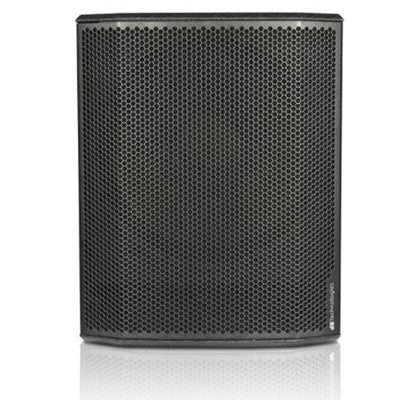

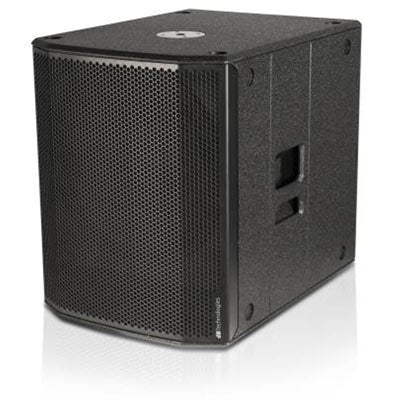

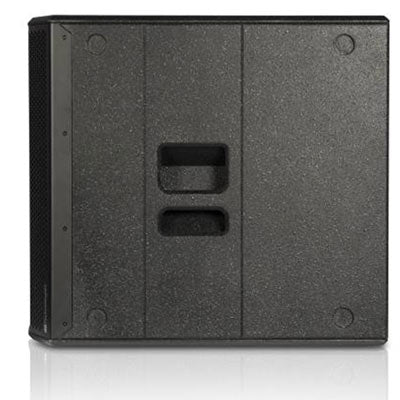

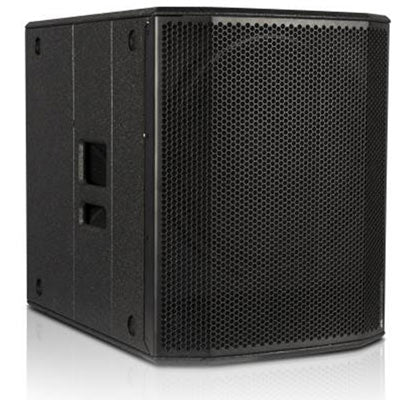

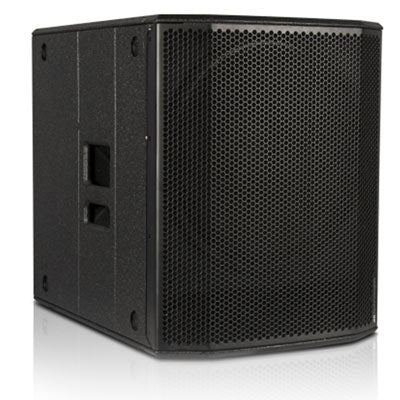

The series comes with a full grille design in a lightweight (25 kg) wood cabinet strengthened with a hardwearing, scratch-resistant black covering. Side handles enhance portability. The design of the top side eases subs stacking for larger systems and features a M20 pole mount thread to stack full-range speakers.

TECH SPECS

Technical Data
Speaker Type	Active Subwoofer
Acoustical data
Frequency Response [-10dB]	42 - 124 Hz
Max SPL (1 m)	131 dB
Directivity	omnidirectional
LF	15"
LF Voice Coil	2.5"
Amplifier
Amp Technology	SMSP digital amplifier
Amp Class	Class D
Peak Power	1200 W
RMS Power	600 W
Processor
Controller	28/56 bit DSP
Limiter	Peak, Thermal, RMS
Controls	Subwoofer level, Outputs mode,
	Polarity, Subwoofer mode
Input
Signal Input	2x XLR (balanced)
Signal Output	2x XLR (balanced)
Mechanics
Housing	Plywood
Grille	Full metal grid
Pole Mount	M20
Width	430 mm (16.92 in)
Height	580 mm (22.83 in)
Depth	600 mm (23.62 in)
Weight	25.5 kg (56.22 lbs)

FEATURES

• 600 W RMS Class D AMP
• Selectable Stereo Balanced Input
• Link or Xover Balanced Stereo Output Mode
• Compact and sturdy wood cabinet
• Lightweight
• Polarity Switch
• FLAT or BOOST Mode Switch
