OVERVIEW

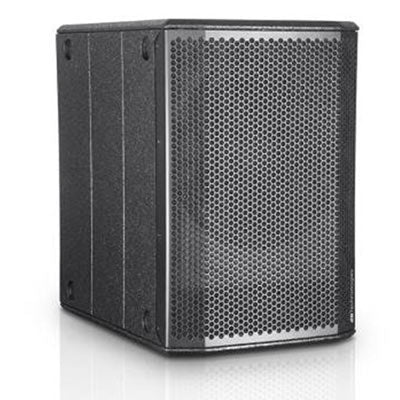

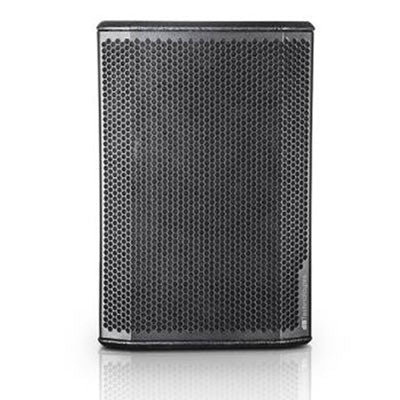

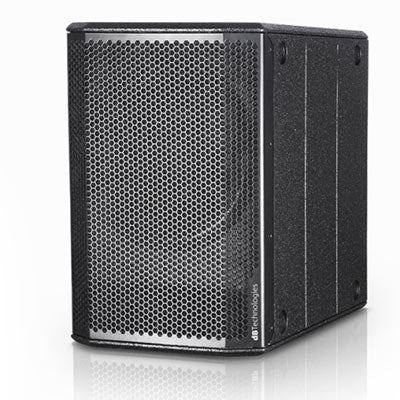

Just like 15” and 18” models of the family, bass-reflex SUB 612 features a 600W RMS Class-D Power Amplifier with SMPS, delivers outstanding sound pressure levels (up to 129 dB) in spite of a very compact housing (only 19.8 Kg -43,65 lbs) and provides an impressively precise low-end reproduction.

Sub 600s’ remarkable audio performance allows user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to separate balanced X-Over signal feeds to left and right speakers.

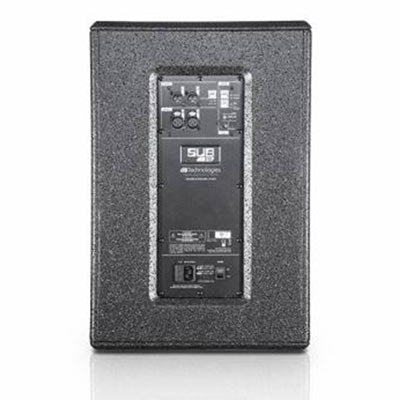

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or X-Over).  Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub BOOST Mode switch.

TECH SPECS

Technical Data
Speaker Type	Active Subwoofer
Acoustical data
Frequency Response [-10dB]	46 - 123 Hz
Max SPL (1 m)	129 dB
Directivity	omnidirectional
LF	12”
LF Voice Coil	2.5"
Amplifier
Amp Technology	SMSP digital amplifier
Amp Class	Class D
Peak Power	1200 W
RMS Power	600 W
Processor
Controller	DSP 28/56 Bit
Limiter	Peak, Thermal, RMS
Controls	1x Subwoofer attenuation Control
	1x Flat/Boosted switch
	1x Switch output mode
	1x Polarity switch
Input
Signal Input	2x XLR (balanced)
Signal Output	2x XLR (balanced)
Mechanics
Housing	Black painted Plywood
Handles	Full metal grid

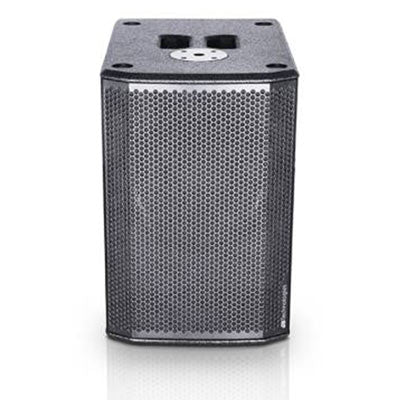

Pole Mount	M20
Width	360 mm (14.72 in)
Height	550 mm (21.65 in)
Depth	525 mm (20.67 in)
Weight	19.8 Kg (43.65 lbs)

FEATURES

• 600 W RMS CLASS-D AMPLIFIER
• STEREO BALANCED INPUT
• LINK OR X-OVER BALANCED STEREO OUTPUT MODE
• COMPACT AND STURDY WOOD CABINET
• LIGHTWEIGHT
• POLARITY INVERSION SWITCH
• FLAT OR BOOST EQ MODE SWITCH


ACCESSORIES

GSA-IGA

GSA-IG

DS 2

TC S618
