dB Technologies KL Series KL10 400W 2-Way Active Speaker

2-WAY ACTIVE SPEAKER

400W PEAK AMPLIFIER

MAX SPL 125 dB

FREQUENCY RESPONSE [-10dB]: 55 - 18.000 Hz

HF: 1x 1", 1" v.c.

LF: 1x 10", 2" v.c.

WEIGHT: 11.7 kg (25.79 lbs)

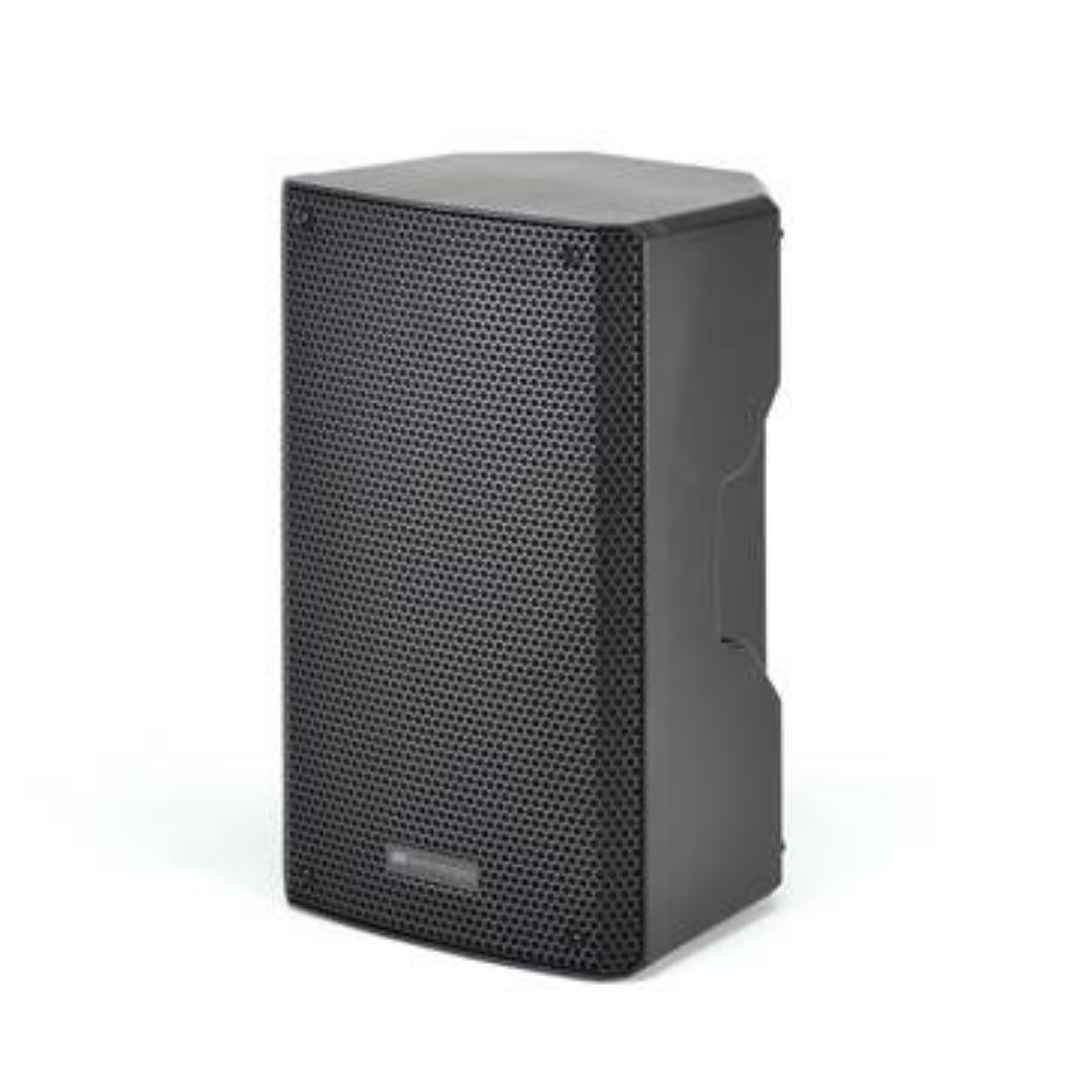

KL 10 is a 2-way active speaker equipped with one 10” woofer and one 1” compression driver (1” voice coil).

The system is driven by a powerful and efficient 400 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

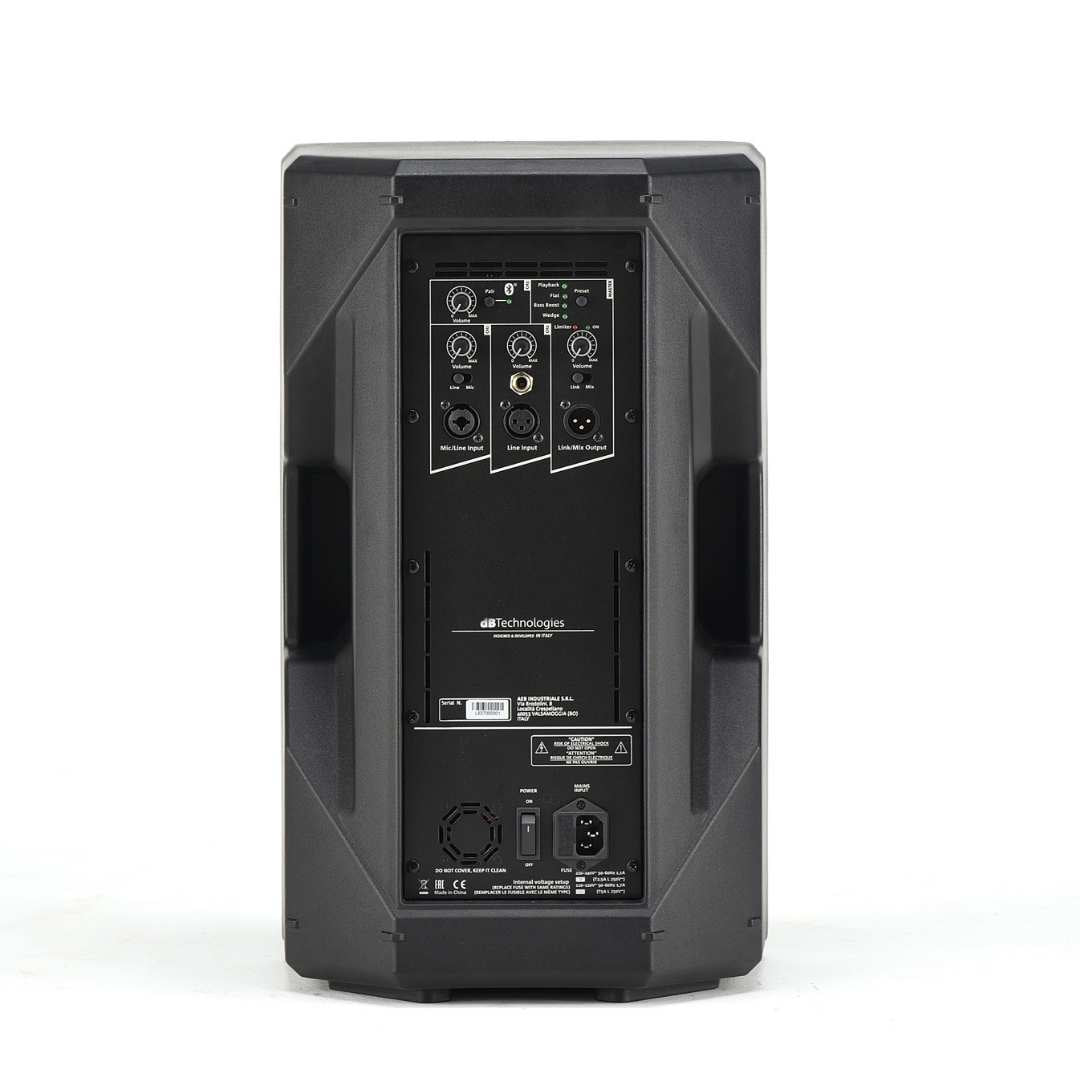

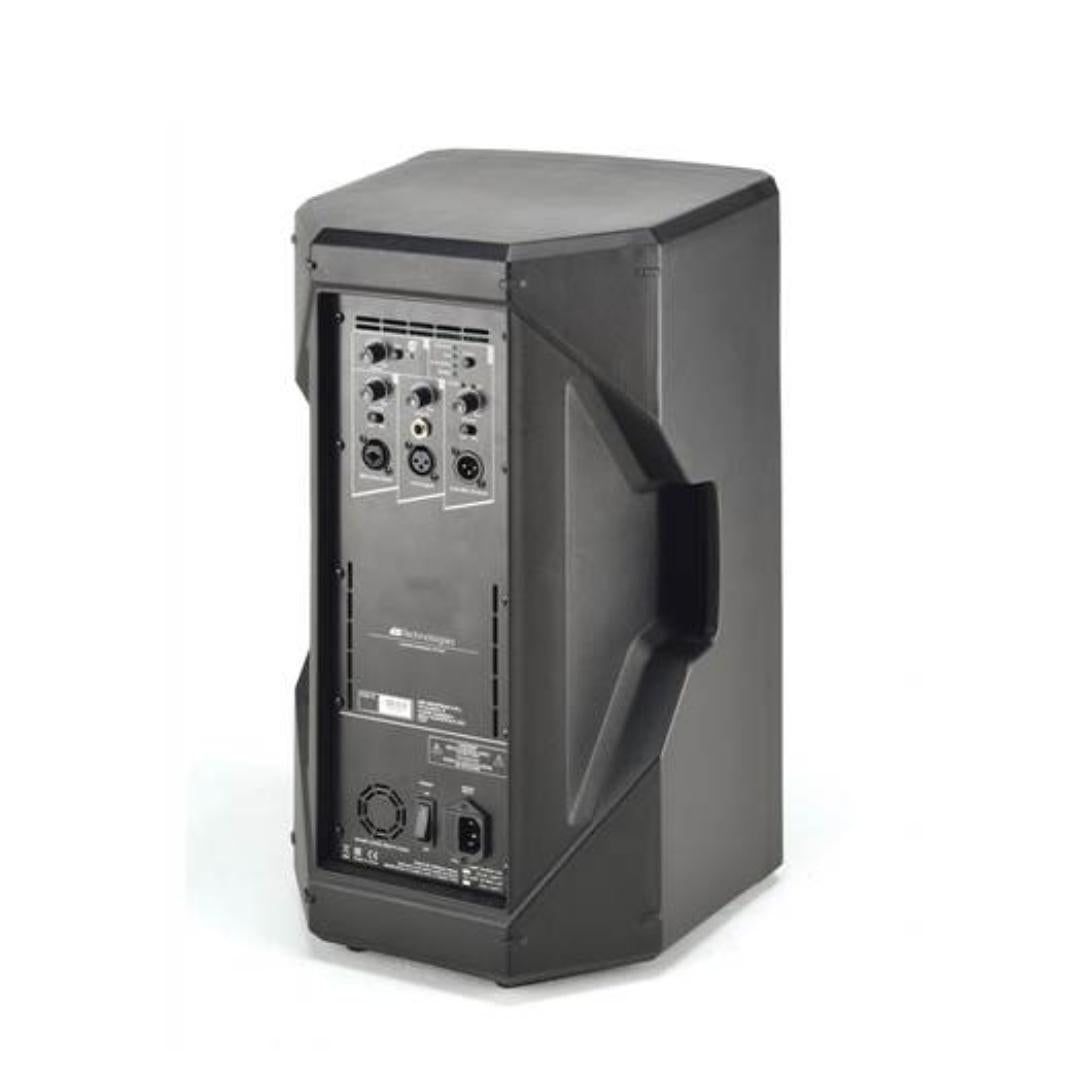

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.

A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.

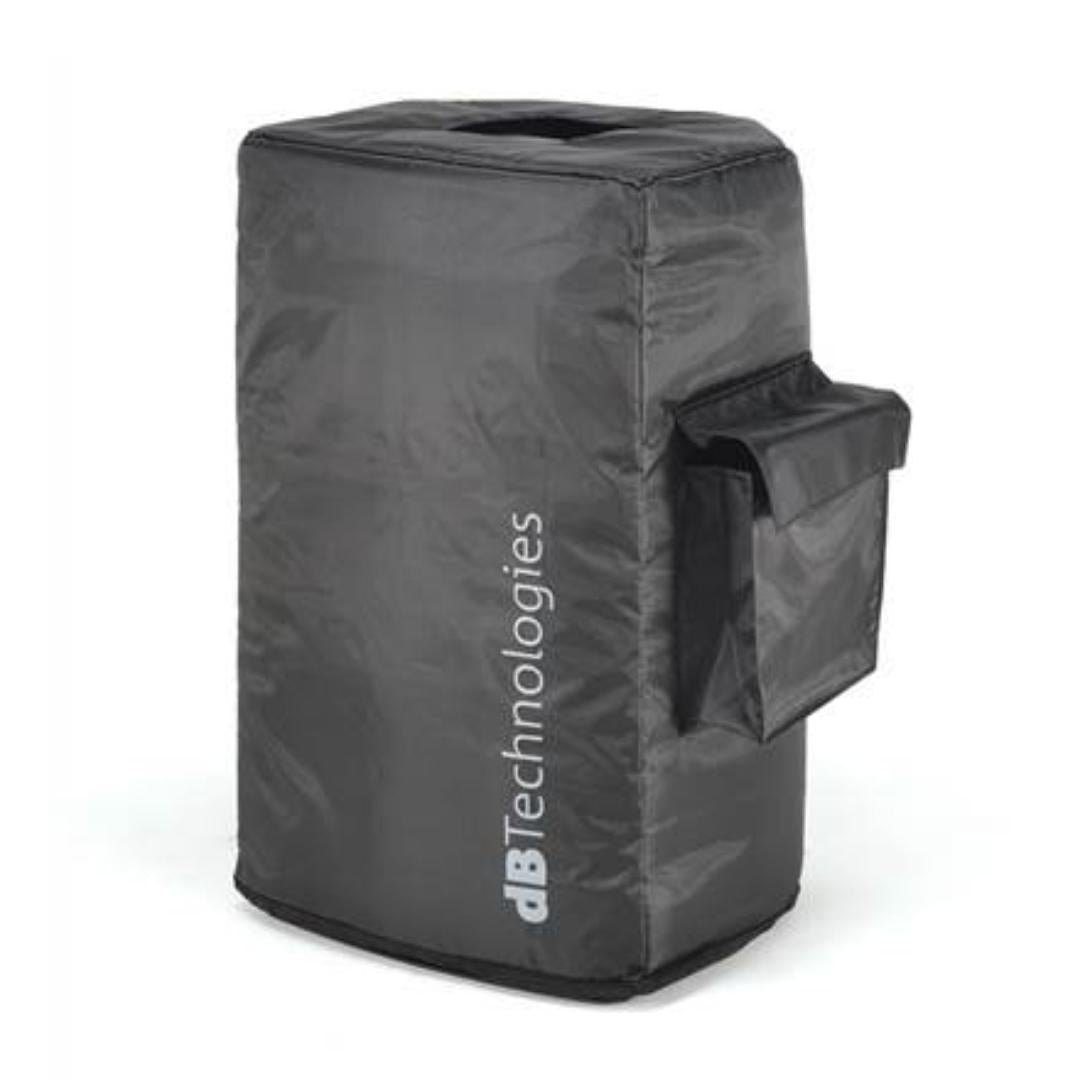

KL comes with its soft cover equipped with a pocket specially designed for cable storage.
