dB Technologies

dB Technologies KL Series KL 15 800W 2-Way Active Speaker

dB Technologies KL Series KL 15 800W 2-Way Active Speaker

Regular price Rs. 75,200.00
Regular price Sale price Rs. 75,200.00
Sale Sold out
Tax included. Shipping calculated at checkout.
KL 15
KL series aims to enhance usability and versatility in dBTechnologies’ 2-way active speaker series: combining efficiency to a professional sound performance, KL systems feature Bluetooth¼ connection, 3 INPUT channels, impressive SPLs and a powerful DSP where linear phase FIR filters ensure the most accurate sound reproduction.

KL 15

OVERVIEW

KL 15 is a 2-way active speaker equipped a 15” woofer and 1” compression driver (1.35 voice coil).
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

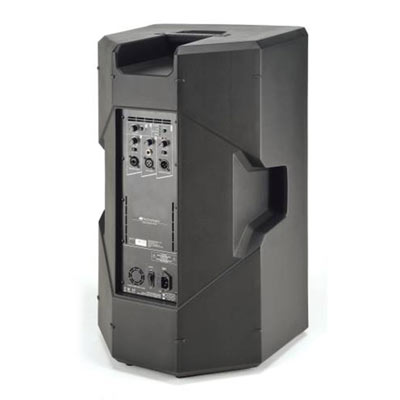

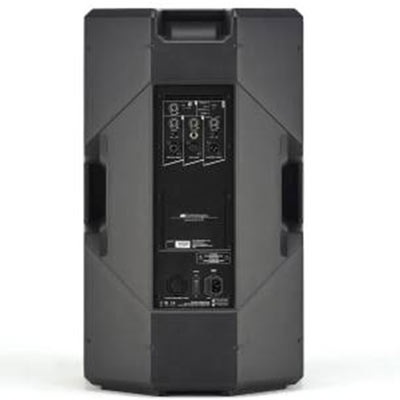

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via BluetoothÂź connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).
The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.

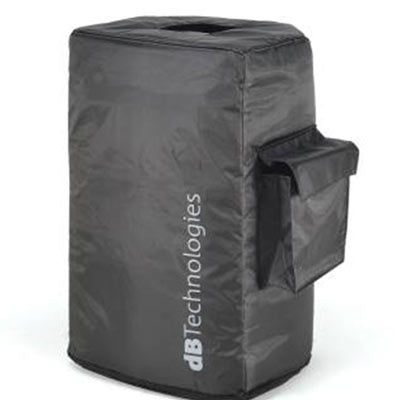

KL comes with its soft cover equipped with a pocket specially designed for cable storage.

TECH SPECS

Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 48 - 18.000 Hz
Max SPL (1 m) 128 dB
HF 1" CD, 1.35"v.c
LF 15", 2.5" v.c.
Dispersion 90°x60°
Crossover Frequency 1800 Hz (24 dB/oct.)

Amplifier
Amp Technology Class D(LF)+Class AB (HF)
Peak Power 800 W

Processor
Controls 1xVolume, 1xslide switch mic/line
Indicators power on/signal/limiter LEDs
Controller DSP 20/56 bit
AD/DA Converter 24 bit/ 48 Hz
Systems Presets Playback, Flat, Bass Boost, Wedge
Limiter Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters

Input
Signal Input 1x Combo(XLR/Jack)
  Mic/Line
  1xXLR/TRS
Bluetooth Input 1xBluetooth receiver
SIGNAL Output 1xXLR Male (LINK/MIX)

Mechanics
Housing Polypropylene
Handles 3 (2 on side 1 on top)
Angles Up Monitor Use 45°
Pole Mount 36 mm, double positioning
Width 430 mm (16.92 in)
Height 722 mm (28.44 in)
Depth 402 mm (15.82 in)
Weight 19.3 kg (42.54 lbs)



FEATURES

  • Active 2-way speakers
  • BluetoothÂźconnection
  • 3 Channel IN
  • 1 link OUT with link/mix switch
  • Linear Phase FIR Filters for accurate sound reproduction
  • DSP presets for wide versatility
  • Soft cover included
