dB Technologies FMX Series FMX 12 2-Way 1200W Active Coaxial Stage Monitor
dB Technologies FMX Series FMX 12 2-Way 1200W Active Coaxial Stage Monitor
Couldn't load pickup availability
Flexsys FMX12
FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.
The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.
In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.
Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

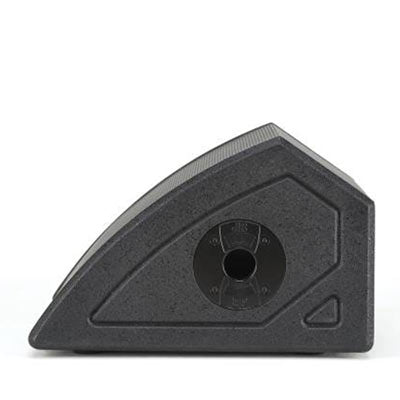

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
TECH SPECS
|
Technical Data
|
|
|
Speaker Type
|
2-Way Active Coaxial Stage Monitor
|
|
Acoustical data
|
|
|
Frequency Response [- 10 dB]
|
57 - 19.000 Hz
|
|
Max SPL
|
128 dB
|
|
HF
|
1", 1.3" v.c.
|
|
Directivity
|
60°X90°
|
|
Horn
|
Rotatable
|
|
LF
|
12", 2" v.c.
|
|
Amplifier
|
|
|
Amp Class
|
Class D
|
|
Peak Power
|
1200 W
|
|
Processor
|
|
|
Controller
|
DSP 28/56 bit
|
|
AD/DA Converter
|
24 bit/48 kHz
|
|
System Presets
|
8 presets
|
|
Limiter
|
Peak, RMS, Thermal
|
|
Advanced DSP Function
|
FIR Filters
|
|
Crossover Frequency
|
1740 Hz
|
|
Slope LF/HF
|
24 dB/oct
|
|
Mechanics
|
|
|
Housing
|
Plywood
|
|
Housing Design
|
Multifunctional
|
|
Handles
|
1 integrated on bottom side
|
|
Pole mount
|
36 mm
|
|
Width
|
465 mm (18.30 in)
|
|
Height
|
297 mm (11.69 in)
|
|
Depth
|
444 mm (17.48 in)
|
|
Weight
|
13.9 kg (30.6 lbs)
|
- Active 2-way stage monitor
- Coaxial configuration
- Linear phase FIR Filters
- Ultra-precise directivity
- Rotatable horn (90°x60° or 60°x90° dispersion)
- Front-rear grille design
- Integrated handle on bottom side
