Charvel

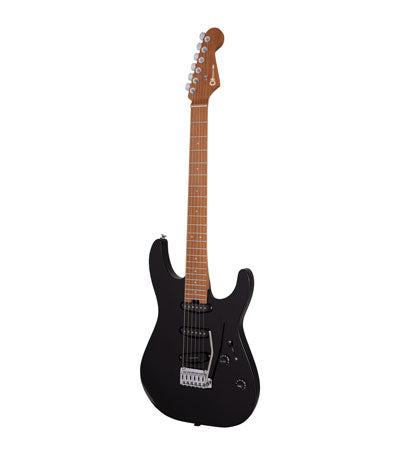

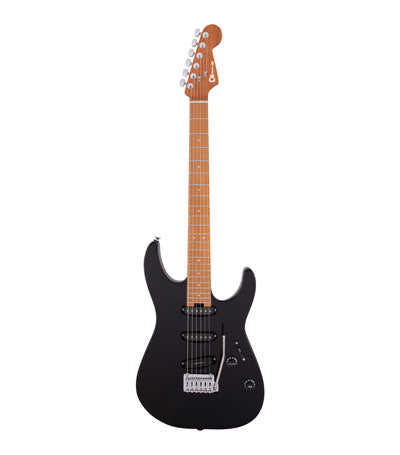

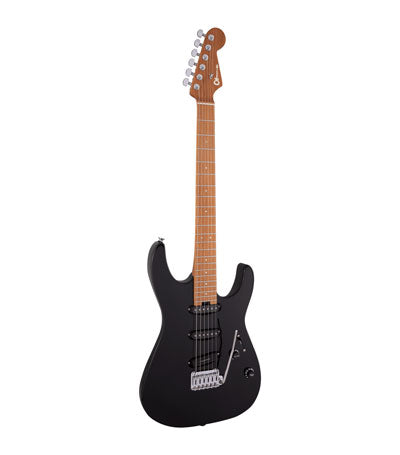

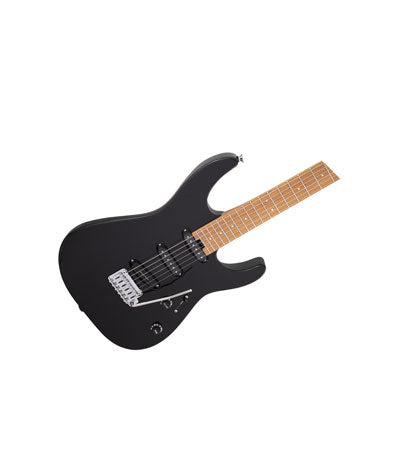

Charvel PRO-MOD DK22 SSS 2PT CM Gloss Black Electric Guitar
Charvel PRO-MOD DK22 SSS 2PT CM Gloss Black Electric Guitar
Couldn't load pickup availability
CharvelĀ® continues to up the ante for modern high performance combined with standout style and full-spectrum tone with the Pro-Mod DK22 SSS 2PT CM, a sleek new instrument designed especially for a new breed of player whose musical vision and versatility knows no boundaries.
OVERVIEWĀFeaturing a sculpted shredder's cut heel and scalloped lower back bout for comfortable and unencumbered upper fret access, the DinkyĀ® alder body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The baked neck has a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, LuminlayĀ® side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Designed for high-speed playing, its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 22 jumbo frets, pearloid dot inlays and Graph TechĀ® TUSQĀ® XL nut.
Routed for an SSS pickup configuration, this axe combines a Seymour DuncanĀ® Custom Hot RailsĀ® StratĀ® SHR-1B humbucking bridge pickup, Seymour Duncan Custom Flat Strat SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup for plenty of glassy, vintage-style timbre with classic Strat chime.
The Pro-Mod DK22 SSS 2PT CM hosts other premium modern features including a five-way blade pickup switch, StratocasterĀ®-style skirt knobs for the volume (500K EVHĀ® BournsĀ® low friction potentiometer) and no-load tone controls, GotohĀ® Custom 510 tremolo bridge, die-cast tuners and more.
Designed with head-turning style, the all-new DK22 SSS 2PT CM is available in Electric Blue, Gloss Black and Pharaohs Gold with chrome hardware. The Gloss Black model features matte black pickup bobbins and black control knobs, while the Electric Blue and Pharaohs Gold models feature matte parchment pickup bobbins and parchment knobs.
SPECSĀ
GENERAL
| Model Number | 2969026503 |
|---|---|
| Series | Pro-ModĀ |
| Color | Gloss BlackĀ |
| Number of Strings | 6Ā |
| Orientation | Right-HandĀ |
ELECTRONICS
| Bridge Pickup | Seymour DuncanĀ® Custom Hot RailsĀ® StratĀ® SHR-1B |
|---|---|
| Middle Pickup | Custom Seymour DuncanĀ® Flat StratĀ® SSL-6 Single-Coil |
| Neck Pickup | Custom Seymour DuncanĀ® Flat StratĀ® SSL-6 RWRP Single-Coil |
| Pickup Color | Flat Black |
| Controls | Volume (500K EVHĀ® BournsĀ® Low Friction Pot), No-Load Tone |
| Pickup Switching | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup |
| Pickup Configuration | SSSĀ |
BODY
| Body Finish | Gloss |
|---|---|
| Body Shape | DinkyĀ®Ā |
| Body Material | AlderĀ |
HARDWARE
| Bridge | GotohĀ® Custom 510 TremoloĀ |
|---|---|
| Hardware Finish | ChromeĀ |
| Tremolo Arm | GotohĀ® |

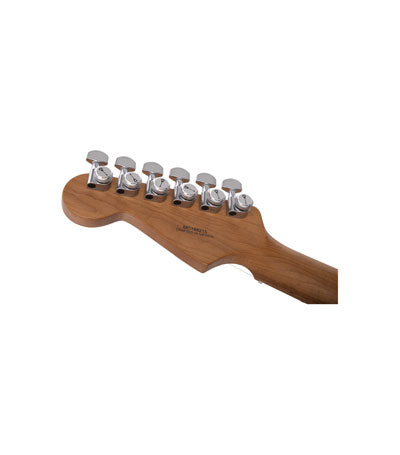

| Tuning Machines | CharvelĀ®-Branded Die-Cast Locking |
| Pickguard | None |
| Control Knobs | StratocasterĀ®-Style Skirt |
| Switch Tip | Black |
| Saddle Height Wrench | Yes |
NECK
| Neck Material | Caramelized MapleĀ |
|---|---|
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | Speed Neck with Rolled Fingerboard Edges |
| Neck Binding | None - Rolled Fingerboard Edges |
| Scale Length | 25.5" (64.77 cm)Ā |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Caramelized MapleĀ |
| Number of Frets | 22 |
| Fret Size | Jumbo |
| Nut Material | Graph Tech TUSQ XL |
| Nut Width | 1.6875" (42.86 mm) |
| Position Inlays | 4mm Pearloid Dot |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| String Trees | FenderĀ® Standard String Guide |

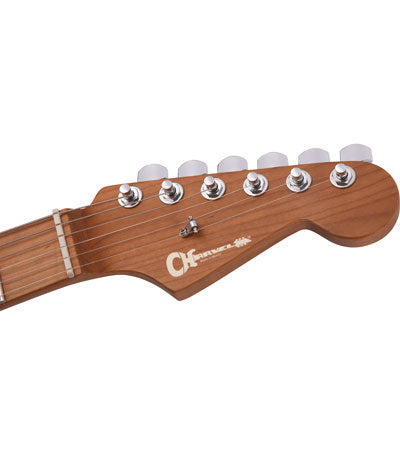

| Headstock | Licensed FenderĀ® StratocasterĀ® |
| Neck Plate | None - 4-Bolt Sculpted Heel |
MISCELLANEOUS
| Strings | Nickel Plated Steel (.009-.042 Gauges) |
|---|---|
| Strap Buttons | Standard |
| Case/Gig Bag | Optional CharvelĀ® Hardshell (p/n 009-0915-000); Optional Gig Bag (p/n 007-6756-000) |
| Other Features | LuminlayĀ® Side Dots |
PICKUP SWITCHINGĀ
GALLERY
