Black Lion Audio AUTEURMK2500 - Mic Preamp/DI

The Auteur MKII 500 is a single channel, 500 series preamp that features phantom power, phase, a 13dBu pad, and a Hi-Z input.

The Auteur MKII 500 is one of the most “bang for your buck” 500-series preamps in existence! You get all of the sound of the 1⁄2 rack version, but with the addition of a Hi-Z input! It features an ultra-fast input stage that captures lots of detail and nuance, and a signal path transformer that adds some “beef” on the way out. Once you hear the Auteur MKII 500, you’ll want to load your 500 rack full of ‘em!

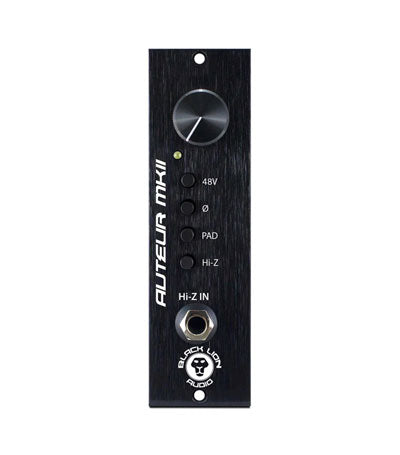

FRONT

1. GAIN: clockwise rotation yields an increase in input signal amplitude, counterclockwise rotation yields a decrease in input signal amplitude
2. 48v: engage to turn phantom power on, disengage to turn phantom power off
3. PHASE (Ø): engage to adjust input signal polarity by 180°, disengage to leave input signal polarity unchanged
4. PAD: engage to reduce input signal amplitude by 13dBu, disengage to leave input signal amplitude unchanged
5. Hi-Z: engage to use front panel Hi-Z IN as preamp source, disengage to use 500 rack XLR input as preamp source

FEATURES

• 500 Series format (500 series rack required)
• Single Channel
• Ultra High-Speed Input Stage
• Edcor Output Transformer
• 67dB Gain
• Phantom Power
• Phase Switch
• 13dBu Pad
• Hi-Z Input

SPECS

Mic Section

• Max Microphone Input Level: +1dBu
• Input Impedance: 6000Ω
• Pad: 13dBu
• Gain (no pad): +16dB to +67dB
• Equivalent Input Noise (noise floor): -108dBu
• THD+N (@ +4dBu output):
• .0046% @ +12dBu Gain
• .0064% @ +24dBu Gain
• .012% @ +32dBu Gain
• .028% @ +40dBu Gain
• .085% @ +50dBu Gain
• .3% @ +62dBu Gain
• Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz

D.I. Section

• Max D.I. Input Level: +18dBu
• Input Impedance Balanced: 2.2MΩ
• Input Impedance Unbalanced: 1.1MΩ
• Pad: 13dBu
• Gain: +16dB to +67dB
• Equivalent Input Noise (noise floor): -82dB
• THD+N (@ +4dBu output):
• .007% @ +12dBu
• .11% @ +40dBu
• Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz

Output Section

• Max Output Level: +28dBu
• Output Impedance: 600Ω

Power Supply

• +/- 15v from 500 series rack

Product Dimensions

• 1.5” x 6.5” x 5.25”

Product Weight

• .8 lbs

Shipping Dimensions

• 13” x 13” x 5”

Shipping Weight

• 3 lbs
