Zoom B1X FOUR Bass Multi-Effects Processor

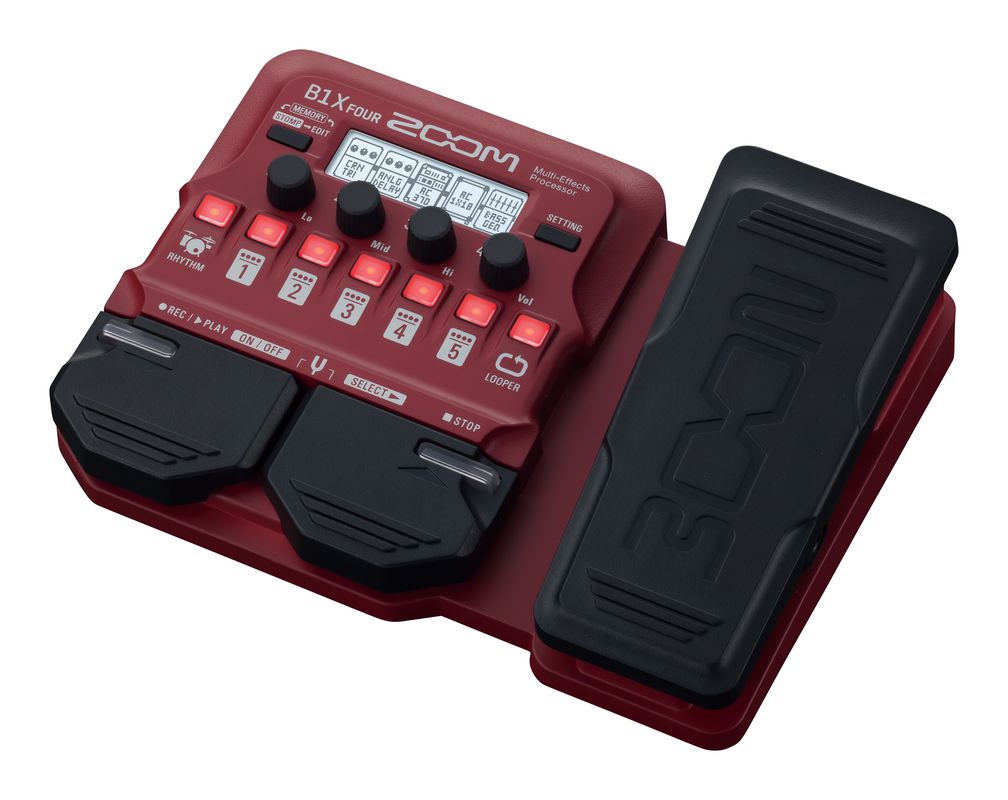

Zoom B1X FOUR Bass Multi-Effects Processor

Regular price Rs. 10,178.00
Regular price Sale price Rs. 10,178.00
Sale Sold out
Tax included.

ZOOM B1 FOUR / B1X FOUR
BIGGER, BOLDER BASS

BASS MULTI-EFFECTS PEDALS

The Zoom B1 FOUR and B1X FOUR take your low-end to new heights with over 70 effects and amp models, looper and a built-in rhythm section. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects.

WATCH THE VIDEO
SPECS&DETAILS

B1 FOUR / B1X FOUR FEATURES

‚óŹ B1 FOUR offers over 60 built-in effects
‚óŹ B1X FOUR offers over 70 built-in effects
‚óŹ 9 amp models for simulating classic rigs
‚óŹ Up to 5 effects can be used simultaneously, chained together in any order
‚óŹ Built-in expression pedal for control over any parameter (B1X FOUR only)
‚óŹ Looper for recording up to 30 seconds / 64 beats of CD-quality audio
‚óŹ ZOOM Guitar Lab software for creating, editing and managing effects and patches
‚óŹ 68 built-in rhythm patterns which can be used in conjunction with the Looper
‚óŹ 50 memory locations for storing user-created patches
‚óŹ Auto Save function for automatic saving of all patch parameters
‚óŹ PRESELECT function allows silent patch selection while the current patch remains operational
‚óŹ Onboard chromatic tuner
‚óŹ Input jack accepts standard mono bass guitar cable (both active and passive instruments supported)
‚óŹ Auxiliary input jack for connection of personal music players
‚óŹ Output jack for connection to amp or headphones
‚óŹ Lightweight and small enough to fit in your gig bag
‚óŹ Easily integrated into any existing pedal board
‚óŹ Runs on 4 AA batteries, with alkaline battery life of 18 hours
‚óŹ USB port for firmware updates, power and connection to ZOOM Guitar¬†Lab

SPECS

General Specifications

MAXIMUM NUMBER OF SIMULTANEOUS EFFECT 5
USER PATCHES 50
SAMPLING FREQUENCY 44.1 kHz
A/D CONVERSION 24-bit, 128√ó oversampling
D/A CONVERSION 24-bit, 128√ó oversampling
SIGNAL PROCESSING 32‚ąíbit
DISPLAY 128x32 dot matrix LCD

INPUT

INPUT Standard mono phone jack | Rated input level: -20 dB | Input impedance (line): 470 kő©
AUX IN Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kő©

OUTPUT

Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +2 dBu (10 kő© or more output impedance)
Headphones 17 mW + 17 mW (32ő© load)

Additional Specifications

INPUT S/N 120 dB
NOISE FLOOR (RESIDUAL NOISE) -97 dBu
POWER AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB Connector: USB2.0 Micro-B
Guitar Lab | Standard: USB 1.1 Full Speed
Supported cable: USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONS B1 FOUR‚Ä® | Height: 156 mm (D) √ó 130 mm (W) √ó 42 mm (H) | Weight: 340 g (excluding batteries)
B1X FOUR‚Ä® | Height: 156 mm (D) √ó 216 mm (W) √ó 52 mm (H) | Weight: 610 g (excluding batteries)
*Note: 0 dBu = 0.775 V

X IS FOR XPRESSION

For added control, the B1X FOUR features an expression pedal that can adjust effects, such as volume, wah, delay and pitch.




BEYOND THE BASS-ICS

Craft your signature sound with more than 60 traditional and
boutique effects, such as octaver, bass synth and fuzz.

CLASSIC AMPS

Recreate your on-stage sound with 9 classic amps and cabinets like Fender, Ampeg, Aguilar and more*.


*NOTE: Manufacturer names and product names are trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with ZOOM.


YOU’LL LOVE OUR FREE GUITAR LAB SOFTWARE

ZOOM Guitar Lab offers an endless world of patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment with endless combinations.

YOUR NEW RHYTHM SECTION

Play your bass to 68 different drum patterns! The B1 FOUR series offers a built-in drum machine with a variety of rhythm patterns in 4/4, 3/4 and more.



LOOP YOURSELF IN

Lay down a bassline up to 30 seconds, and then endlessly overdub your performance to build a dynamic, multi-part arrangement.

WE’VE GOT YOUR BACK(UP)

Turn on the auto save function and your patches and level settings will be instantly backed up as you create them.


LIVE PERFORMING

Use either of 2 performance modes to seamlessly switch up patches and effects during live shows. PRESELECT mode lets you jump from patch to patch without affecting your current sound, while STOMP mode lets you turn individual effects on and off.

Carlitos del Puerto, Bassist | Zoom Creator

A MORE HANDS-ON APPROACH

Pick your pedal up off the floor for desktop use and easily dial in tones and settings to the exact levels you need.

POWER OPTIONS

The B1 FOUR/B1X FOUR can operate with four AA batteries. You can also use an optional Zoom AD-16 AC adapter or run your pedal via USB bus power.


HOW WILL YOU SET THE TONE?


WHAT’S IN THE BOX

HERE'S WHAT COMES INCLUDED:

  • B1 Four or B1X Four Bass Multi-Effects¬†Processor
  • Quick¬†Guide
  • Bass Patch¬†List
